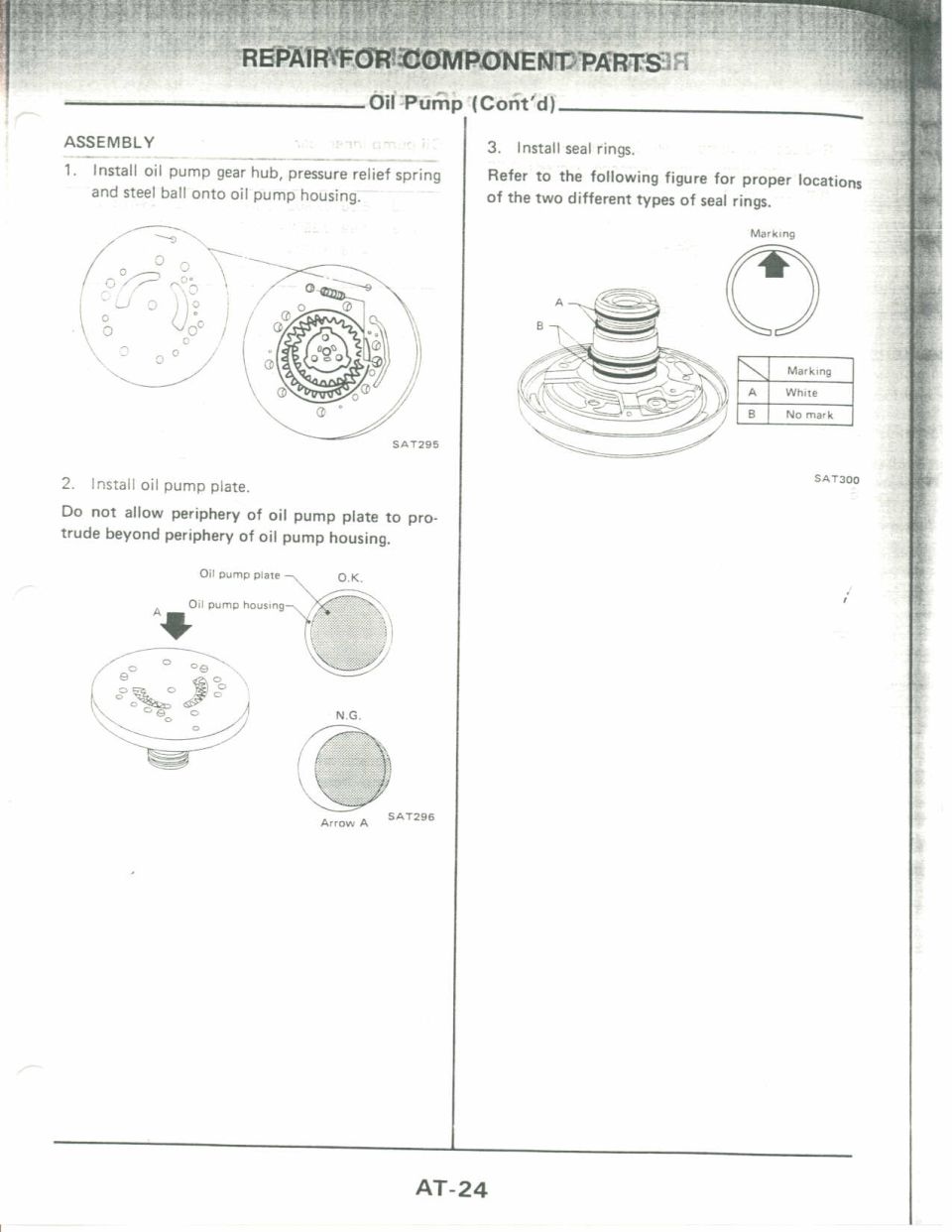

Service manual page AT-24 with oil pump assembly diagrams

Service manual page AT-24 with oil pump assembly diagrams
Service manual page AT-24 with oil pump assembly diagramsOriginal file
Service manual page AT-24 with oil pump assembly diagrams

87 Service ManualView all 403

Nissan automatic transmission disassembly manual page AT-17 with step diagrams Automatic transaxle disassembly steps: lock washer, idler gear bolt, front cover bolts, output shaft, seal bus Disassembly page with exploded breakdown of internal gears, carriers, clutches, snap rings and thrust bearings Service manual page AT-20 showing automatic transmission disassembly steps with diagrams Service manual page AT-21 showing automatic transmission disassembly steps 28 through 31 Service manual page on oil pump repair with diagrams and part tables Oil pump exploded diagram with gears, housing, plate, seal rings, thrust washer plus clearance inspection figu Service manual page AT-24 with oil pump assembly diagrams Exploded diagram of automatic transaxle control valve body identifying each valve, spring, plug and separator Service manual page on automatic transmission control valve body with spring chart and disassembly diagrams Control valve body cleaning and assembly notes with valve body photos and separator plate inspection figures Service manual page AT-28 on automatic transaxle control valve body assembly and adjustment High-reverse clutch exploded diagram with piston, springs, plates, snap rings plus disassembly figures Service manual page AT-30 showing illustrated high-reverse clutch drum reassembly steps Service manual page AT-31 on high-reverse clutch clearance with retainer plate part table Forward clutch exploded diagram with piston, springs, drive and driven plates, snap rings plus service notes 403photos in this albumView all

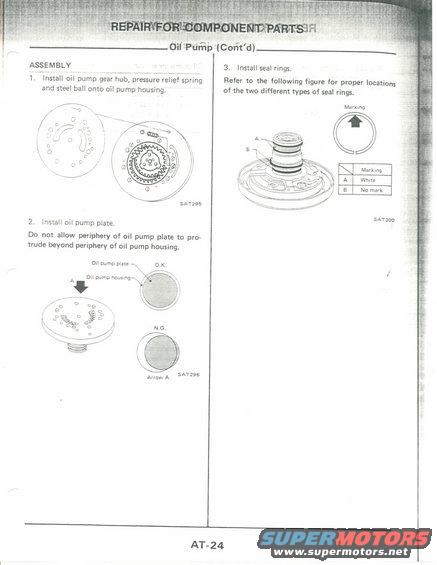

A scanned automotive service-manual page titled 'REPAIR FOR COMPONENT PARTS: Oil Pump (Cont'd),' page AT-24, showing line-drawing diagrams for assembling an automatic-transmission oil pump gear hub, pump plate and seal rings. Figures are labeled SAT295, SAT296 and SAT300.

AI caption · Photo 206 of 412

ASSEMBLY lilnstall oil pump gear hub, pressure relief spring and steel ball onto oil pump housing, / N SAT295 2. Install oil pump plane. Do not allow periphery of oil pump plate to pro- trude beyond periphery of oil pump housing. Oil pump Dlme smzas Arrow A climb '(Cot'd) 3 Install seal rings. Refer to the following figure ior proper location; of the two different types of seal rings. Marking Marking A Whlll E No mark SATSOD AT-24 R
