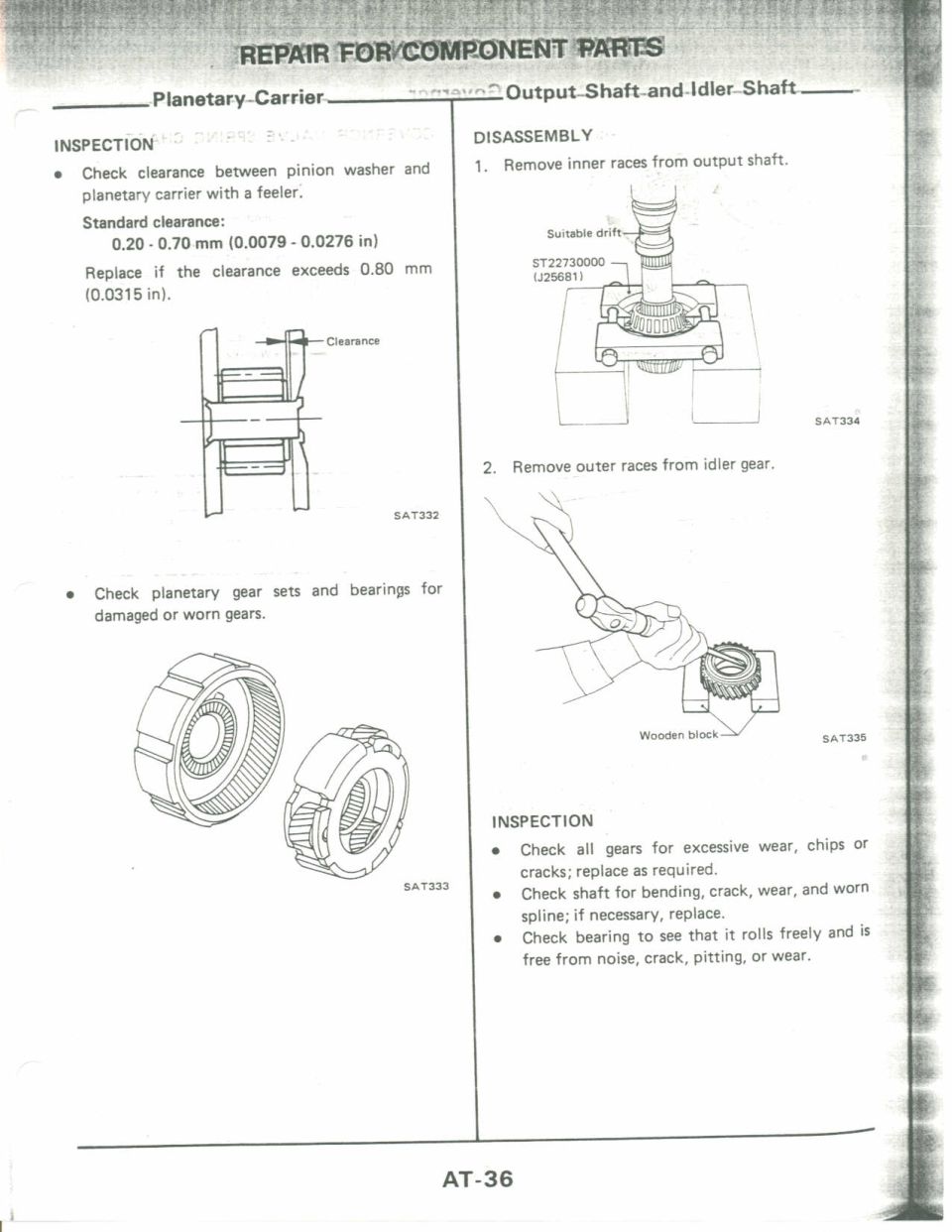

Service manual page AT-36 on transmission planetary carrier insp…

Planetary. W- aandelspShan Carrier " ".=_"0utpu INSPECTION DISASSEMBLY I Check clearance between pinion washer and 1. Remove inner races from output shaft. planetary carrier with a feeler. Standard clearance: 0.20 - 0.70 mm (0.0079 - 0.0276 in) Replace if the clearance exceeds 0.30 mm (0.0315 in). Clnnnce I damaged or worn gears. SAraza SAYJIH Check planetary gear sets and bearings for Suinble mm , ST22730000 (J25681 l i s A1134 2. Remove outer races from idler gear. sA'rass INSPECTION Check all gears for excessive wear, chips or cracks; replace as required. 0 Check shaft for bending, crack, wear, and worn spline; if necessary, replace. I Check bearing to see that it rolls freely and is free from noise, crack, pitting, or wear. AT-36
