What is the side gear to pinion mate gear clearance specification?

0 - 0.3 mm (0 - 0.012 in). Measure the clearance referring to the "Inspection" section and adjust if necessary.

How is the pinion mate shaft lock pin installed?

Install the pinion mate shaft lock pin using a punch, and make sure that the lock pin is flush with the case.

What precaution should be taken when inserting the pinion mate shaft?

When inserting the pinion mate shaft, be careful not to damage the pinion mate washers.

What is done to the final gear bolts before installing the final gear?

Apply locking sealer to the final gear bolts, then install the final gear.

Where do I find the correct side gear thrust washer selection?

The document says to refer to S.D.S. (Service Data and Specifications) for the side gear thrust washer.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/252967

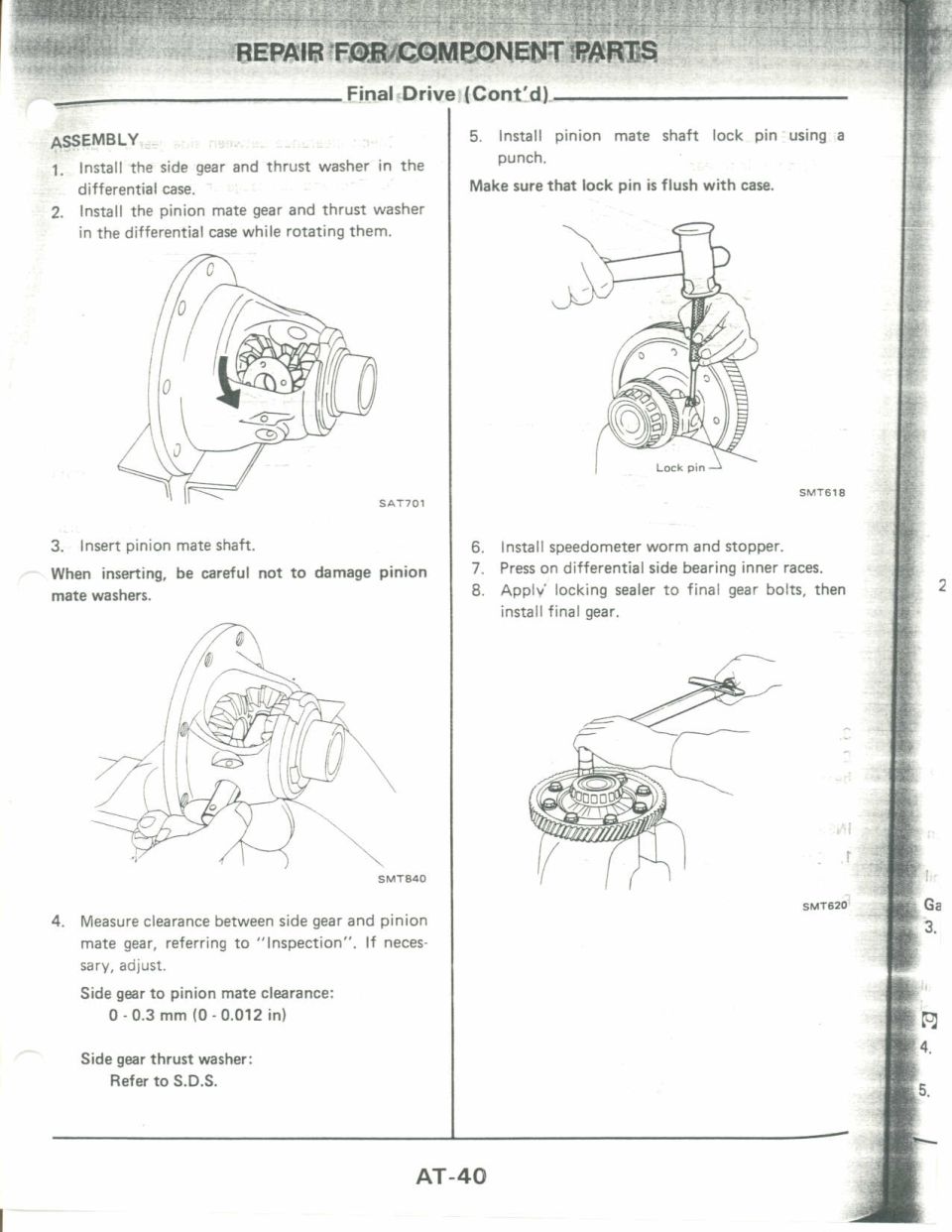

Nissan Micra AT Final Drive Differential Assembly Procedure - Page AT-40

Final drive assembly steps: install side gear, pinion mate shaft, lock pin, speedometer worm and final gear

‹ ›

Service manual page AT-40 with step-by-step final drive and differential assembly illustrations.

AI caption October 2005 · Photo 222 of 412

This is page AT-40 of a Nissan factory service manual, from the Automatic Transaxle (AT) section under "Repair for Component Parts – Final Drive (Cont'd)". It covers the ASSEMBLY procedure for the final drive differential. The eight-step procedure instructs the technician to: install the side gear and thrust washer in the differential case; install the pinion mate gear and thrust washer while rotating them; insert the pinion mate shaft (taking care not to damage the pinion mate washers); measure the clearance between the side gear and pinion mate gear per the Inspection section, adjusting if necessary; install the pinion mate shaft lock pin with a punch, ensuring the lock pin is flush with the case; install the speedometer worm and stopper; press on the differential side bearing inner races; and apply locking sealer to the final gear bolts before installing the final gear. A key specification is given: side gear to pinion mate clearance of 0 – 0.3 mm (0 – 0.012 in); side gear thrust washer selection is referenced to S.D.S. Four illustrations (figure codes SAT701, SMT840, SMT618, SMT620) show gear installation, shaft insertion, lock pin installation, and final gear bolt tightening.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the side gear to pinion mate gear clearance specification?: 0 - 0.3 mm (0 - 0.012 in). Measure the clearance referring to the "Inspection" section and adjust if necessary.
How is the pinion mate shaft lock pin installed?: Install the pinion mate shaft lock pin using a punch, and make sure that the lock pin is flush with the case.
What precaution should be taken when inserting the pinion mate shaft?: When inserting the pinion mate shaft, be careful not to damage the pinion mate washers.
What is done to the final gear bolts before installing the final gear?: Apply locking sealer to the final gear bolts, then install the final gear.
Where do I find the correct side gear thrust washer selection?: The document says to refer to S.D.S. (Service Data and Specifications) for the side gear thrust washer.
