Service manual page AT-43 on differential side bearing preload a…

Service manual page AT-43 on differential side bearing preload adjustment with tool diagrams.
Service manual page AT-43 on differential side bearing preload adjustment with tool diagrams.Original file
Service manual page AT-43 on differential side bearing preload adjustment with tool diagrams.

87 Service ManualView all 403

Service manual page AT-36 on transmission planetary carrier inspection and output shaft disassembly Service manual page AT-37 showing transaxle output shaft and bearing retainer procedures Bearing retainer assembly steps: press seal and O-ring into place, install inner race with shim, cross-section Final drive disassembly and inspection: pinion mate shaft, side bearing races, side gear clearance Final drive assembly steps: install side gear, pinion mate shaft, lock pin, speedometer worm and final gear Differential side bearing preload adjustment Type A with converter housing bolt torque Differential side bearing preload adjustment Type A and Type B with preload spec Service manual page AT-43 on differential side bearing preload adjustment with tool diagrams. Differential side bearing assembly cutaway and exploded layout of needle bearings, races and thrust washers la Transmission assembly manual page AT-45 with photos and diagrams Transmission assembly manual page AT-46 with diagrams and photos of internal components. Assembly steps: install sun gear, low/reverse brake plates, measure clearance, one-way clutch, with retainer p Automatic transmission assembly steps with diagrams and photos under ASSEMBLY heading Automatic transaxle assembly: output shaft bearing preload and idler bearing preload adjustment ASSEMBLY page showing output-shaft end-play adjustment steps using gauging tools Output shaft end play adjusting shim chart and converter housing assembly procedure 403photos in this albumView all

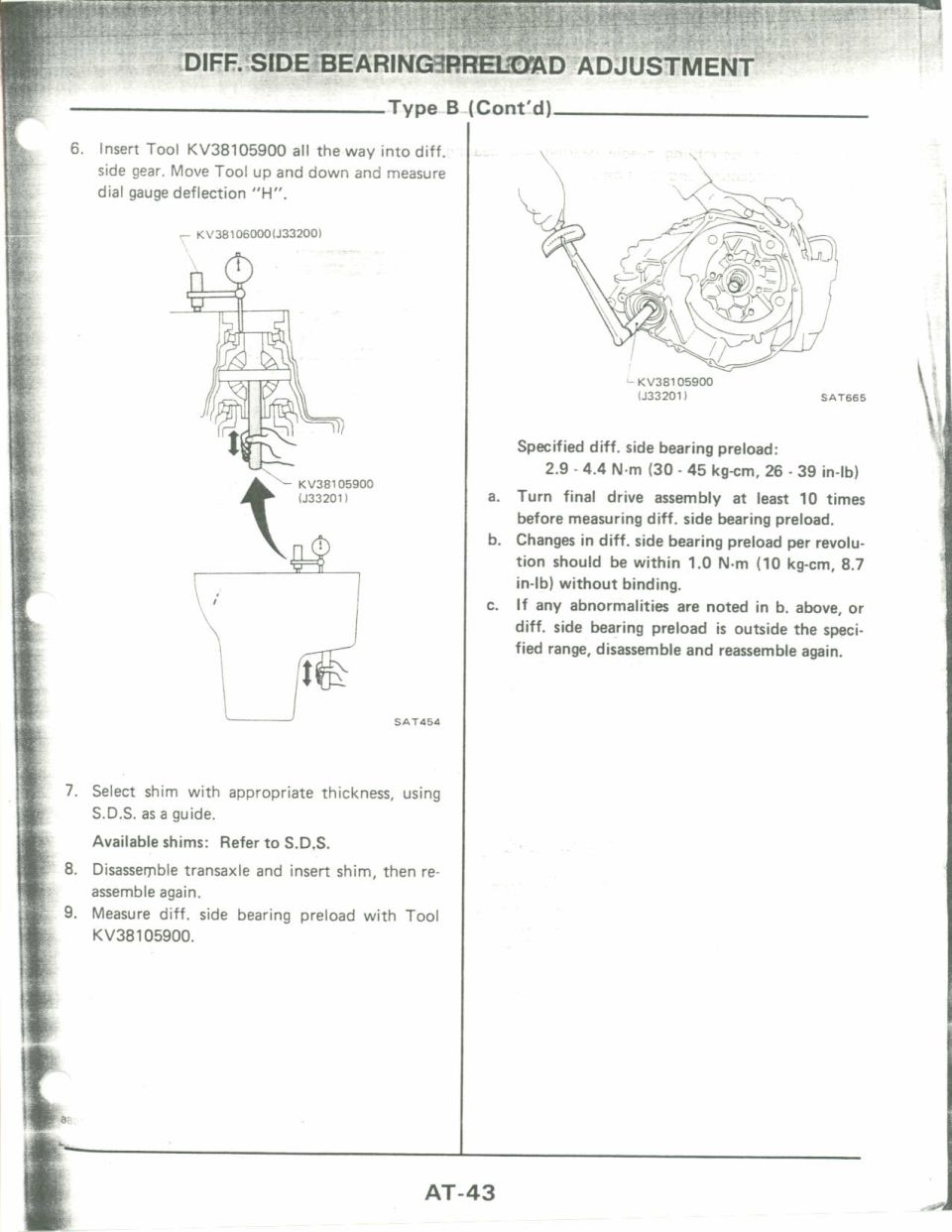

Scanned service manual page titled 'Diff. Side Bearing Preload Adjustment - Type B (Cont'd),' page AT-43, showing dial-gauge measurement procedures with tool KV38105900 and a transaxle illustration. Text lists specified diff side bearing preload of 2.9-4.4 N·m and shim selection steps.

AI caption · Photo 225 of 412

6, Insert Tool KV38105900 all the way into diff. side gear. Move Tool up and down and measure dial gauge deflection H". ' KVSBIOSOUOUSZZOOI 38105900 33201 ) sAusA Select shim with appropriate thickness, using $.D.S, as a guide, Available shims: Reler to 5.0.3. Disassemble transaxle and insert shim, then re- assemble again. Measure diff. side bearing preload with Tool KV38105900. Type B.(Cont',d) ~ KVSSIDSQDO (3201) SATBSS Specified diff. side bearing preload: 2,9 - 4.4 N-m (30 - 45 kg-cm, 26 - 39 in-lb) Turn final drive assembly at least 10 eimes before measuring diff. side bearing preload. Changes in diff. side bearing preload per revolu- on should be within 1.0 N-rn (10 kgcm, 8.7 in-lb) without binding. If any abnormalities are noted in b. above, or cliff. side bearing preload is outside the speci- fied range, disassemble and reassemble again. AT43
