What does page AT-44 of this Nissan manual cover?

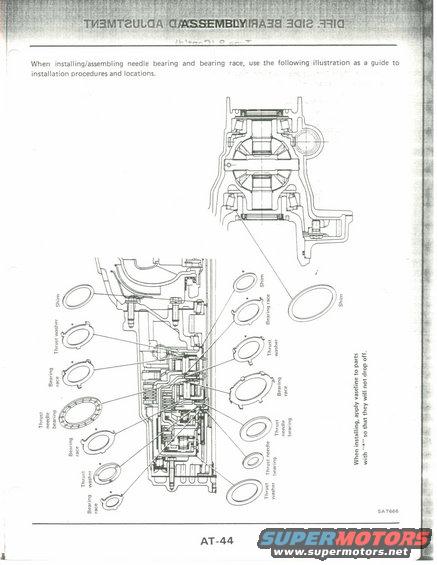

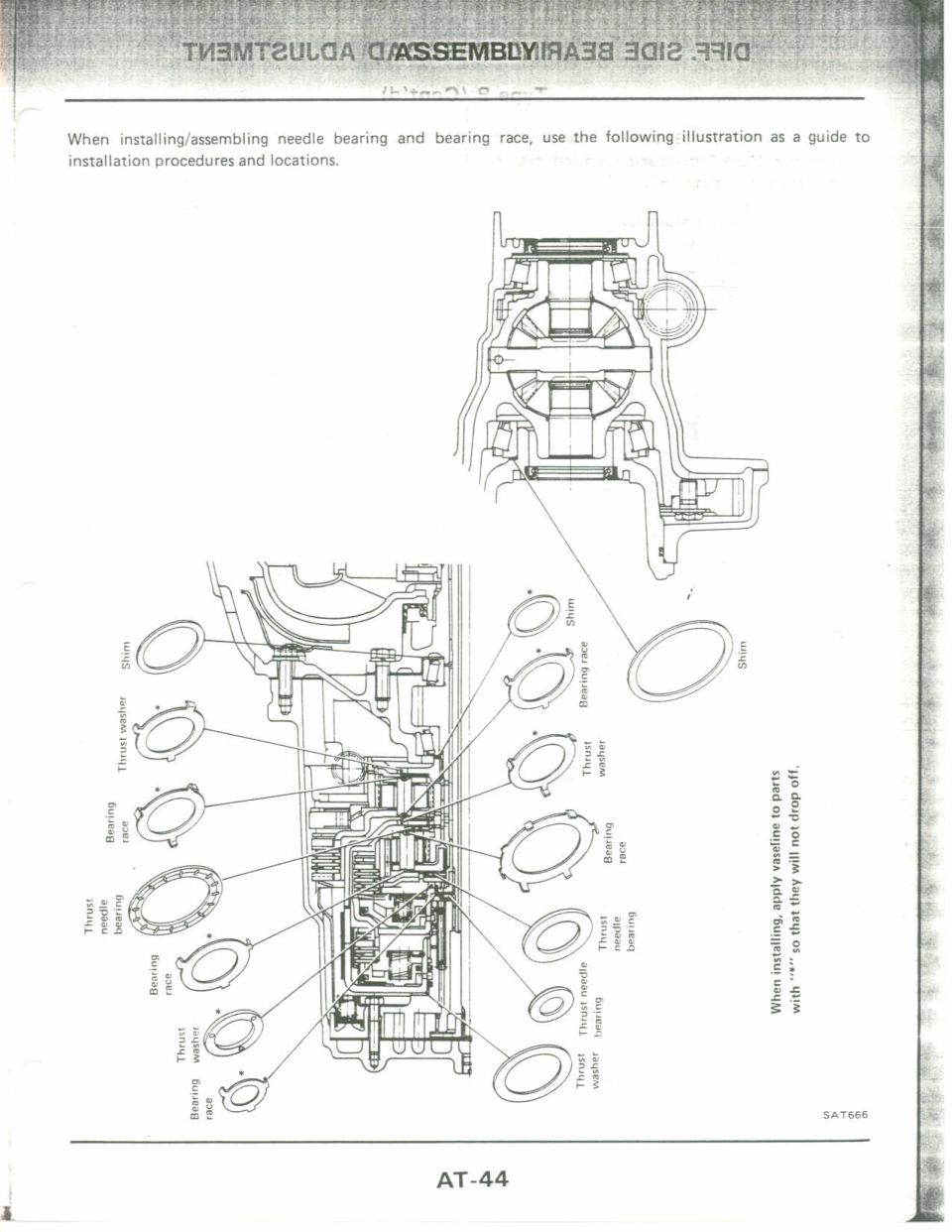

It covers assembly of the automatic transaxle, specifically showing installation locations for needle bearings, bearing races, thrust washers and shims using an illustrated guide (figure SAT666).

Why are some parts marked with an asterisk (*) in the diagram?

The note states: when installing, apply vaseline to parts marked with "*" so that they will not drop off during assembly.

Which components are identified in the illustration?

Shims, thrust washers, bearing races, and thrust needle bearings, each shown with leader lines to their installed positions in the transaxle.

How should the illustration be used?

When installing/assembling the needle bearing and bearing race, the illustration is to be used as a guide to installation procedures and locations.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/252971

Nissan Automatic Transaxle Assembly AT-44 - Needle Bearing & Race Locations

Differential side bearing assembly cutaway and exploded layout of needle bearings, races and thrust washers labeled

‹ ›

Service manual page AT-44 showing an exploded layout of needle bearings, races and washers for diff side bearing assembly.

AI caption October 2005 · Photo 226 of 412

This is page AT-44 from a Nissan service manual, in the Automatic Transaxle (AT) section, covering ASSEMBLY. The page instructs the technician to use the accompanying illustration as a guide for installation procedures and locations when installing/assembling the needle bearings and bearing races in the automatic transaxle. The illustration is a detailed cutaway/exploded view of the transaxle assembly (including a cross-section of the final drive/differential area) with leader lines pointing to the correct locations for multiple shims, thrust washers, bearing races, and thrust needle bearings. Parts marked with an asterisk (*) carry a special note: when installing, apply vaseline (petroleum jelly) to those parts so they will not drop off during assembly. The figure is identified as SAT666. Faint mirrored bleed-through text from the reverse page reads "DIFF. SIDE BEARING ADJUSTMENT, Type B (Cont'd)." A reader learns which washers and races go where in the transaxle, and the vaseline retention technique for holding parts in place during assembly. No torque values, part numbers, or model-year applicability are stated on this page itself.
