What is the initial torque for the rear wheel bearing nut?

Tighten the wheel bearing nut to 25 - 34 N·m (2.5 - 3.5 kg-m, 18 - 25 ft-lb), then turn the wheel hub several times in both directions to seat the bearing.

What is the final wheel bearing nut torque after setting preload?

After loosening the nut to 0 N·m preload (0 axial end play), retighten to 9 - 12 N·m (0.9 - 1.2 kg-m, 6.5 - 8.7 ft-lb), turn the hub several times in both directions, then tighten again to the same 9 - 12 N·m.

What special tool is used to install the bearing outer races?

Tool KV401021S0 is used to seat the bearing outer races in the hub.

How far should the grease seal be seated in the hub?

The grease seal is installed with a suitable tool to a depth of 0 - 0.5 mm (0 - 0.020 in), with its sealing lips coated in recommended multi-purpose grease.

What should be packed with grease during rear hub assembly?

Pack the hub cap with recommended multi-purpose grease; the diagram marks the multi-purpose grease points.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/253018

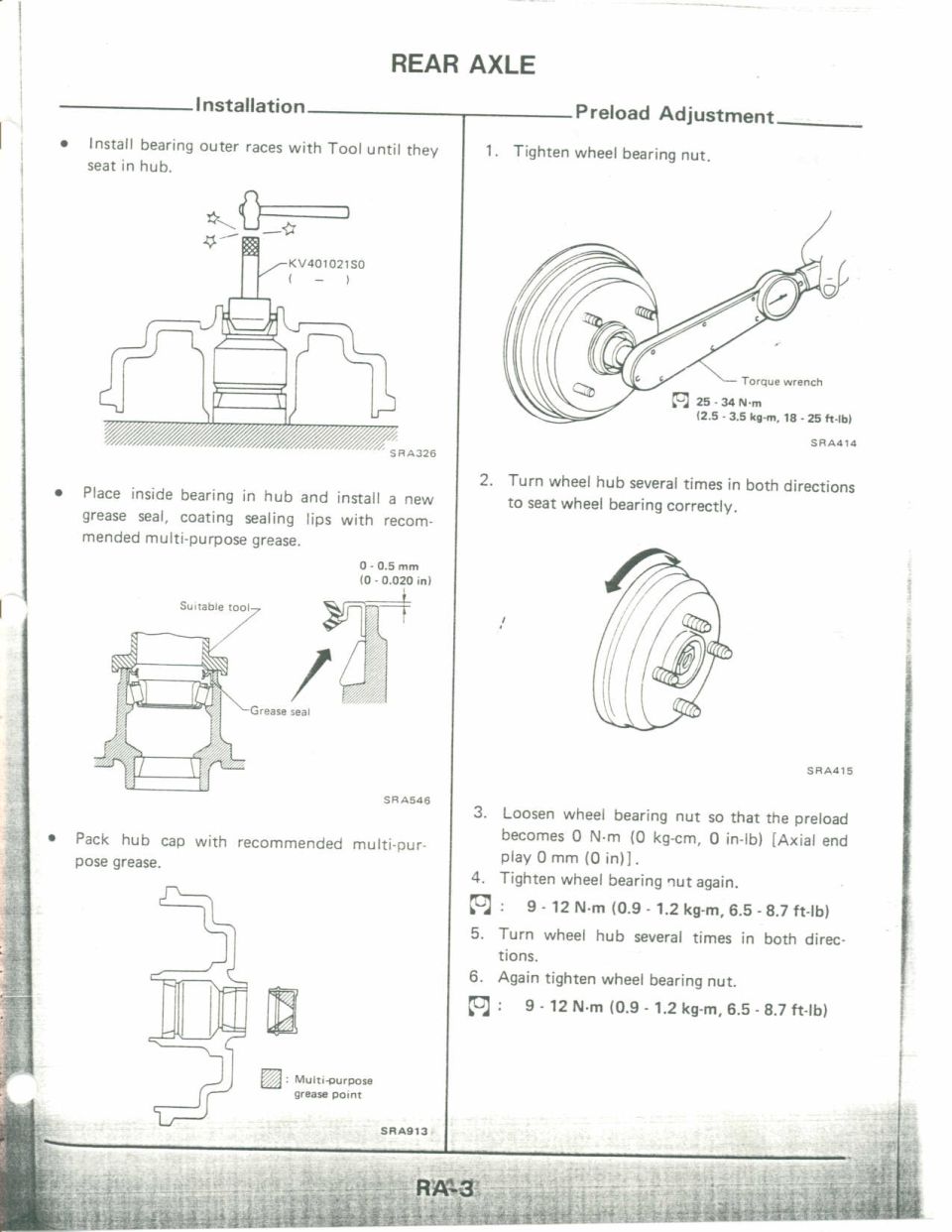

Nissan Micra Rear Axle: Hub Bearing Installation & Preload Adjustment (RA-3)

Rear axle bearing installation and preload adjustment steps with figures

‹ ›

Service manual page with rear axle bearing installation steps and wheel-bearing preload adjustment procedure using a torque wrench.

AI caption October 2005 · Photo 272 of 412

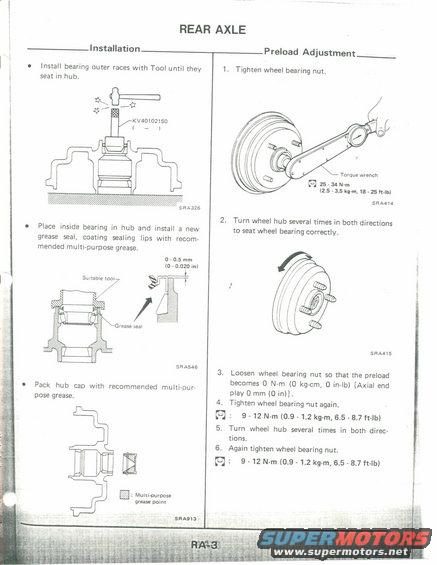

This is page RA-3 of a factory service manual section covering the REAR AXLE, uploaded as part of a Nissan Micra manual set. The left column details rear hub Installation: installing bearing outer races into the hub using special tool KV401021S0, placing the inside bearing and installing a new grease seal (seated 0-0.5 mm / 0-0.020 in below flush) with sealing lips coated in multi-purpose grease, and packing the hub cap with multi-purpose grease. The right column details Preload Adjustment for the rear wheel bearing: tighten the wheel bearing nut to 25-34 N·m (2.5-3.5 kg-m, 18-25 ft-lb), rotate the hub in both directions to seat the bearing, loosen the nut to zero preload (0 N·m, 0 axial end play), then retighten to 9-12 N·m (0.9-1.2 kg-m, 6.5-8.7 ft-lb), rotate the hub again, and tighten once more to 9-12 N·m. Illustrations (SRA326, SRA546, SRA913, SRA414, SRA415) show the tool setup, grease seal installation depth, grease points in the hub cap, and torque wrench use on the brake drum. A reader can learn the correct torque values, tool number, and step sequence for rear wheel bearing service.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the initial torque for the rear wheel bearing nut?: Tighten the wheel bearing nut to 25 - 34 N·m (2.5 - 3.5 kg-m, 18 - 25 ft-lb), then turn the wheel hub several times in both directions to seat the bearing.
What is the final wheel bearing nut torque after setting preload?: After loosening the nut to 0 N·m preload (0 axial end play), retighten to 9 - 12 N·m (0.9 - 1.2 kg-m, 6.5 - 8.7 ft-lb), turn the hub several times in both directions, then tighten again to the same 9 - 12 N·m.
What special tool is used to install the bearing outer races?: Tool KV401021S0 is used to seat the bearing outer races in the hub.
How far should the grease seal be seated in the hub?: The grease seal is installed with a suitable tool to a depth of 0 - 0.5 mm (0 - 0.020 in), with its sealing lips coated in recommended multi-purpose grease.
What should be packed with grease during rear hub assembly?: Pack the hub cap with recommended multi-purpose grease; the diagram marks the multi-purpose grease points.
