Ford Bronco Cruise Control Servo & Vacuum Hose Routing Diagram (1992 V8)

Speed control servo and transmission cable routing: non-overdrive vs overdrive transmissions, servo vacuum hose

‹ ›

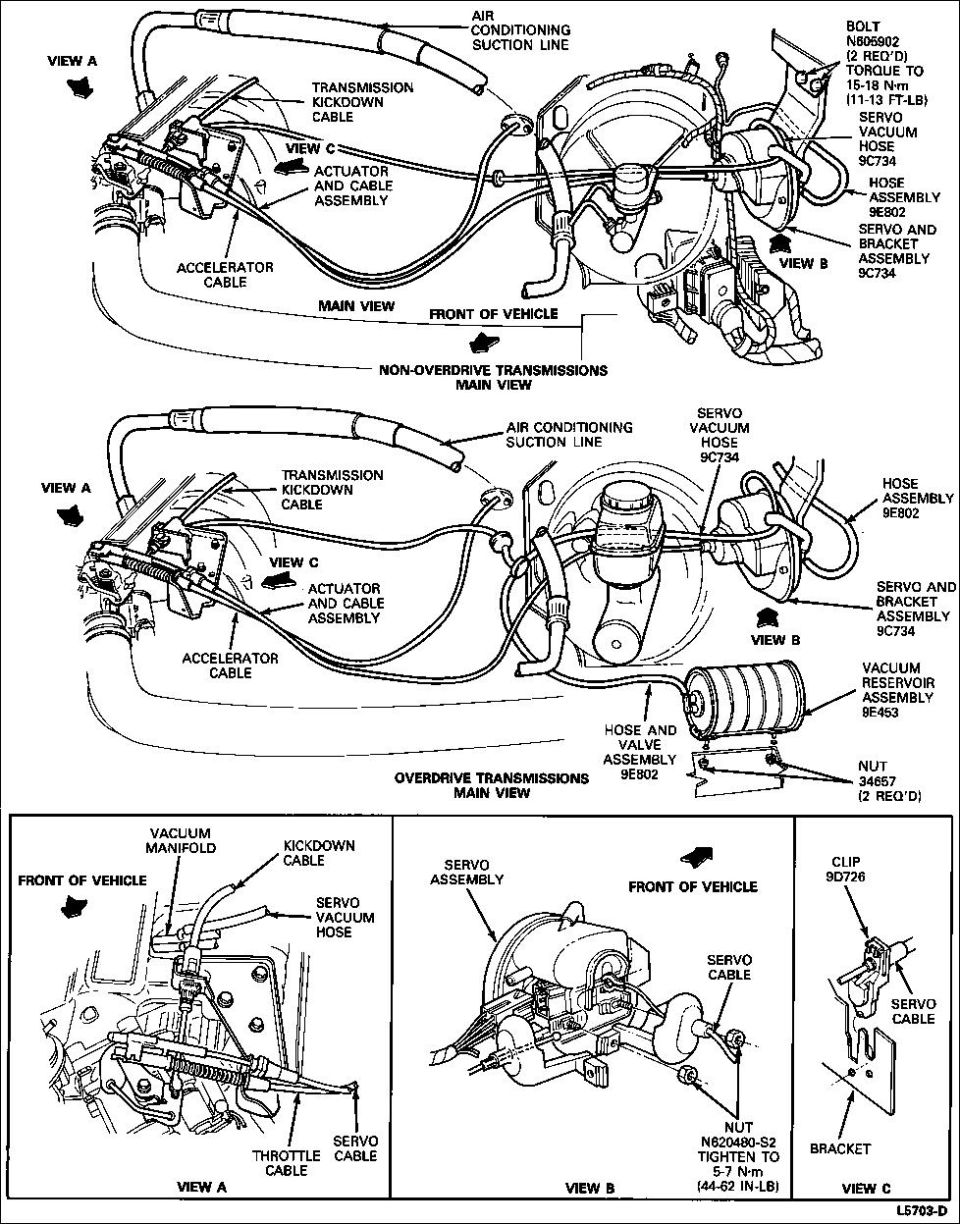

Speed control actuator/servo and transmission kickdown cable routing for non-overdrive and overdrive transmissions. Servo vacuum hose 9C734; bolt N806902 torqued 15-18 N-m (11-13 ft-lb).

AI caption October 2005 · Photo 111 of 277

This document is a factory-style illustration showing the installation and vacuum hose routing for the speed control (cruise control) servo system on a Ford truck engine compartment, uploaded as applying to a 1992 Ford Bronco with a V8. Two main views are provided: one for non-overdrive transmissions and one for overdrive transmissions. Both show the air conditioning suction line, transmission kickdown cable, accelerator cable, actuator and cable assembly, servo vacuum hose (9C734), hose assembly (9E802), and servo and bracket assembly (9C734). The overdrive-transmission view additionally shows a vacuum reservoir assembly (9E453), a hose and valve assembly (9E802), and mounting nuts (34657, 2 required). Torque specifications are given: bolt N605902 (2 required) torqued to 15-18 N·m (11-13 ft-lb), and nut N620480-S2 tightened to 5-7 N·m (44-62 in-lb). Three detail insets clarify specific areas: View A shows the vacuum manifold, kickdown cable, servo vacuum hose, throttle cable, and servo cable at the throttle body; View B shows the servo assembly and servo cable attachment; View C shows clip 9D726, the servo cable, and its bracket. The drawing carries reference number L5703-D. A reader can learn part identification, hose/cable routing, mounting hardware, and fastener torque values for cruise control servo installation.
