What spark plug and gap does the 1996 Ford 5.0L use?

The label specifies spark plug ASF-42P with a gap of .052-.056.

What oil does the label recommend?

SAE 10W-30 American Petroleum Institute (API) certified oils for gasoline engines.

What emissions equipment does this engine have?

Per the label string TFM5.088GBJK-TWC,OC / AIR / 2HO2S(1) / EGR / SFI: three-way catalyst with oxidation catalyst, secondary air injection (AIR), two heated oxygen sensors, EGR, and sequential fuel injection.

What model year does this emissions label apply to?

It states the vehicle conforms to U.S. EPA regulations applicable to 1996 model year new light-duty trucks.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “96BXLTS”/ Photo supermotors.net/registry/media/1161130

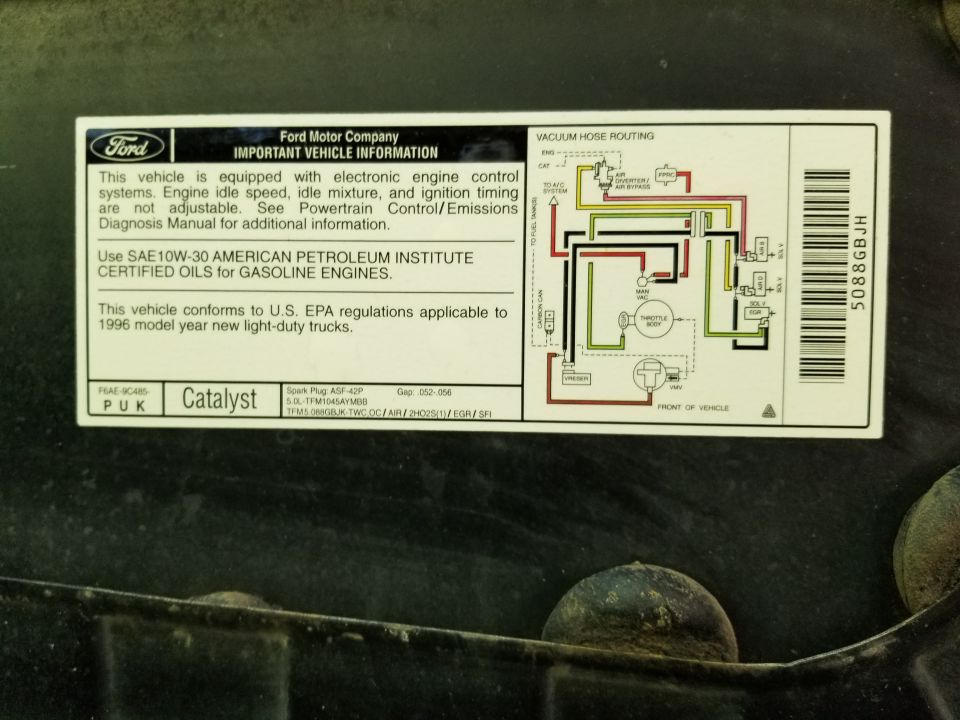

1996 Ford Bronco 5.0L VECI Label - Vacuum Hose Routing Diagram & Spark Plug Gap

Ford emissions information label with color-coded vacuum hose routing diagram for a 5.0L truck

‹ ›

Vehicle Emissions Controls Information (VECI) label

Owner caption July 2020 · Photo 26 of 193

This document is a scan of the Vehicle Emission Control Information (VECI) label from a Ford truck, photographed under the hood. Issued by Ford Motor Company under the heading 'IMPORTANT VEHICLE INFORMATION,' it states the vehicle is equipped with electronic engine control systems, so engine idle speed, idle mixture, and ignition timing are not adjustable, referring readers to the Powertrain Control/Emissions Diagnosis Manual. It specifies use of SAE 10W-30 American Petroleum Institute certified oils for gasoline engines and certifies the vehicle conforms to U.S. EPA regulations for 1996 model year new light-duty trucks. The label carries part number F6AE-9C485-PUK, is marked 'Catalyst,' and lists the spark plug as ASF-42P with a gap of .052-.056 for the 5.0L engine (calibration TFM1045AYMBB; emissions equipment string TFM5.088GBJK-TWC,OC / AIR / 2HO2S(1) / EGR / SFI). The right half of the label contains a color-coded vacuum hose routing diagram showing connections between the air diverter/air bypass valve, FPRC, carbon canister, manifold vacuum, EGR valve and solenoid, throttle body, AIR B and AIR D solenoids, vacuum reservoir (VRESER), VMV, A/C system, and fuel tank(s), oriented to the front of the vehicle. A reader can learn correct spark plug specs, oil grade, emissions certification, and factory vacuum line routing.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What spark plug and gap does the 1996 Ford 5.0L use?: The label specifies spark plug ASF-42P with a gap of .052-.056.
What oil does the label recommend?: SAE 10W-30 American Petroleum Institute (API) certified oils for gasoline engines.
Can idle speed, idle mixture, or ignition timing be adjusted?: No. The vehicle has electronic engine control systems; engine idle speed, idle mixture, and ignition timing are not adjustable. See the Powertrain Control/Emissions Diagnosis Manual for more information.
What emissions equipment does this engine have?: Per the label string TFM5.088GBJK-TWC,OC / AIR / 2HO2S(1) / EGR / SFI: three-way catalyst with oxidation catalyst, secondary air injection (AIR), two heated oxygen sensors, EGR, and sequential fuel injection.
What model year does this emissions label apply to?: It states the vehicle conforms to U.S. EPA regulations applicable to 1996 model year new light-duty trucks.
