Nissan Micra Brake Bleeding Diagram & Torque Specs - Hydraulic System BR-2

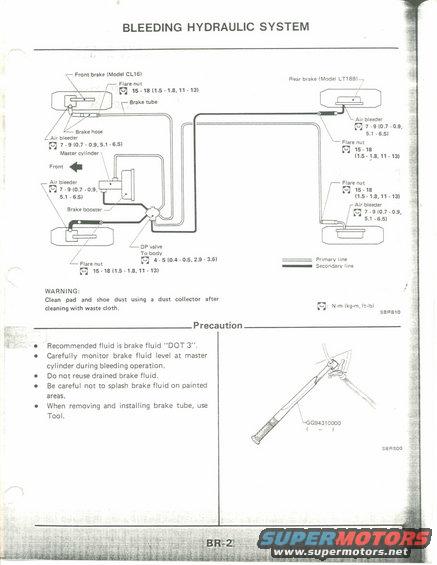

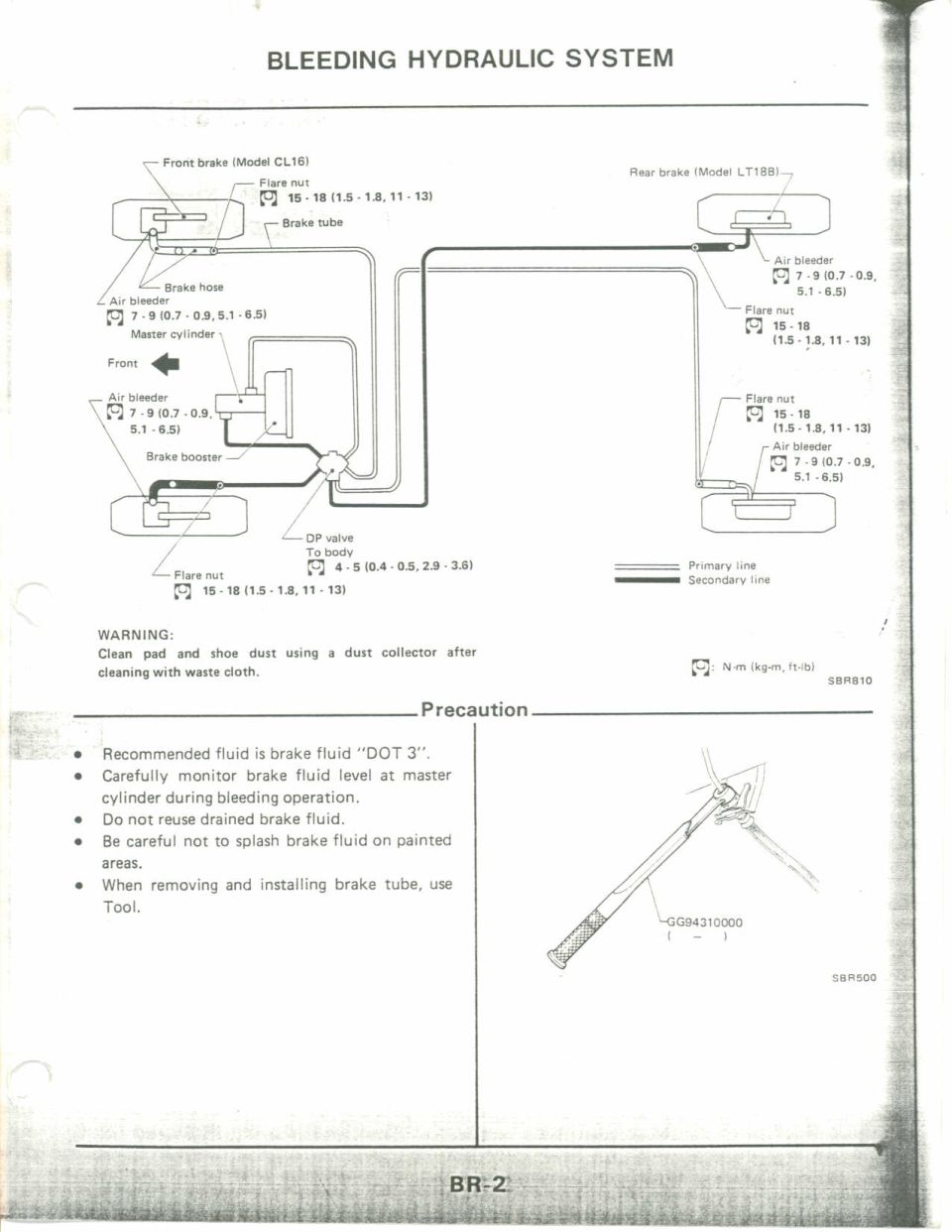

This is page BR-2 of a factory service manual brake section titled "Bleeding Hydraulic System." The top of the page contains a schematic layout diagram of the vehicle's hydraulic brake system, identifying the front brake (Model CL16), rear brake (Model LT18B), master cylinder, brake booster, DP valve, brake tubes, brake hoses, flare nuts, and air bleeders. Torque specifications are provided in N·m (kg-m, ft-lb): flare nuts 15-18 N·m (1.5-1.8 kg-m, 11-13 ft-lb), air bleeders 7-9 N·m (0.7-0.9 kg-m, 5.1-6.5 ft-lb), and DP valve to body 4-5 N·m (0.4-0.5 kg-m, 2.9-3.6 ft-lb). A legend distinguishes the primary and secondary hydraulic lines. A warning instructs cleaning pad and shoe dust with a dust collector after cleaning with a waste cloth. The Precaution section lists five points: use DOT 3 brake fluid, monitor master cylinder fluid level during bleeding, do not reuse drained fluid, avoid splashing fluid on paint, and use special tool GG94310000 (a flare nut wrench, illustrated) when removing/installing brake tubes. Figure references SBR810 and SBR500 appear on the page.
