Nissan Micra Service Manual BF-3: Clip & Fastener Removal Chart (Cont'd)

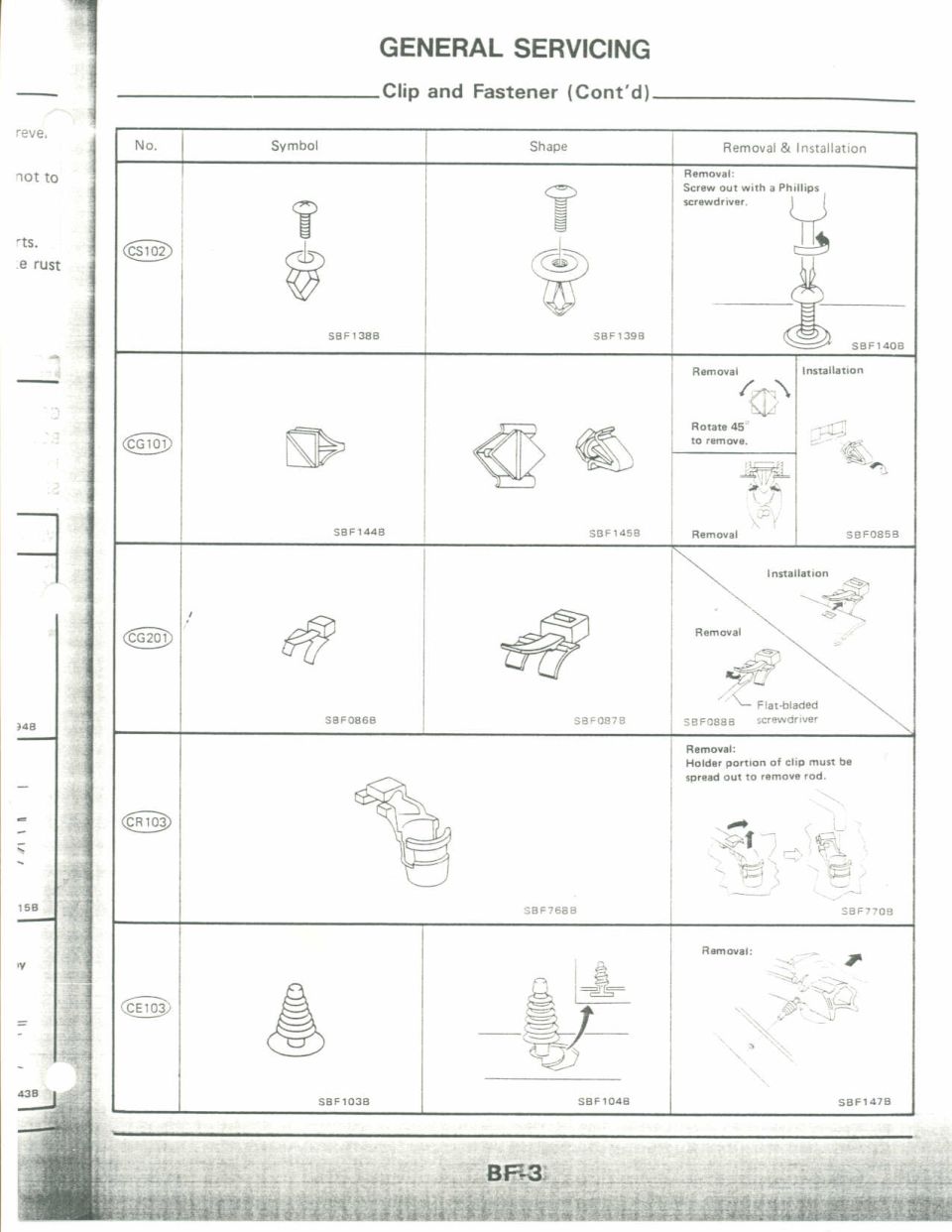

This is page BF-3 of a Nissan service manual, from the General Servicing section, continuing a reference chart of body clips and fasteners ("Clip and Fastener (Cont'd)"). The page presents a table with four columns: No. (clip identification code), Symbol, Shape, and Removal & Installation. Five fastener types are covered: CS102 (a screw-type clip removed by screwing out with a Phillips screwdriver), CG101 (a clip removed by rotating 45°), CG201 (a clip removed and installed using a flat-bladed screwdriver), CR103 (a rod-holder clip whose holder portion must be spread out to remove the rod), and CE103 (a ribbed push-in trim clip with an illustrated removal method). Each entry includes line-drawing illustrations with figure reference codes: SBF138B, SBF139B, SBF140B, SBF144B, SBF145B, SBF085B, SBF086B, SBF087B, SBF088B, SBF768B, SBF770B, SBF103B, SBF104B, and SBF147B. A reader can use this chart to identify body clip types encountered during trim and panel disassembly by their symbol codes (used elsewhere in the Body section of the manual) and learn the correct removal and installation technique for each, helping avoid breaking fasteners during service.
