How do you remove a C101 body clip?

Per the table, remove the C101 clip by bending it up with a flat-bladed screwdriver.

How is the C102 trim clip removed?

The C102 clip is removed by pulling it up while rotating, as shown with pliers in the illustration (SBF115B).

What is the removal procedure for the C105 clip?

Tilt the clip as indicated by the arrow, then draw it out.

Should damaged clips be reused after removal?

No — the document states to replace any clips and/or fasteners which are damaged during removal or installation.

What precaution applies when replacing metal body parts?

When replacing any metal parts (e.g., body outer panel, members), be sure to take rust prevention measures.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/294001

1990 Nissan Micra Service Manual BF-2: General Servicing, Clip & Fastener Guide

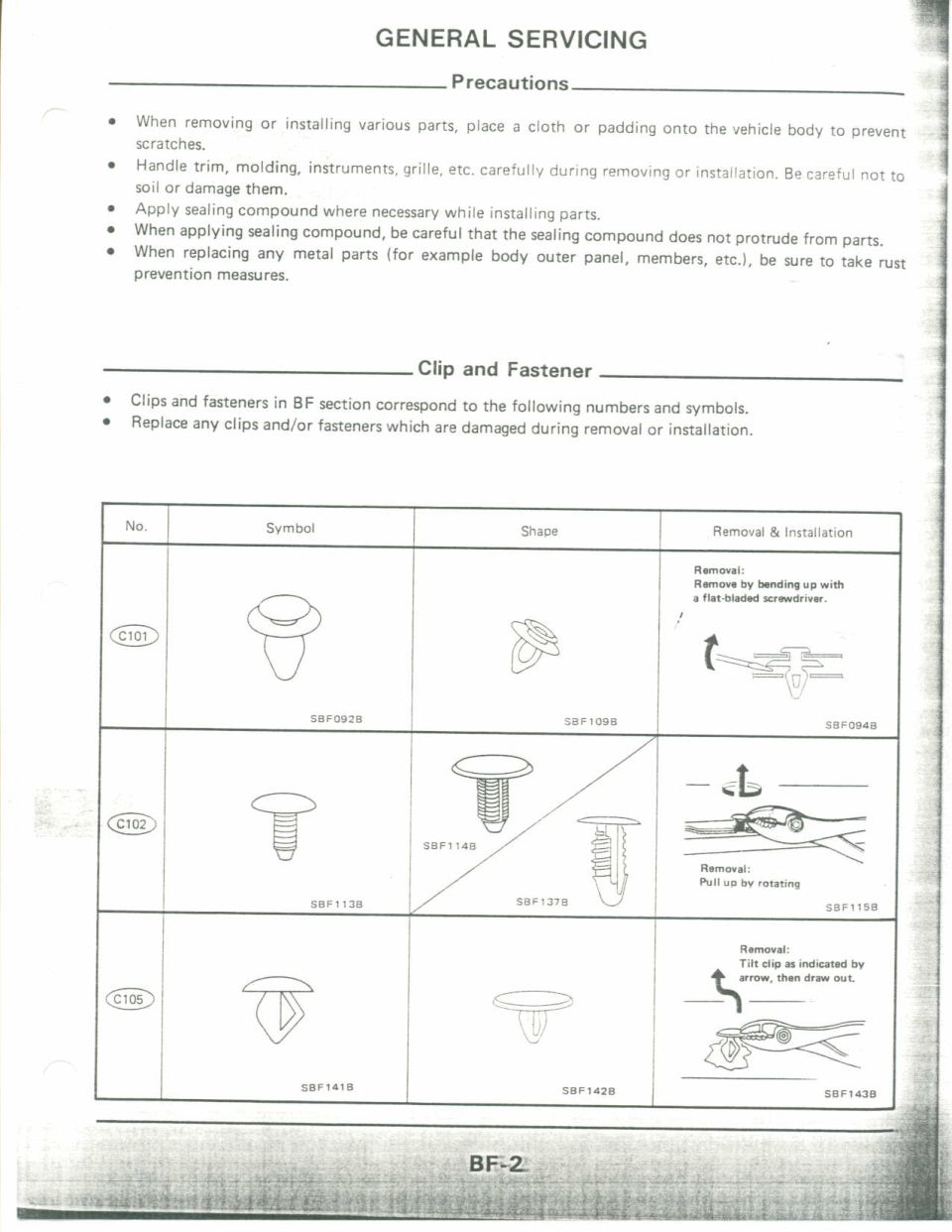

Clip and fastener identification chart with symbols, shapes and removal notes

‹ ›

General servicing clip and fastener chart listing fastener numbers, symbols, shapes and removal/installation methods.

AI caption February 2006 · Photo 315 of 412

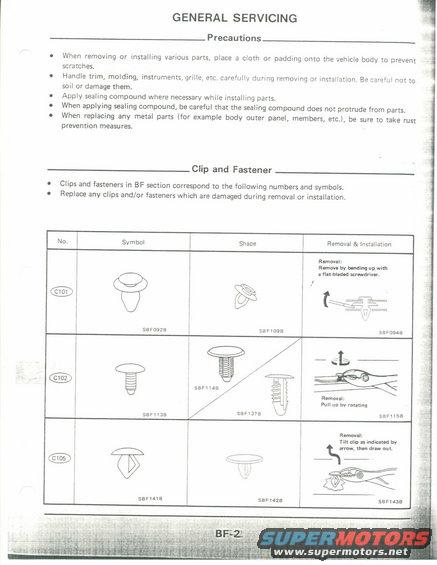

This is page BF-2 of a factory service manual (BF — Body & Frame section) titled "General Servicing." It contains two subsections. The "Precautions" section lists five general body-work precautions: using cloth or padding to prevent scratches when removing or installing parts; careful handling of trim, molding, instruments, and grille; applying sealing compound where necessary; ensuring sealing compound does not protrude from parts; and taking rust prevention measures when replacing metal parts such as body outer panels and members. The "Clip and Fastener" section explains that clips and fasteners used throughout the BF section correspond to numbered symbols, and that any clips or fasteners damaged during removal or installation must be replaced. A reference table follows showing three clip types (C101, C102, C105) with columns for the symbol, the actual clip shape, and the removal/installation method. C101 is removed by bending up with a flat-bladed screwdriver; C102 is removed by pulling up while rotating; C105 is removed by tilting the clip as indicated by the arrow and drawing it out. Illustration reference codes SBF092B, SBF109B, SBF094B, SBF113B, SBF114B, SBF137B, SBF115B, SBF141B, SBF142B, and SBF143B accompany the drawings. Uploaded to a 1990 Nissan Micra gallery.
