Nissan Micra Alternator Diode Check & Reassembly - Service Manual Page EL-28

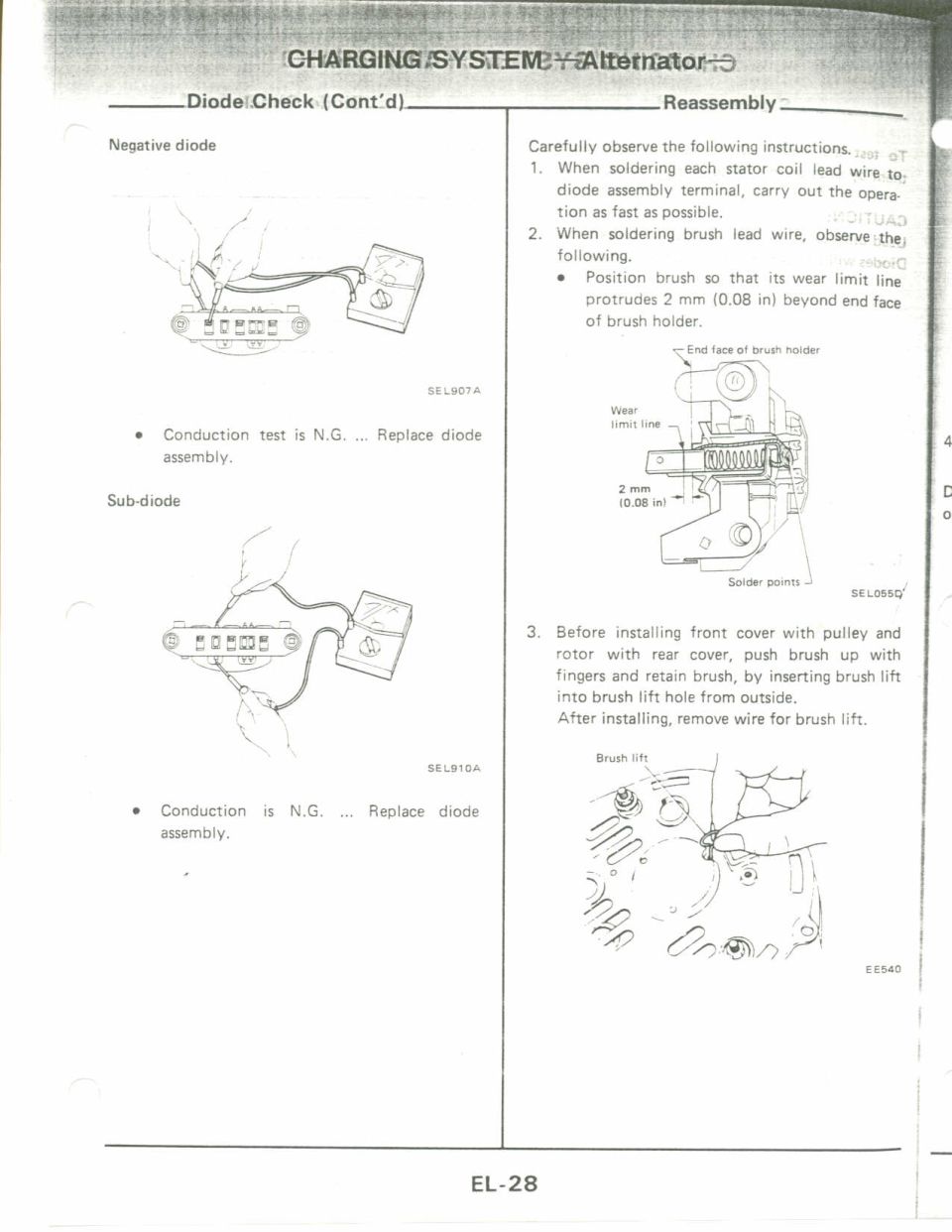

This is page EL-28 from a factory service manual's Electrical (EL) section covering the Charging System — Alternator. The left column continues the alternator Diode Check procedure, showing illustrated conduction tests for the negative diode (figure SEL907A) and the sub-diode (figure SEL910A); in both cases, if the conduction test fails (N.G.), the instruction is to replace the diode assembly. The right column covers alternator Reassembly with three cautions: (1) solder each stator coil lead wire to the diode assembly terminal as quickly as possible; (2) when soldering the brush lead wire, position the brush so its wear limit line protrudes 2 mm (0.08 in) beyond the end face of the brush holder (illustrated in figure SEL055D, showing solder points and the wear limit line); and (3) before installing the front cover with pulley and rotor with the rear cover, push the brush up and retain it by inserting a brush lift wire into the brush lift hole from outside, then remove the wire after installation (figure EE540). The page gives no explicit year, model, or engine applicability but matches the format of Nissan service manuals.
