How does the homemade 4WD engine stand rotate the engine?

A 4x4 wheel hub is welded to the stand's upright, and a spindle/axle assembly spins inside it on wheel bearings with lock rings. A locking hub installed on the assembly lets the builder unlock, rotate the engine to a desired position, then relock the hub to hold it.

What parts was the engine stand built from?

Old Ford TTB components: a stub axle with the yoke cut off welded into a spindle, the spindle/axle flange welded to a slotted flat plate, a 4x4 wheel hub welded to the upright, plus wheel bearings, lock rings, and a locking hub.

Why build this instead of buying an engine stand?

According to the article, it beats paying $300 (or more) for a geared engine stand.

Who built the engine stand described in the article?

Keith Lawyer, who fabricates shop tools from old truck parts at his place in Durango, Colorado.

How is the engine attached to the stand?

The engine hangs from a flat plate with slots cut in it, similar to the motor-mount plates found on normal engine stands, which is welded to the flange side of the spindle/axle.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1978 Ford Bronco/ Photo supermotors.net/registry/media/306095

DIY 4WD Engine Stand from Ford TTB Parts - Locking Hub Rotating Design

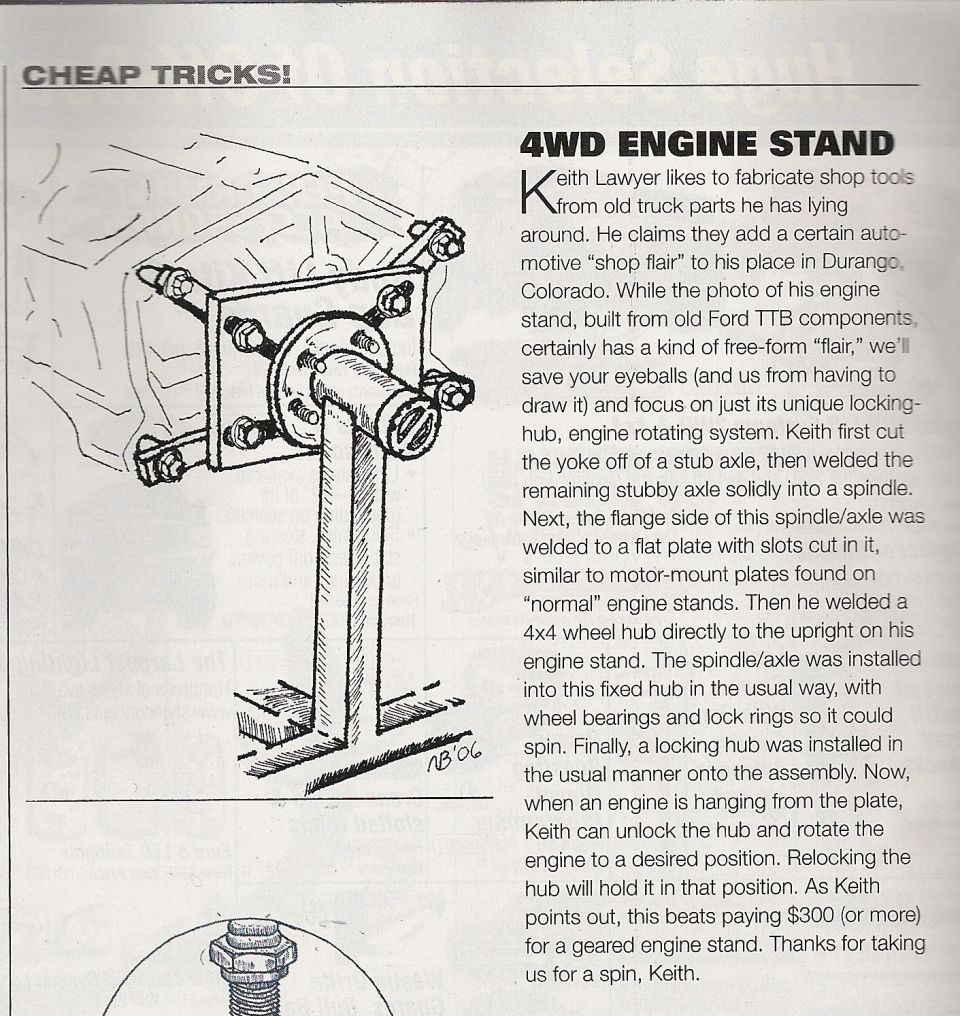

Scanned magazine Cheap Tricks page describing a homemade 4WD engine stand

‹ ›

Reference · 1978-1979 BroncoAll 90 brochures & literature

Mercedes-Benz SLR McLaren specification and price sheet on a showroom display stand

Magazine feature "High Boy" on a two-tone blue and silver '77 Ford F-250 4x4 with build specs

Hose Holder Tip: Reuse Old Wheels as Hose & Extension Cord Holders

DIY 4WD Engine Stand from Ford TTB Parts - Locking Hub Rotating Design

2020 Mustang 2.3L High Performance EcoBoost Package brochure spread with orange coupe and spec table

Tidewater Broncos flyer for the 5th Annual Carova Beach Clean Up with early Broncos on the sand

Off-Road magazine January 1991 cover with a black flamed Ford monster truck and a shark graphic

Off-Road magazine January 1990 cover with a lifted red Ford pickup splashing through water

Off-Road magazine February 1990 cover with a lifted white Ford pickup climbing a dirt hill

'79 Bronco color and trim selections chart with trim combination matrix and Tu-Tone color availability table

Seat Designs Easy-Fit Custom Seatcovers box showing a tan Cool Mesh seat cover and feature list

E-Z-ON 86Y Universal Harness Brochure - Retrofit Lap Belt Safety Harness Kit

90brochures & literature1978-1979 Ford Bronco More reference

Magazine Q&A on a solid axle conversion for a TTB '95 F-150 using a '78 Bronco Dana 44

Manual page

4 Bar Linkage Calculator v3.0 - Rear 4-Link Anti-Squat & Roll Center Geometry

Schematic

Blueprint

Wiring diagram

Exploded parts

Early Ford Bronco VIN data plate with U150 model code, stamped on a faded maroon door edge

Spec plate

Battle Born Brakes Hydroboost Install Pg 4 - Bench Bleeding & Hose Routing Diagram

Service procedure

1979 Ford Bronco & F100-F350 Vacuum Distribution Diagram - Hose Routing

Vacuum routing

Fuse chart

Torque spec

Scanned magazine article describing how to fabricate a 4WD engine stand from old Ford TTB axle parts.

Part of 1978-1979 Ford Bronco Brochures & Literature

AI caption March 2006 · Photo 422 of 446

This is a scanned page from a magazine's "Cheap Tricks!" column describing a reader-built 4WD engine stand. Keith Lawyer of Durango, Colorado fabricated an engine stand from old Ford TTB (Twin Traction Beam) front axle components. The article explains his unique locking-hub engine rotating system: he cut the yoke off a stub axle, welded the remaining stub solidly into a spindle, then welded the spindle/axle flange to a slotted flat plate (similar to motor-mount plates on commercial engine stands). A 4x4 wheel hub was welded directly to the stand's upright, and the spindle/axle was installed into this fixed hub with wheel bearings and lock rings so it could spin. A standard locking hub was then installed on the assembly. With an engine mounted on the plate, unlocking the hub allows the engine to be rotated to any desired position, and relocking the hub holds it there, a homemade alternative to paying $300 or more for a geared engine stand. An ink illustration (signed NB '06) shows the hub, spindle, mounting plate, and upright assembly. Readers learn a practical shop fabrication technique for repurposing Ford TTB axle parts.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How does the homemade 4WD engine stand rotate the engine?: A 4x4 wheel hub is welded to the stand's upright, and a spindle/axle assembly spins inside it on wheel bearings with lock rings. A locking hub installed on the assembly lets the builder unlock, rotate the engine to a desired position, then relock the hub to hold it.
What parts was the engine stand built from?: Old Ford TTB components: a stub axle with the yoke cut off welded into a spindle, the spindle/axle flange welded to a slotted flat plate, a 4x4 wheel hub welded to the upright, plus wheel bearings, lock rings, and a locking hub.
Why build this instead of buying an engine stand?: According to the article, it beats paying $300 (or more) for a geared engine stand.
Who built the engine stand described in the article?: Keith Lawyer, who fabricates shop tools from old truck parts at his place in Durango, Colorado.
How is the engine attached to the stand?: The engine hangs from a flat plate with slots cut in it, similar to the motor-mount plates found on normal engine stands, which is welded to the flange side of the spindle/axle.
