What fuses and amp ratings are shown on this wiring diagram?

Four fuses are shown fed from the buss bar: F-2 is 14 amp, F-3 is 4 amp, F-4 is 15 amp, and F-5 is 20 amp.

What wire color feeds the cluster illumination lamps?

The cluster illumination lamps, along with the heater control, headlamp/hazard/wiper switch, and PRNDL illumination lamps, are fed by circuit 19 BL-R (blue-red) through the 4-amp F-3 fuse.

What happens when the windshield washer switch is pushed to wash?

Per Note A on the diagram, when the windshield washer switch is pushed to the wash position, the windshield wiper switch is cammed to its 'LO' position.

What wire colors run from the dimmer switch to the headlamps?

From the headlamp dimmer switch, circuit 13 R-BK and 12 GR-BK run through splices to the left and right headlamps via connectors C-402 and C-403; 34 GR-BK feeds the hi-beam indicator lamp. Grounds are 57 BK.

Which circuits does this diagram page cover?

It covers headlamps, marker lamps, park/turn signal lamps, turn and emergency signal switch, T/S and emergency flashers, stoplamp switch, windshield wiper/washer, backup lamps, AM radio, dome/map lamps, panel illumination lamps, cigar lighter, and an immersion heater.

Home/ Registry/ Ford/ Bronco/ 1966-1977/ 1974 Ford Bronco/ Photo supermotors.net/registry/media/307957

1974 Ford Bronco Wiring Diagram - Headlights, Turn Signals, Wiper & Fuses

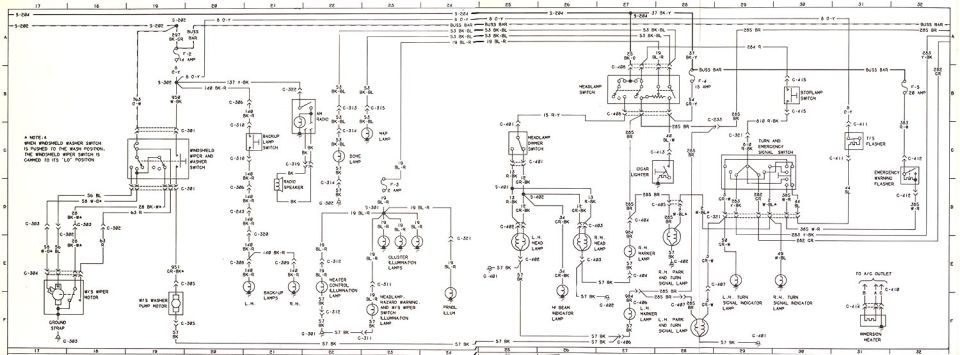

Vehicle wiring diagram showing headlight, switch, and lamp circuits

‹ ›

Reference · 1966-1977 BroncoAll 10 wiring diagrams

1974 Ford Bronco Wiring Diagram - Rear Stop/Turn, Marker, License & Heater Blower

1974 Ford Bronco Wiring Diagram - Headlights, Turn Signals, Wiper & Fuses

1974 Ford Bronco Wiring Diagram - Ignition, Charging, Gauges & Horn Circuits

Ford Duraspark Ignition Module Wiring Diagram - Blue Connector Conversion

1976-1977 Ford Duraspark II Ignition Wiring Diagram - Blue Grommet Module

1975-1977 Ford Bronco Power Distribution Wiring Diagram - Ignition, Charging

Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnesses

Bronco exterior lights and turn signals wiring diagram with lettered harness callouts

'66-72 Bronco wiring system harness routing diagram with Ford part numbers

1970 Ford Bronco Windshield Wiper & Washer Wiring Diagram - Fig. 10.91

10wiring diagrams1966-1977 Ford Bronco More reference

Exploded parts

Manual page

Early Ford Bronco Wiring Harness Locations Diagram - Engine, Dash, Taillight

Schematic

Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail Seals

Service procedure

Magazine Metamorphosis feature continuation page on a modified Bronco build

Brochure

1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker Chart

Fuse chart

Torque spec

Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall length

Blueprint

Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV type

Spec plate

'65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbers

Vacuum routing

Wiring diagram depicting headlight, ignition switch, and lamp circuits with connectors and coded conductors.

Part of 1966-1977 Ford Bronco Wiring Diagrams

AI caption April 2006 · Photo 76 of 206

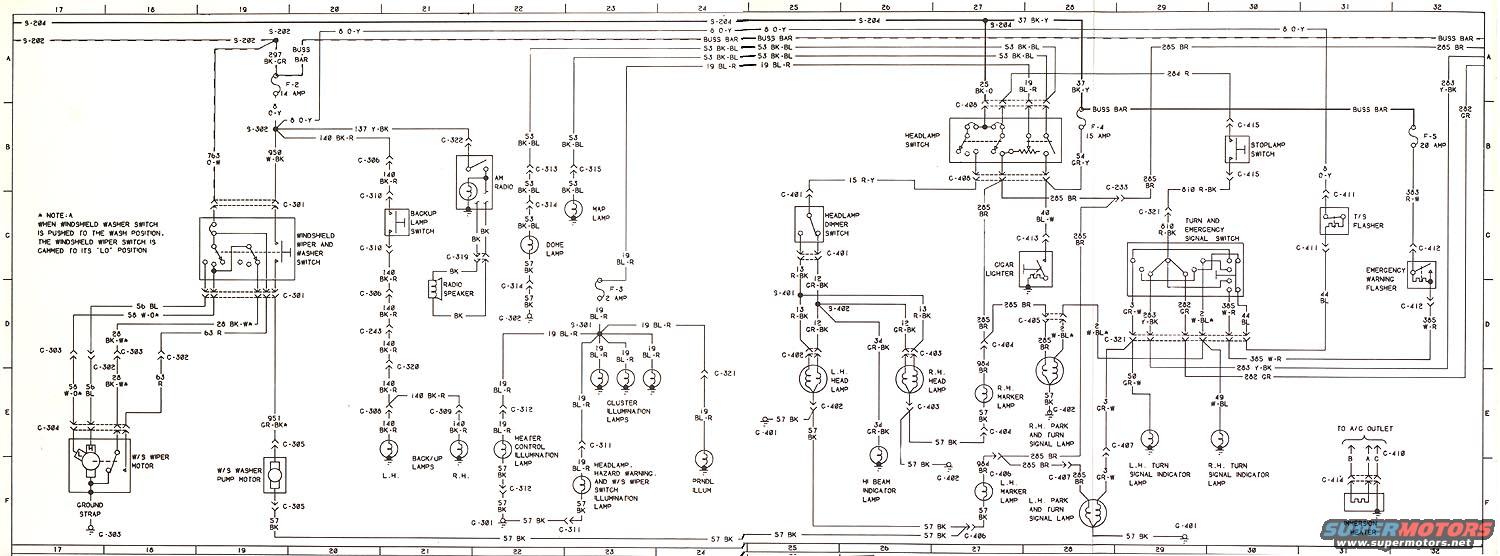

This document is one page of a multi-page factory-style wiring diagram, uploaded as "74wiring2.jpg" for a 1974 Ford Bronco. The schematic covers primarily lighting and accessory circuits: the headlamp switch, headlamp dimmer switch, left and right headlamps, front marker lamps, park/turn signal lamps, turn and emergency signal switch, turn signal (T/S) flasher, emergency warning flasher, stoplamp switch, and hi-beam and turn signal indicator lamps. It also shows the windshield wiper and washer switch, wiper motor and washer pump motor, backup lamp switch and backup lamps, AM radio and speaker, dome and map lamps, cluster/heater control/PRNDL illumination lamps, cigar lighter, and an immersion heater with an A/C outlet feed. Fuses shown include F-2 (14 amp), F-3 (4 amp), F-4 (15 amp), and F-5 (20 amp), all fed from a buss bar. Wire circuits are labeled with number and color codes (e.g., 19 BL-R, 53 BK-BL, 285 BR, 57 BK ground), and connectors (C-301 through C-415), splices (S-202, S-204, S-301, S-401), and grounds (G-301, G-401, etc.) are called out. A note explains that pushing the washer switch to the wash position cams the wiper switch to its LO position. The page itself is undated.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuses and amp ratings are shown on this wiring diagram?: Four fuses are shown fed from the buss bar: F-2 is 14 amp, F-3 is 4 amp, F-4 is 15 amp, and F-5 is 20 amp.
What wire color feeds the cluster illumination lamps?: The cluster illumination lamps, along with the heater control, headlamp/hazard/wiper switch, and PRNDL illumination lamps, are fed by circuit 19 BL-R (blue-red) through the 4-amp F-3 fuse.
What happens when the windshield washer switch is pushed to wash?: Per Note A on the diagram, when the windshield washer switch is pushed to the wash position, the windshield wiper switch is cammed to its 'LO' position.
What wire colors run from the dimmer switch to the headlamps?: From the headlamp dimmer switch, circuit 13 R-BK and 12 GR-BK run through splices to the left and right headlamps via connectors C-402 and C-403; 34 GR-BK feeds the hi-beam indicator lamp. Grounds are 57 BK.
Which circuits does this diagram page cover?: It covers headlamps, marker lamps, park/turn signal lamps, turn and emergency signal switch, T/S and emergency flashers, stoplamp switch, windshield wiper/washer, backup lamps, AM radio, dome/map lamps, panel illumination lamps, cigar lighter, and an immersion heater.
