Ford service manual table of ignition coil, PCM pin and P0351-P0…

Ford service manual table of ignition coil, PCM pin and P0351-P0360 DTCs incl. 3.4L Taurus SHO

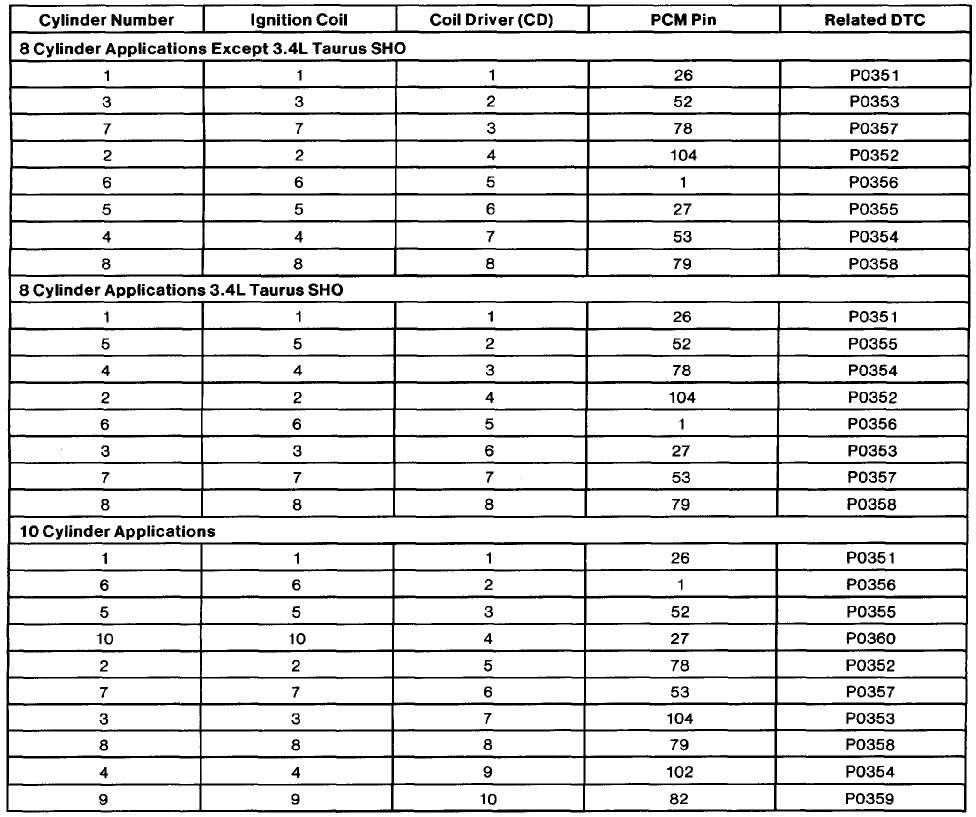

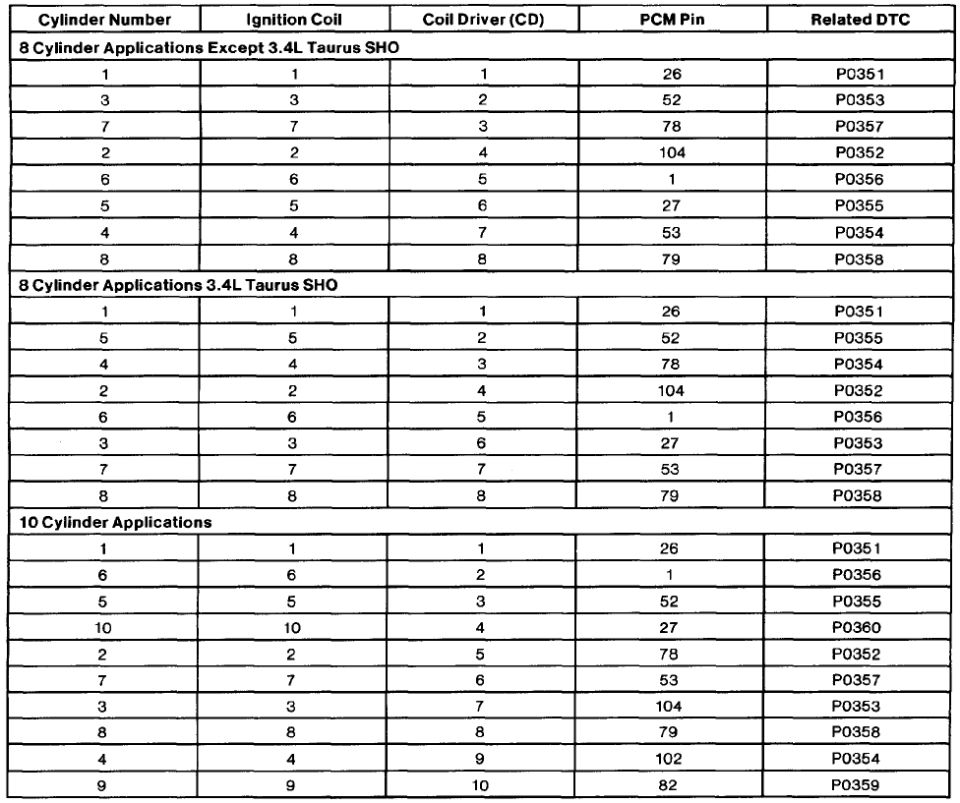

Scanned Ford service-manual table listing ignition coil, coil driver (CD), PCM pin and related misfire DTC for each cylinder, split into 8-cylinder applications, 3.4L Taurus SHO applications, and 10-cylinder applications. Codes run P0351-P0360 against PCM pins such as 26, 52, 78, 104 and 1.

AI caption · Photo 5 of 10

Cylinder Numhev lgnltlon Coil Coil Driver (CD) 5 Cylindar Applicallon Excom SAL Taurus SNO
