What connector is shown in this diagram?

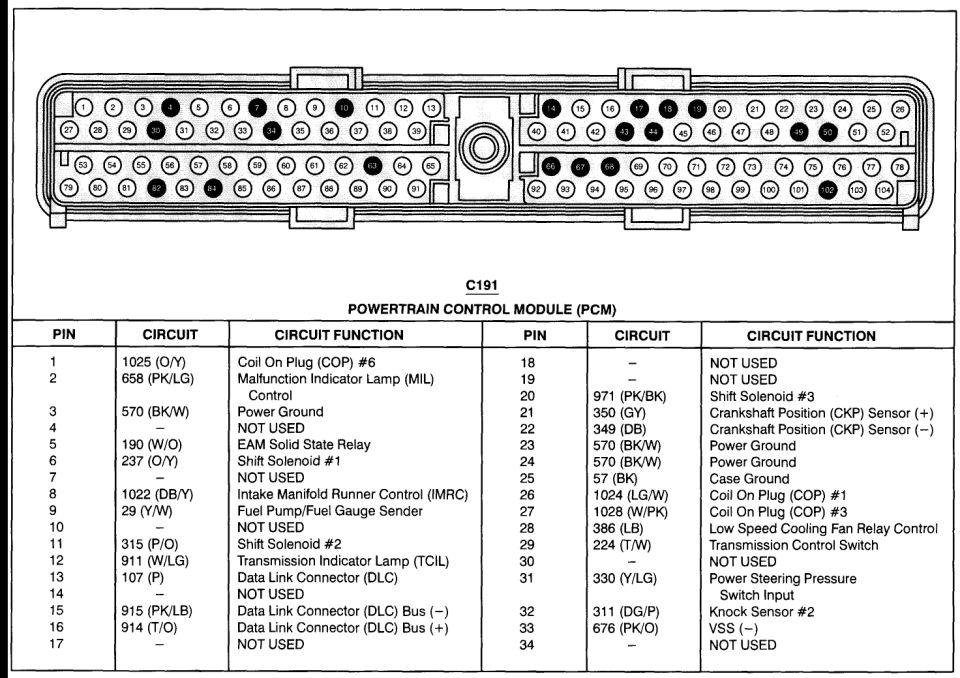

Connector C191, the Powertrain Control Module (PCM) connector, drawn as a 104-pin connector with pins numbered 1 through 104.

Which PCM pins are power grounds?

Pins 3, 23, and 24 are Power Ground on circuit 570 (BK/W), and pin 25 is Case Ground on circuit 57 (BK).

Where do the Crankshaft Position (CKP) sensor wires go on the PCM?

Pin 21 is CKP Sensor (+) on circuit 350 (GY), and pin 22 is CKP Sensor (−) on circuit 349 (DB).

Which pins are the Data Link Connector (DLC) circuits?

Pin 13 is DLC on circuit 107 (P), pin 15 is DLC Bus (−) on circuit 915 (PK/LB), and pin 16 is DLC Bus (+) on circuit 914 (T/O).

What pins control the transmission shift solenoids?

Shift Solenoid #1 is pin 6, circuit 237 (O/Y); Shift Solenoid #2 is pin 11, circuit 315 (P/O); Shift Solenoid #3 is pin 20, circuit 971 (PK/BK).
