What is connector C264 on the Ford Excursion?

C264 is a black (BK) 14-pin male connector, part designation 14401, with pins 1–8 on the bottom row and 9–14 on the top row.

What do the asterisks mean in the C264 pinout table?

* means Excursion, ** means Pickup, and *** means Pickup without power roof opening panel.

What wire color is on pin 1 of C264?

Pin 1 is circuit 295 with a light blue/pink (LB/PK) wire.

Which pins of C264 differ between the Excursion and the Pickup?

Pin 5 is circuit 57 (BK) on both Pickup without power roof (***) and Excursion (*); pin 6 is 789 (BN/WH) but not used on Excursion; pin 7 is 400 (LB/BK) on Pickup and 470 (PK/BK) on Excursion; pin 8 is 140 (BK/PK) on Excursion and 53 (BK/LB) on Pickup; pin 9 is 19 (LB/RD) but not used on Excursion.

What circuit is on pin 14 of connector C264?

Pin 14 carries circuit 29 with a yellow/white (YE/WH) wire.

Home/ Registry/ Ford/ Excursion/ 2000-2005/ “Diesel Wagon”/ Photo supermotors.net/registry/media/454262

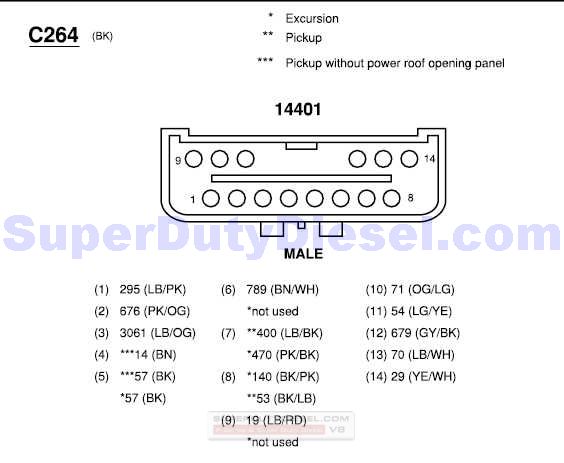

Ford Excursion / Super Duty C264 Connector 14401 Pinout & Wire Colors

C264 14-pin male connector pinout with circuit numbers and wire color codes

‹ ›

Connector pinout diagram for C264 listing 14 pins with circuit numbers and wire color codes.

AI caption November 2006 · Photo 103 of 118

This document is a connector pinout reference for Ford connector C264, a black (BK) 14-pin male connector identified with base part number 14401. A face-view diagram shows the pin arrangement: pins 1–8 across the bottom row and pins 9–14 across the top row. A legend explains applicability footnotes: a single asterisk (*) denotes Excursion, a double asterisk (**) denotes Pickup, and a triple asterisk (***) denotes Pickup without power roof opening panel. The table lists each pin's circuit number and wire color: pin 1 = 295 (LB/PK), pin 2 = 676 (PK/OG), pin 3 = 3061 (LB/OG), pin 4 = ***14 (BN), pin 5 = ***57 (BK) or *57 (BK), pin 6 = 789 (BN/WH) or *not used, pin 7 = **400 (LB/BK) or *470 (PK/BK), pin 8 = *140 (BK/PK) or **53 (BK/LB), pin 9 = 19 (LB/RD) or *not used, pin 10 = 71 (OG/LG), pin 11 = 54 (LG/YE), pin 12 = 679 (GY/BK), pin 13 = 70 (LB/WH), pin 14 = 29 (YE/WH). Useful for diagnosing wiring at this connector on Excursion and Super Duty pickup models.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is connector C264 on the Ford Excursion?: C264 is a black (BK) 14-pin male connector, part designation 14401, with pins 1–8 on the bottom row and 9–14 on the top row.
What do the asterisks mean in the C264 pinout table?: * means Excursion, ** means Pickup, and *** means Pickup without power roof opening panel.
What wire color is on pin 1 of C264?: Pin 1 is circuit 295 with a light blue/pink (LB/PK) wire.
Which pins of C264 differ between the Excursion and the Pickup?: Pin 5 is circuit 57 (BK) on both Pickup without power roof (***) and Excursion (*); pin 6 is 789 (BN/WH) but not used on Excursion; pin 7 is 400 (LB/BK) on Pickup and 470 (PK/BK) on Excursion; pin 8 is 140 (BK/PK) on Excursion and 53 (BK/LB) on Pickup; pin 9 is 19 (LB/RD) but not used on Excursion.
What circuit is on pin 14 of connector C264?: Pin 14 carries circuit 29 with a yellow/white (YE/WH) wire.
