Ford C911 Connector Pinout - Electrochromatic Auto-Dim Mirror Wiring (17C712)

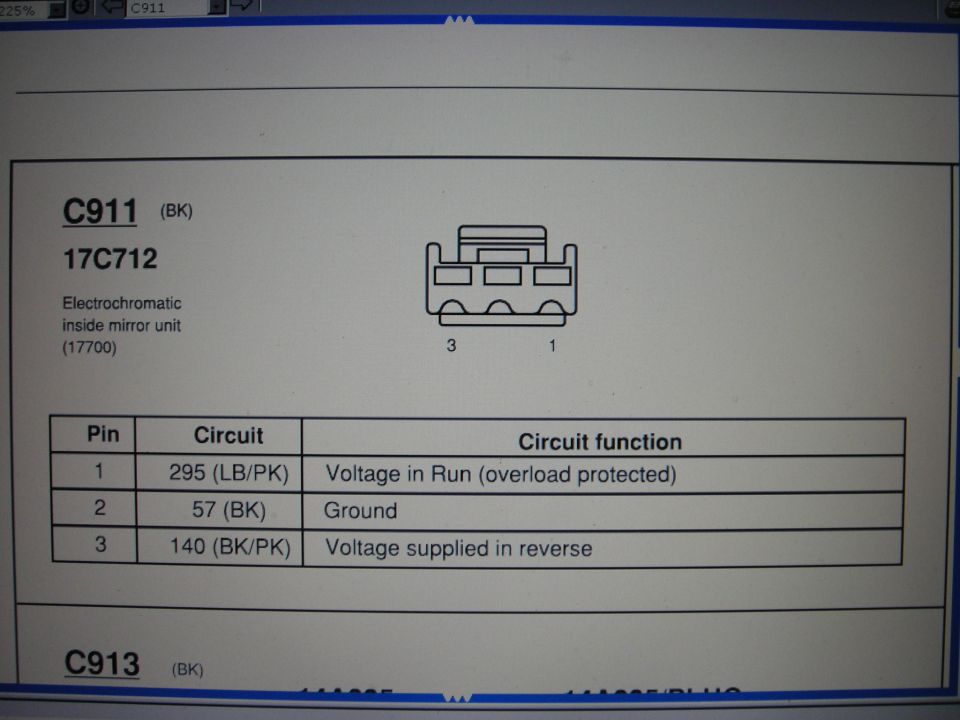

This document is a photographed screen capture of a Ford wiring reference page showing the pinout for connector C911, a black (BK) 3-pin connector for the Electrochromatic inside mirror unit (base part number 17700, connector part reference 17C712). The page includes a connector face illustration with cavity positions 3 and 1 labeled, and a pin table listing each pin's circuit number, wire color, and function: Pin 1 carries circuit 295 with a Light Blue/Pink (LB/PK) wire providing voltage in Run (overload protected); Pin 2 carries circuit 57 with a Black (BK) wire serving as ground; and Pin 3 carries circuit 140 with a Black/Pink (BK/PK) wire providing voltage supplied in reverse. The heading of the next connector entry, C913 (BK), is visible at the bottom of the page but its details are cut off. A reader can use this document to identify the wire colors and functions needed to wire or troubleshoot an auto-dimming (electrochromatic) rear-view mirror, such as when retrofitting one into a Ford vehicle — the reverse-voltage input suggests the mirror disables dimming when backing up.
