What camshaft was used in this engine build?

A Comp Cams X-Treme Energy #268 camshaft with reduced overlap technology, giving a smooth idle and maximum power/torque between 2,000 and 5,200 rpm. The kit included a timing set, lifters, springs, retainers, locks, and the camshaft.

What compression ratio did the rebuilt engine end up with?

With a 0.303-inch overbore and 0.025 inch removed from the cylinder head surface, the deep-dish Silv-O-Lite pistons produced a static compression ratio of 9.45:1.

How much does a three-angle valve job cost according to this article?

An average of $125-$175. Assembling the heads yourself saves about $50, and lapping the valves by hand before assembly gives a better seat seal.

How was the crankshaft machined?

It was turned 0.010/0.010 inch undersize, keeping the standard fillet radius on each journal. The journals were polished and the oil holes chamfered at no extra charge.

Why were cast-iron valve guides chosen over bronze silicon guides?

Cast-iron guides don't wear the valve stem like bronze silicon guides, are best for street use with unleaded fuel, and are far less costly.

Home/ Registry/ Ford/ F-150/ 1975-1979/ 1979 Ford F-150/ Photo supermotors.net/registry/media/516743

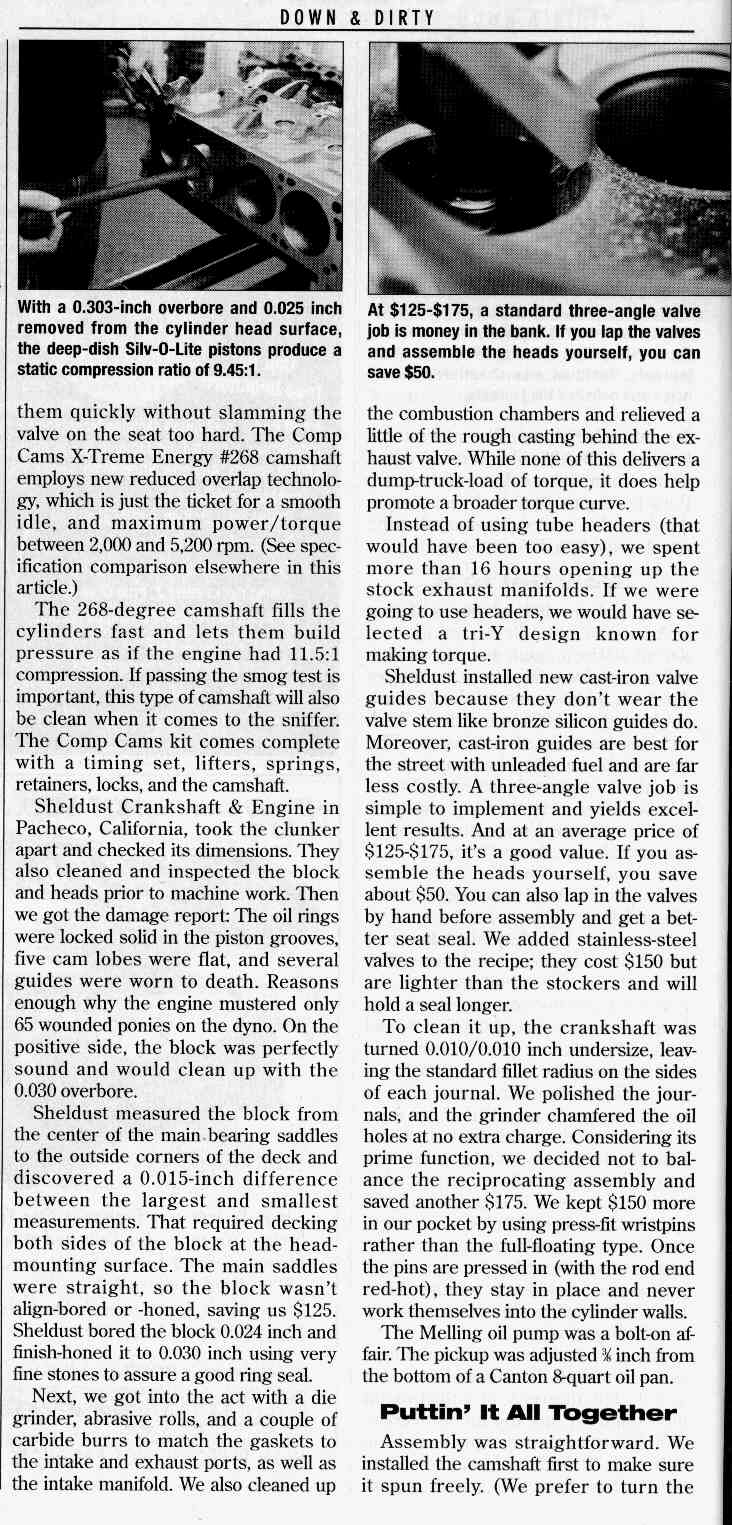

Ford 400 Engine Budget Rebuild Article – Cam, Machine Work & Valve Job (Page 3)

Down & Dirty engine rebuild article: 406 Ford build with Comp Cams XE268 cam and 9.45:1 pistons

‹ ›

Magazine engine-rebuild feature describing a 406 Ford build using Silv-O-Lite dished pistons for 9.45:1 compression and a Comp Cams Xtreme Energy 268 cam for power/torque from 2,000-5,200 rpm.

AI caption May 2007 · Photo 991 of 2964

This is one page of a multi-page magazine article (running head "DOWN & DIRTY") documenting a budget-minded engine rebuild. The page describes machine work and parts selection: a Comp Cams X-Treme Energy #268 camshaft with reduced overlap for smooth idle and power/torque from 2,000-5,200 rpm, supplied as a kit with timing set, lifters, springs, retainers, locks, and camshaft. Sheldust Crankshaft & Engine in Pacheco, California disassembled and inspected the engine, finding locked oil rings, five flat cam lobes, and worn valve guides — explaining a weak 65 hp dyno result. The block was decked (0.015-inch deck variance), bored 0.024 inch and finish-honed to 0.030 over; align-boring was unnecessary, saving $125. Photo captions note deep-dish Silv-O-Lite pistons producing a 9.45:1 static compression ratio, and a $125-$175 three-angle valve job (DIY head assembly saves ~$50). The heads received cast-iron valve guides, stainless-steel valves ($150), and gasket-matched ports; stock exhaust manifolds were ported over 16 hours instead of using headers. The crank was turned 0.010/0.010 undersize with polished journals; balancing was skipped ($175 saved) and press-fit wristpins used ($150 saved). A Melling oil pump and Canton 8-quart pan were fitted, with pickup set ⅜ inch from the pan floor. The page ends as assembly begins.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What camshaft was used in this engine build?: A Comp Cams X-Treme Energy #268 camshaft with reduced overlap technology, giving a smooth idle and maximum power/torque between 2,000 and 5,200 rpm. The kit included a timing set, lifters, springs, retainers, locks, and the camshaft.
What compression ratio did the rebuilt engine end up with?: With a 0.303-inch overbore and 0.025 inch removed from the cylinder head surface, the deep-dish Silv-O-Lite pistons produced a static compression ratio of 9.45:1.
How much does a three-angle valve job cost according to this article?: An average of $125-$175. Assembling the heads yourself saves about $50, and lapping the valves by hand before assembly gives a better seat seal.
How was the crankshaft machined?: It was turned 0.010/0.010 inch undersize, keeping the standard fillet radius on each journal. The journals were polished and the oil holes chamfered at no extra charge.
Why were cast-iron valve guides chosen over bronze silicon guides?: Cast-iron guides don't wear the valve stem like bronze silicon guides, are best for street use with unleaded fuel, and are far less costly.
