Ford V8 Coolant Flow Diagram - Cooling System Schematic & Part Numbers

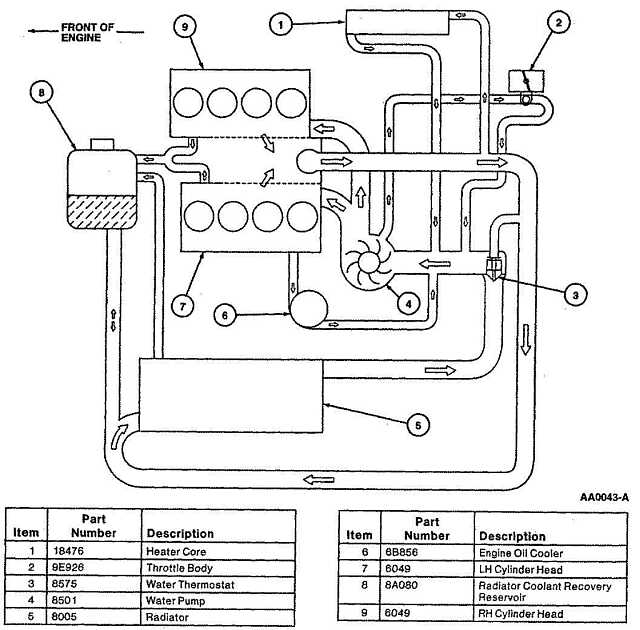

This document is a schematic diagram showing the coolant flow path through a Ford V8 engine's cooling system. The diagram is oriented with the front of the engine indicated at the upper left, and directional arrows throughout illustrate how coolant circulates. Nine numbered callouts identify the major components, which are listed in two legend tables with Ford base part numbers: (1) Heater Core 18476, (2) Throttle Body 9E926, (3) Water Thermostat 8575, (4) Water Pump 8501, (5) Radiator 8005, (6) Engine Oil Cooler 6B856, (7) LH Cylinder Head 6049, (8) Radiator Coolant Recovery Reservoir 8A080, and (9) RH Cylinder Head 6049. From this diagram a reader can trace coolant routing from the water pump through both cylinder banks, past the thermostat, and through the radiator, heater core, throttle body, engine oil cooler, and coolant recovery reservoir. The illustration carries the Ford figure identifier AA0043-A. The document is undated and does not state a specific model year, model, or engine displacement, though it was uploaded to a 1997 Ford Taurus gallery with the filename 'V8_Coolant_flow.jpg'. It is useful for diagnosing cooling system problems and understanding component locations and coolant circulation order.
