What resistance should the wiper switch circuit show in each position?

Between terminals 684 (PK/Y) and 682 (DB): OFF = 47.6k ohm, INT = 11.33k ohm, LO = 4.08k ohm, and HI = closed circuit.

How do I test the washer switch circuit on the multi-function switch?

Connect a self-powered test light or ohmmeter to terminals 680 (LB/O) and 682 (DB). With the wiper switch OFF, pushing the washer switch in should show a closed circuit and releasing it should show an open circuit.

What are the interval time adjust resistance values?

Measured between 608 (LB/O) and 682 (DB): INT Max (#1 detent) = 103K ohms, #2 = 82.3K ohms, #3 = 66.3K ohms, #4 = 51.3K ohms, #5 = 36.3K ohms, #6 = 20.3K ohms, #7 = 3.3K ohms.

What wire colors correspond to the wiper/washer circuits at the switch connector?

684 is PK/Y (wiper switch), 682 is DB (common/ground side), and 680 is LB/O (washer switch). Other terminals shown include 383 (R/W), 385 (W/R), 1039 (BK/Y), and 196 (DB/O).

Home/ Registry/ Ford/ Taurus/ 1996-1999/ 1997 Ford Taurus/ Photo supermotors.net/registry/media/590606

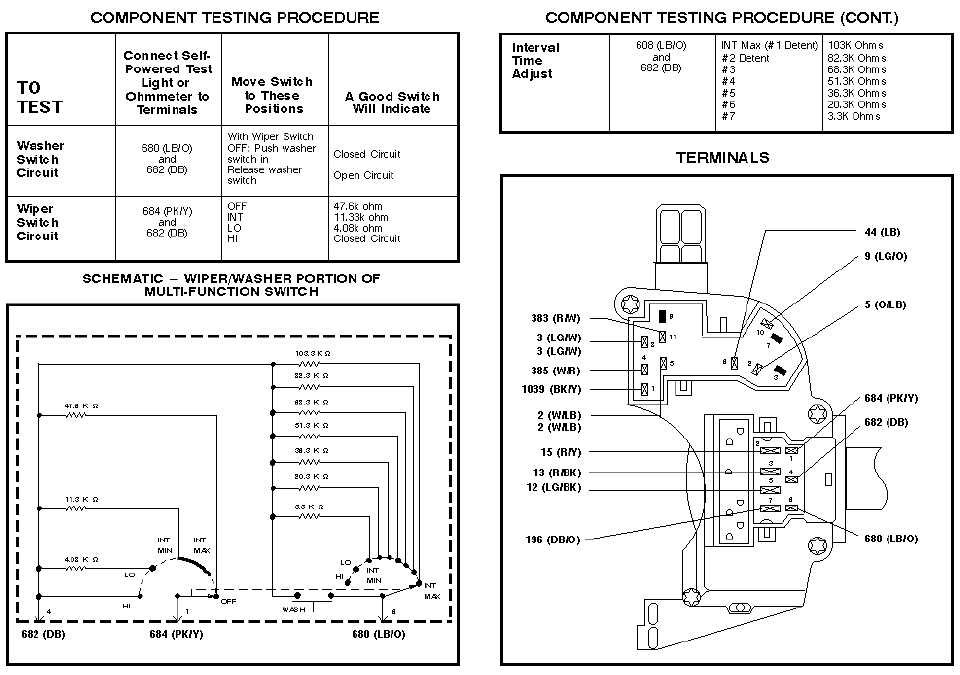

Ford Taurus Multi-Function Switch Wiper/Washer Testing & Terminal Diagram

Wiper/washer multi-function switch testing chart, schematic and terminal layout

‹ ›

Component testing procedure and schematic for the wiper/washer multi-function switch with resistance values and color-coded terminals.

AI caption December 2007 · Photo 345 of 579

This document is a component testing procedure and schematic for the wiper/washer portion of a Ford multi-function switch (steering column switch). A table explains how to test the washer switch circuit (using an ohmmeter or self-powered test light between terminals 680 LB/O and 682 DB, expecting a closed circuit when the washer button is pushed and open circuit when released) and the wiper switch circuit (between 684 PK/Y and 682 DB, expecting 47.6k ohms in OFF, 11.33k ohms in INT, 4.08k ohms in LO, and a closed circuit in HI). A continuation table covers the interval time adjust function between 608 (LB/O) and 682 (DB), listing resistance values for detents #1 through #7 ranging from 103K ohms down to 3.3K ohms. A schematic diagram shows the internal resistor network of the switch with individual resistance values and switch positions (OFF, INT MIN/MAX, LO, HI, WASH). A terminals diagram identifies the physical connector cavities of the multi-function switch with circuit numbers and wire colors, including 383 (R/W), 385 (W/R), 1039 (BK/Y), 196 (DB/O), 684 (PK/Y), 682 (DB), and 680 (LB/O). This allows diagnosis of wiper/washer problems by resistance testing at the switch connector.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What resistance should the wiper switch circuit show in each position?: Between terminals 684 (PK/Y) and 682 (DB): OFF = 47.6k ohm, INT = 11.33k ohm, LO = 4.08k ohm, and HI = closed circuit.
How do I test the washer switch circuit on the multi-function switch?: Connect a self-powered test light or ohmmeter to terminals 680 (LB/O) and 682 (DB). With the wiper switch OFF, pushing the washer switch in should show a closed circuit and releasing it should show an open circuit.
What are the interval time adjust resistance values?: Measured between 608 (LB/O) and 682 (DB): INT Max (#1 detent) = 103K ohms, #2 = 82.3K ohms, #3 = 66.3K ohms, #4 = 51.3K ohms, #5 = 36.3K ohms, #6 = 20.3K ohms, #7 = 3.3K ohms.
What wire colors correspond to the wiper/washer circuits at the switch connector?: 684 is PK/Y (wiper switch), 682 is DB (common/ground side), and 680 is LB/O (washer switch). Other terminals shown include 383 (R/W), 385 (W/R), 1039 (BK/Y), and 196 (DB/O).
