Ford Bronco Rock Slider Blueprint - 64" Frame-Mount Slider Dimensions & Weights

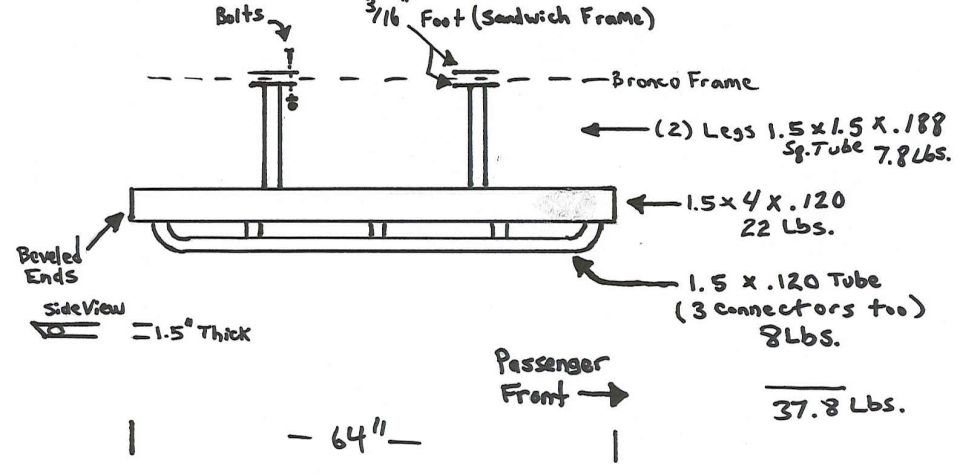

Hand-drawn dimensioned drawing of a tube bumper for a Bronco frame with sizes and weights

‹ ›

Hand-drawn dimensioned fabrication drawing of a 64-inch tube bumper for a Bronco frame, noting tube sizes and weights.

AI caption October 2007 · Photo 863 of 2794

This document is a hand-drawn blueprint/schematic for a rock slider (frame-mounted side step/protection bar) intended to mount to a Ford Bronco frame. The side-view sketch shows a 64-inch-long main slider assembly hanging below the dashed line labeled "Bronco Frame." Mounting is via two legs made of 1.5 x 1.5 x .188 square tube (7.8 lbs total), each topped with a 3/16-inch foot plate that sandwiches the frame and is secured with bolts. The main slider body is 1.5 x 4 x .120 material (22 lbs) with beveled ends, and an outer/lower tube of 1.5 x .120 (which also forms 3 connector pieces, 8 lbs) runs alongside it. A small side-view detail notes the assembly is 1.5 inches thick. The passenger-side front direction is indicated with an arrow, and the total weight of the assembly is calculated at 37.8 lbs. A reader can learn the material sizes, wall thicknesses, overall length, mounting method (bolt-on sandwich plates over the frame rail), and per-component plus total weights needed to fabricate this slider for a Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How long is the slider in this schematic?: The slider is 64 inches long, per the dimension shown at the bottom of the drawing.
What material are the mounting legs made from?: Two legs made of 1.5 x 1.5 x .188 square tube, weighing 7.8 lbs, each with a 3/16" foot that sandwiches the Bronco frame and bolts on.
What is the total weight of the slider assembly?: 37.8 lbs total: 7.8 lbs for the legs, 22 lbs for the 1.5 x 4 x .120 main member, and 8 lbs for the 1.5 x .120 tube and 3 connectors.
How thick is the slider assembly?: The side view note indicates it is 1.5 inches thick.
How does the slider attach to the frame?: It uses bolts through a 3/16" foot plate that sandwiches the Bronco frame.
