Ford A/C Electronic Blend Door Actuator 19E616 Location Diagram (Taurus)

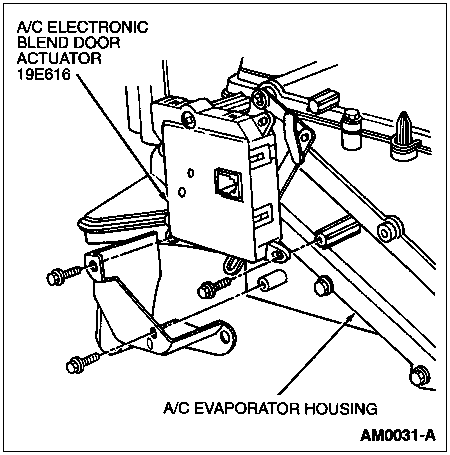

This document is a single line-art illustration from a Ford service manual showing the mounting location of the A/C electronic blend door actuator (Ford base part number 19E616) on the A/C evaporator housing. The drawing depicts the actuator module mounted with several screws to a bracket on the side of the evaporator housing, with callout leader lines identifying the actuator and the housing. The figure carries the Ford illustration reference code AM0031-A. There is no year, model, torque specification, or step-by-step procedure text visible on the page, only the two component labels and the figure number. A reader can learn from this page where the blend door actuator physically sits (on the A/C evaporator housing) and roughly how it is fastened (multiple screws through a mounting bracket), which is useful when diagnosing or replacing a failed blend door actuator that causes loss of temperature control in the HVAC system. The uploader filed this under a 1997 Ford Taurus; the illustration itself contains no applicability statement, so it neither confirms nor contradicts that attribution.
