1963-82 Chevrolet Corvette Chassis Components Diagram - Frame & Body Mounts

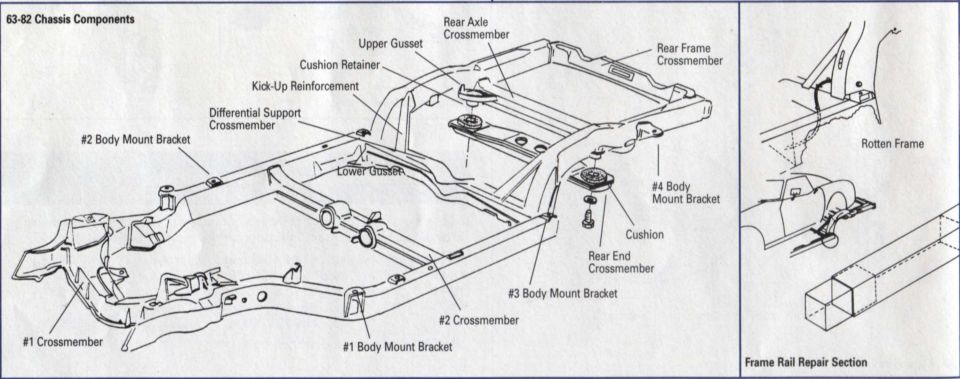

Exploded chassis frame diagram labeling crossmembers, body mount brackets and gussets

‹ ›

Exploded parts diagram of 1963-82 chassis frame components labeling crossmembers, body-mount brackets, and gussets.

AI caption February 2008 · Photo 9 of 46

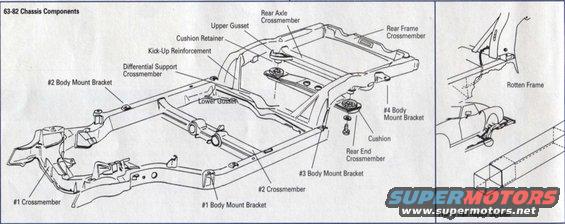

This document is an exploded isometric line drawing titled "63-82 Chassis Components," covering the full frame assembly for 1963–1982 Chevrolet Corvette models. The main illustration shows the complete perimeter frame from front to rear and identifies each major structural component with callout labels: the #1 and #2 crossmembers, the differential support crossmember, rear axle crossmember, rear end crossmember, and rear frame crossmember. Body mounting hardware is called out at four positions (#1 through #4 body mount brackets), along with the associated cushion, cushion retainer, and mounting bolt shown in an exploded detail. Structural reinforcements are also labeled, including the kick-up reinforcement and the upper and lower gussets at the rear kick-up area of the frame. A separate inset panel on the right side illustrates frame rust repair: it shows a "Rotten Frame" condition at the rear frame rail near the body and a "Frame Rail Repair Section," depicted as a boxed replacement rail segment spliced into the existing frame rail. A reader can use this diagram to identify frame component names and locations for restoration, body mount replacement, or frame rail rust repair on a C2/C3 Corvette chassis.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What years does this Corvette chassis components diagram cover?: The document is titled "63-82 Chassis Components," so it covers 1963 through 1982 models.
How many body mount brackets are shown on the frame?: Four body mount brackets are labeled: #1, #2, #3, and #4 body mount brackets.
What crossmembers are identified on the frame?: The diagram labels the #1 crossmember, #2 crossmember, differential support crossmember, rear axle crossmember, rear end crossmember, and rear frame crossmember.
What parts make up the body mount assembly in the exploded detail?: The exploded detail shows a cushion retainer, cushion, washer, and bolt at the body mount bracket.
What does the inset panel on the right side show?: It illustrates a rotten (rusted) frame section and a frame rail repair section, showing a boxed replacement segment for the frame rail.
