1973-77 Corvette Rear Window Frame Exploded View & Storage Tray Bracket I-1209

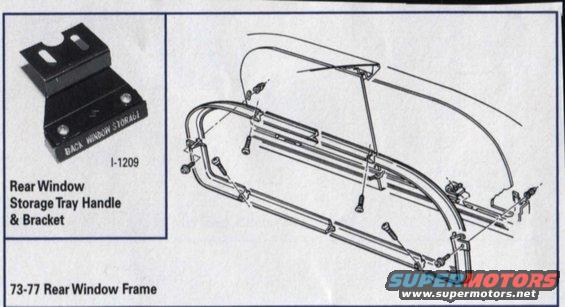

This scanned page from an automotive parts reference shows two related items for 1973-1977 Chevrolet Corvette rear window hardware. On the left, a photograph shows a black metal 'Rear Window Storage Tray Handle & Bracket' (part reference I-1209), which is stamped 'BACK WINDOW STORAGE' on its face and has slotted mounting holes at the top and screw holes on its angled base. On the right, an exploded-view line drawing captioned '73-77 Rear Window Frame' illustrates the removable rear window frame assembly, showing the frame perimeter, the glass, and multiple screws and latch/clip hardware positioned along the frame edges to indicate assembly locations. No torque values, fastener sizes, or additional part numbers are printed on the drawing itself. A reader can learn what the rear window frame assembly looks like when disassembled, roughly where the fasteners and latch hardware attach around the frame, and what the storage tray handle/bracket component looks like for identification when ordering or restoring the removable rear window storage system on 1973-1977 Corvettes.
