1978-1982 Chevrolet Corvette Glove Box Exploded Parts Diagram

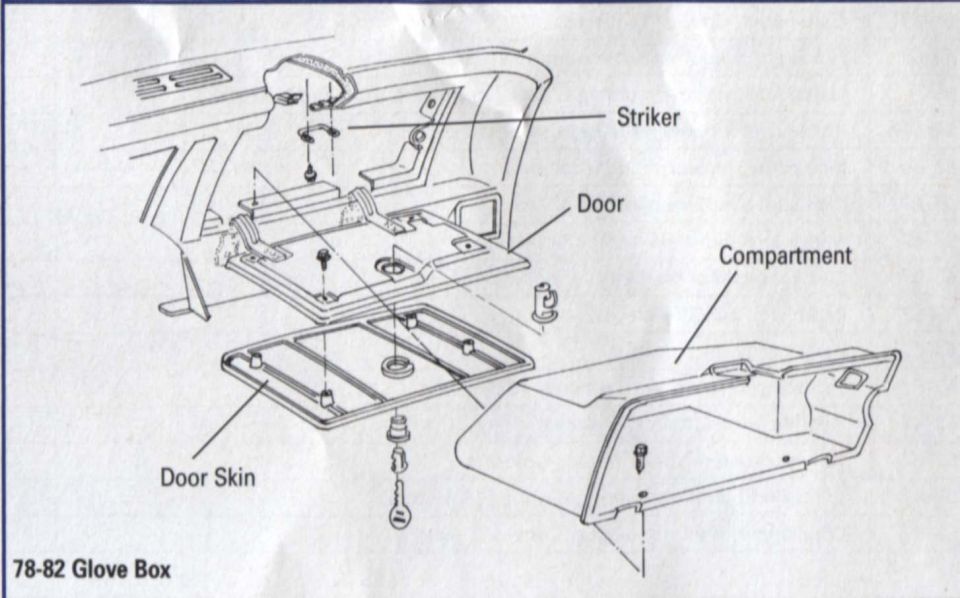

This document is an exploded parts diagram labeled "78-82 Glove Box," illustrating the glove box assembly as installed in the passenger side of the dashboard. The line drawing shows the dash area with the glove box components pulled apart to reveal their relationship and assembly order. Four callouts identify the major components: the Striker (mounted at the top of the glove box opening in the dash, secured with fasteners), the Door (the outer glove box door panel with hinge hardware and mounting screws shown), the Door Skin (the inner liner panel that attaches to the back of the door), and the Compartment (the box/liner that forms the storage cavity behind the door, attached with a screw). Also depicted, though not labeled with text, are small fasteners, bumpers/grommets, and what appears to be a lock cylinder with key beneath the door assembly. A reader can learn the names of the main glove box components, how they stack together (door skin onto door, door onto dash opening, compartment behind), and approximately where fasteners and the striker are located. The diagram carries no part numbers, torque specifications, or written instructions—only the component labels and the year-range title.
