Ford Radiator Support / Front End Assembly Exploded Diagram N10855-C

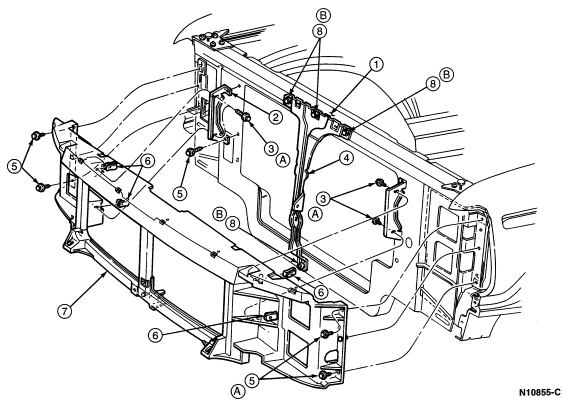

This document is a single-page exploded-view illustration (Ford illustration number N10855-C) showing the installation of a front-end radiator support / grille opening panel assembly onto a vehicle's frame and front body structure. Numbered circular callouts 1 through 8 identify individual components and fasteners, while circled letters A and B mark fastener or detail references at multiple attachment points. Callout 7 points to the large radiator support panel itself; callouts 5 and 6 indicate bolts/fasteners along the lower and side mounting points; callouts 1–4 and 8 identify brackets and attachment hardware at the upper crossmember and cowl area. The drawing shows the relative position of the support to the frame rails, fender aprons, and front structure, with arrows indicating fastener installation directions. No legend, parts list, torque specifications, or text descriptions accompany the illustration on this page, so component identities for each callout number must come from an accompanying service-procedure page not included in this scan. The illustration style and structure depicted are consistent with a full-size Ford truck front end rather than a Mustang, despite being filed under a 2007 Mustang gallery.
