wiring84.jpg Wiring Diagram for '84 Bronco & F-series (gas). IF THE IMAGE IS TOO SMALL, click it. Similar to '80-91 Bronco & F-series (gas). See also: http://www.revbase.com/BBBMotor/Wd [url=http://www.supermotors.net/registry/media/849725][img]http://www.supermotors.net/getfile/849725/thumbnail/fusesblades.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/830776][img]http://www.supermotors.net/getfile/830776/thumbnail/fusiblelinkrepair.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/832986][img]http://www.supermotors.net/getfile/832986/thumbnail/bulbsfuseswire.jpg[/img][/url] https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf For '79 & similar trucks, see: http://www.supermotors.net/registry/24302/78593-2
wiring84.jpg | Hits: 26722 | Posted on: 3/15/09 | View original size (1000.07 KB)

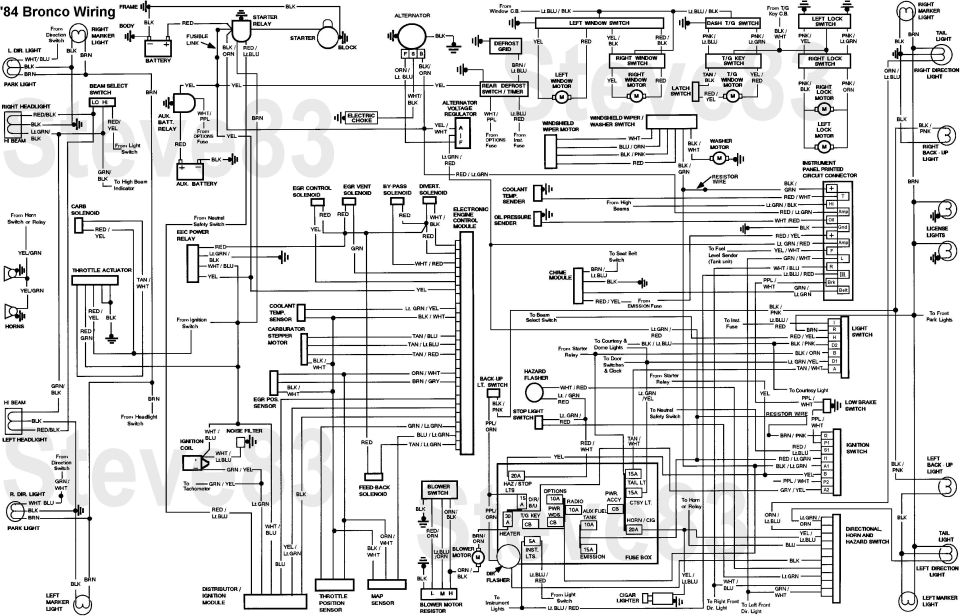

Wiring Diagram for '84 Bronco & F-series (gas).
IF THE IMAGE IS TOO SMALL, click it.

Similar to '80-91 Bronco & F-series (gas).

See also:
http://www.revbase.com/BBBMotor/Wd

. .

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

For '79 & similar trucks, see:
http://www.supermotors.net/registry/24302/78593-2
