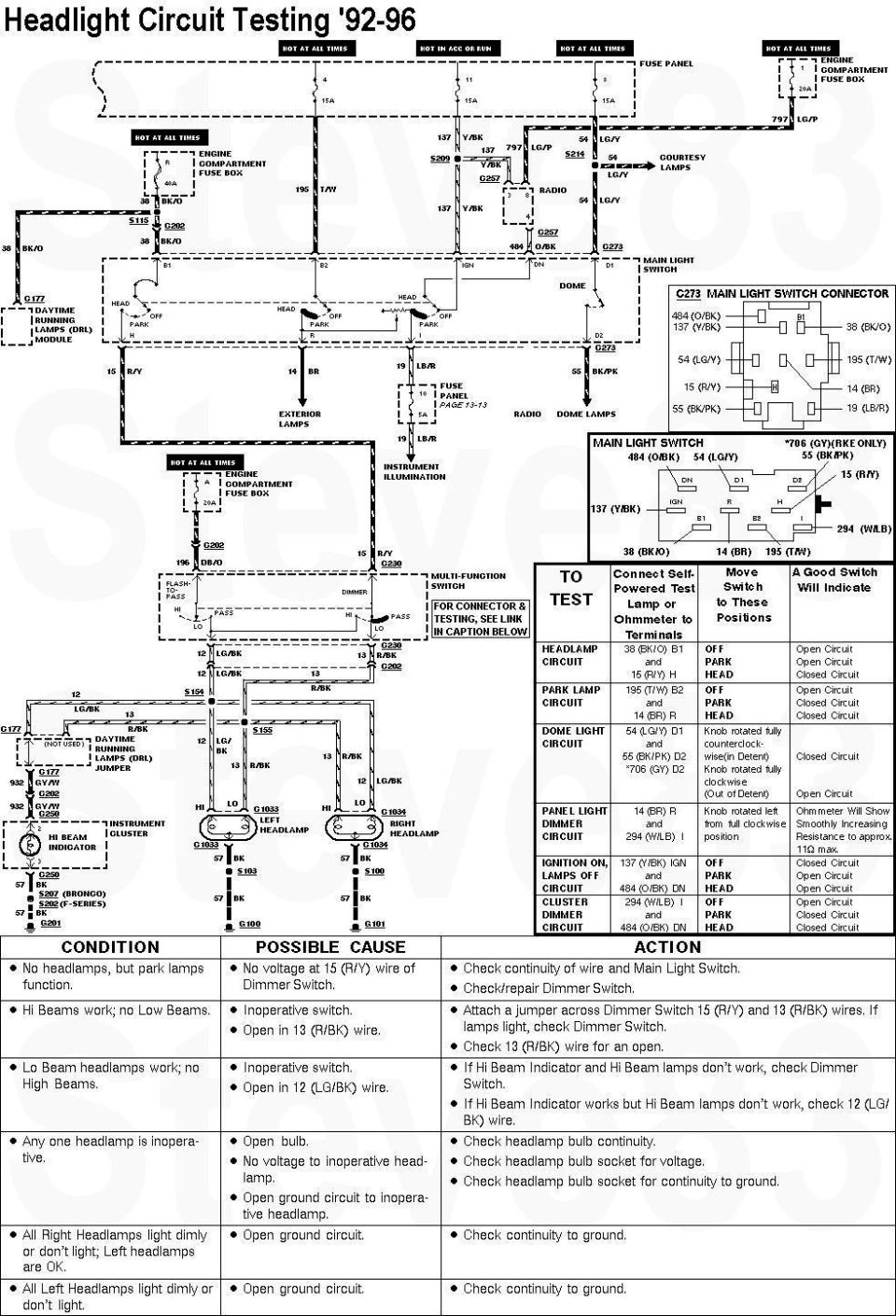

headlights92.jpg Headlight Circuit '92-96
IF THE IMAGE IS TOO SMALL, click it.
'78-91 similar

Terminal "I" is the dimmed output to the instrument cluster & dash.  At some point, Ford renamed the wire between the switch & fuse from 19 LB/R to 294 W/LB to distinguish it from the rest of 19 LB/R.

The only significant difference between '92-96 and '80-91 is that the MFS's DIMMER switch replaced the older floor-mounted stomp-style beam select switch, but (other than Flash-To-Pass) they perform the same function.

[url=http://www.supermotors.net/vehicles/registry/media/225114][img]http://www.supermotors.net/getfile/225114/thumbnail/mfs-testing.jpg[/img][/url]
http://www.revbase.com/BBBMotor/Wd
headlights92.jpg | Hits: 11680 | Posted on: 12/14/08 | View original size (300.41 KB)

Headlight Circuit '92-96
IF THE IMAGE IS TOO SMALL, click it.
'78-91 similar

Terminal "I" is the dimmed output to the instrument cluster & dash. At some point, Ford renamed the wire between the switch & fuse from 19 LB/R to 294 W/LB to distinguish it from the rest of 19 LB/R.

The only significant difference between '92-96 and '80-91 is that the MFS's DIMMER switch replaced the older floor-mounted stomp-style beam select switch, but (other than Flash-To-Pass) they perform the same function.
