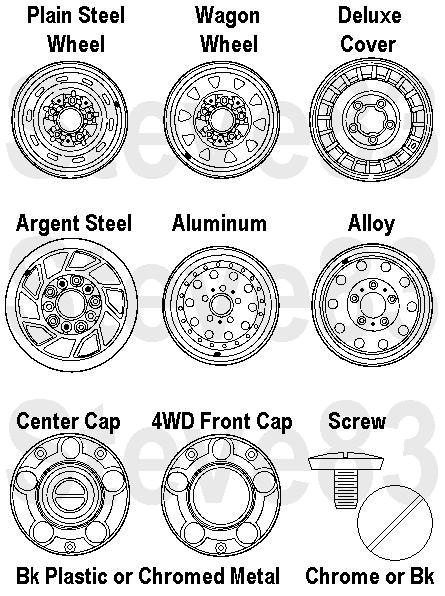

Line-art reference chart of wheel types and hub caps

Rims & Hubcaps

. . .

The design labeled "Argent Steel" should actually be called "Styled Steel". It was available both in Argent finish (silver paint) and in chrome.

Aluminum was used up to '93. Alloy is also called Alcoa.

Center caps are red up to '94, then black.

D7TZ-1130-A Wheel Cover 10.75"
D7TZ-1130-B Wheel Cover 10.75" 4WD front
E2TZ-1130-A Center Cap 7.125"OD, chrome w/red insert
E2TZ-1130-B Center Cap 7.125"OD, chrome 4WD front
E2TZ-1130-C Center Cap 7.125"OD, argent w/red insert
E2TZ-1130-D Center Cap 7.125"OD, argent 4WD front
F5TZ-1130-D Center Cap 7.125"OD, chrome w/black insert
F2TZ-1130-A FOMOCO Dog Dish
F2UZ-1130-C FOMOCO Dog Dish, 4WD front
E1TZ-1130-A Wheel Cover 16.25"
D9TZ-1130-B Wheel Cover 16.25" 4WD front
D8TZ-1015-E Steel Wagon Wheel (10-slot) 15x7"
EOTZ-1015-D Steel Wheel 15x4.5"
YC2Z-1015-AB Steel Plain Wheel 15x5.5"
D8TZ-1015-C Steel Wheel 15x6"
EOTZ-1015-B Steel Wheel 15x7"
D1TZ-1015-A Steel Wheel 16.5x6"
E3TZ-1007-B Steel Styled Wheel, 5-slot
E2TZ-1007-A Cast (Aluminum?) Styled Wheel
D8TZ-1015-C Styled Wire Wheel
F2TZ-1015-A Styled Argent Wheel, 5-spoke
F2TZ-1015-B Styled Chrome Wheel, 5-spoke
FOTZ-1007-A Aluminum Wheel
F4TZ-1007-A Alloy Wheel

Aluminum & Alloy rims use nylon insert D7TZ-1A100-A for the center cap screws.

For torque specs, see this caption:
