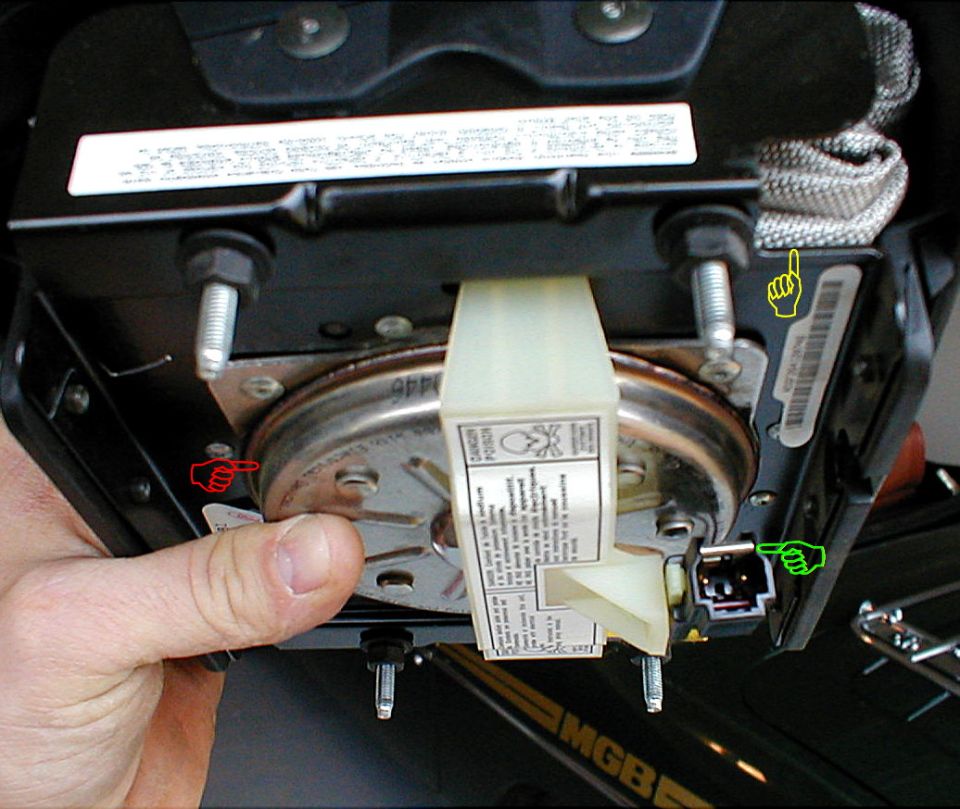

This is the back of a '94-96 airbag, the same for most Ford cars & trucks. Red: shaped charge Yellow: airbag Green: shorting clip inside connector prevents static from detonating the charge while unplugged Any time an airbag is uninstalled, it should be placed face-up (fasteners DOWN) under the vehicle. If it accidentally deploys, it will stay where it is, and not throw anything. See also:  .  .  .  .  .  |
|
![airbag.jpg This is the back of a '94-96 airbag, the same for most Ford cars & trucks.
Red: shaped charge
Yellow: airbag
Green: shorting clip inside connector prevents static from detonating the charge while unplugged
Any time an airbag is uninstalled, it should be placed face-up (fasteners DOWN) under the vehicle. If it accidentally deploys, it will stay where it is, and not throw anything.
See also:
