What is the belt routing for the 3.2L SHO accessory drive belt?

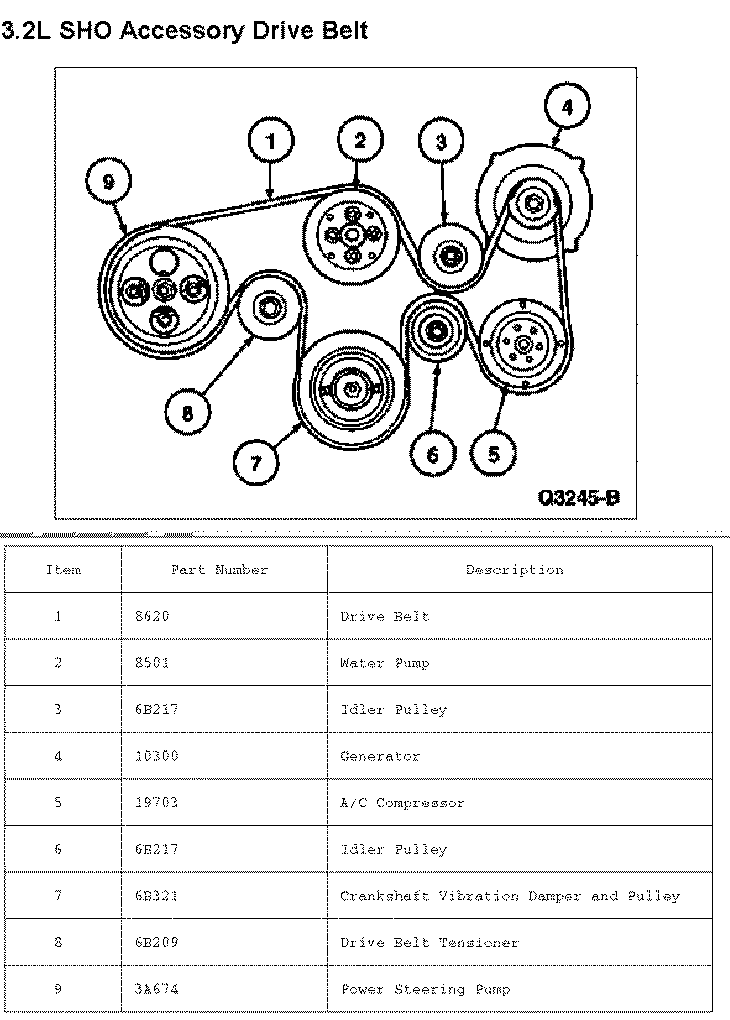

The diagram (reference Q3245-B) shows a single serpentine drive belt (item 1, part 8620) routing around the water pump, two idler pulleys, generator, A/C compressor, crankshaft vibration damper and pulley, drive belt tensioner, and power steering pump.

What is the part number for the 3.2L SHO drive belt?

The drive belt is item 1, part number 8620.

What part number is the 3.2L SHO drive belt tensioner?

The drive belt tensioner is item 8, part number 6B209.

How many idler pulleys does the 3.2L SHO belt system use?

Two idler pulleys are shown (items 3 and 6), both sharing part number 6B217.

What accessories are driven by the 3.2L SHO serpentine belt?

The belt drives the water pump (8501), generator (10300), A/C compressor (19703), and power steering pump (3A674), turning on the crankshaft vibration damper and pulley (6B321).

Home/ Registry/ Ford/ Taurus/ 1992-1995/ 1993 Ford Taurus/ Photo supermotors.net/registry/media/568473

Ford Taurus 3.2L SHO Accessory Drive Belt Routing Diagram & Part Numbers

3.2L SHO accessory drive belt routing diagram with numbered pulleys and a parts list table

‹ ›

Accessory drive belt diagram for the 3.2L SHO with numbered pulleys and a parts list of belt, pumps, pulleys and tensioner.

AI caption September 2007 · Photo 74 of 117

This document is an exploded parts / belt routing diagram for the 3.2L SHO engine's accessory drive belt system. The top portion shows an illustrated routing diagram (reference number Q3245-B) with the serpentine drive belt wrapped around nine numbered components. Below the diagram, a legend table lists each numbered item with its Ford base part number and description: (1) Drive Belt, part 8620; (2) Water Pump, part 8501; (3) Idler Pulley, part 6B217; (4) Generator, part 10300; (5) A/C Compressor, part 19703; (6) a second Idler Pulley, also part 6B217; (7) Crankshaft Vibration Damper and Pulley, part 6B321; (8) Drive Belt Tensioner, part 6B209; and (9) Power Steering Pump, part 3A674. From this document a reader can determine the correct serpentine belt routing path for the 3.2L SHO engine, identify each pulley and driven accessory in the system, and look up the corresponding base part numbers for ordering replacement components such as the belt, tensioner, or idler pulleys. The document itself gives no model year, though the 3.2L SHO engine identifies it as applicable to the Ford Taurus SHO.
