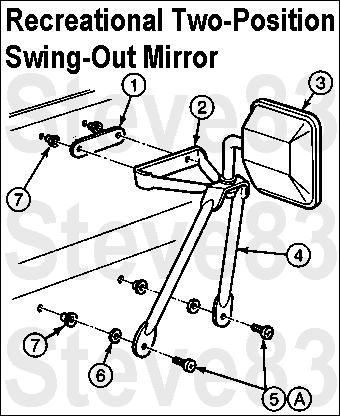

Recreational two-position swing-out mirror exploded line-art dia…

Recreational (Towing) 2-position Side Mirror

1 Outside Rear View Mirror Gasket, Upper 17724
2 Bracket Assembly 17016
3 Outside Rear View Mirror Head 17723
4 Bracket Assembly 17059
5 Screw(s) (4 Req'd) N806345-S47
6 Outside Rear View Mirror Gasket, Lower 17724
7 Rivet-Nut (4 Req'd) N803763-S36
A Tighten to 4-8 N-m (35-71 Lb-In)
