Generator Set Lifting & Tie-Down Data Plate - 33,000 lb Shackles, C.G. Diagram

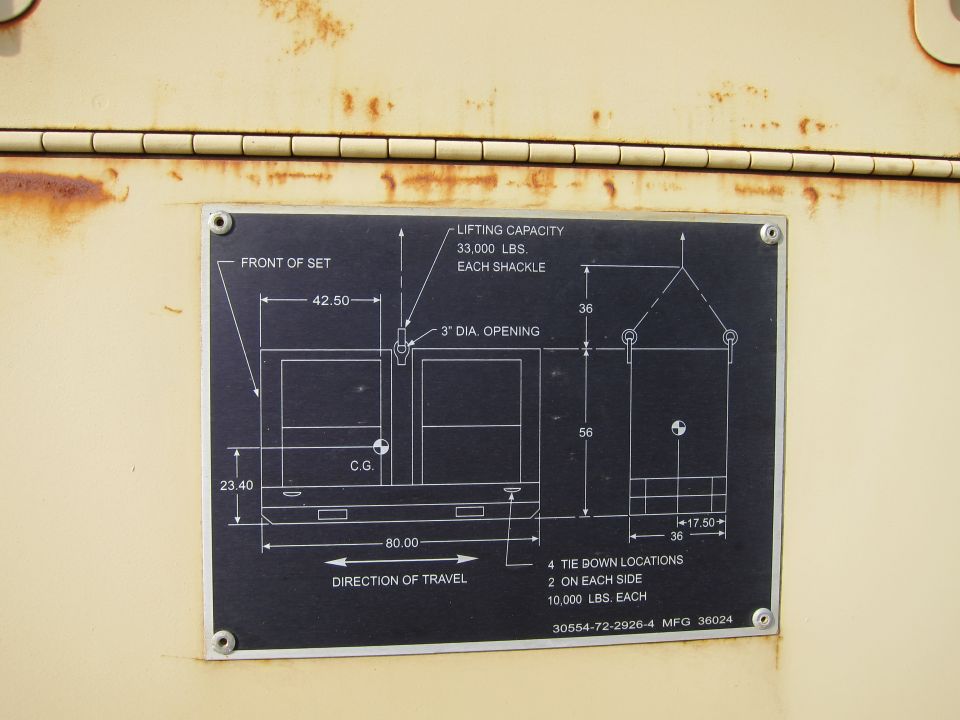

This is a photograph of a riveted metal data/spec plate (lifting and tie-down diagram) mounted on a painted, weathered equipment enclosure — apparently a generator set or similar skid-mounted unit, not an automobile component. The plate shows two engraved line drawings: a side elevation and an end elevation of the unit. It identifies the 'FRONT OF SET,' marks the center of gravity (C.G.), and gives key rigging dimensions: 42.50 from the front to the lifting shackle, 23.40 to the C.G. height, 80.00 overall base length, 56 unit height, 36 overall width, 17.50 to the C.G. in the end view, and 36 sling height above the lift points. The lifting shackle has a 3-inch diameter opening and a rated lifting capacity of 33,000 lbs per shackle. The plate specifies 4 tie-down locations (2 on each side) rated at 10,000 lbs each, and shows the direction of travel. A part/drawing number '30554-72-2926-4 MFG 36024' appears at the bottom right. A reader learns the correct lift points, sling geometry, C.G. location, and tie-down ratings for transporting this unit.
