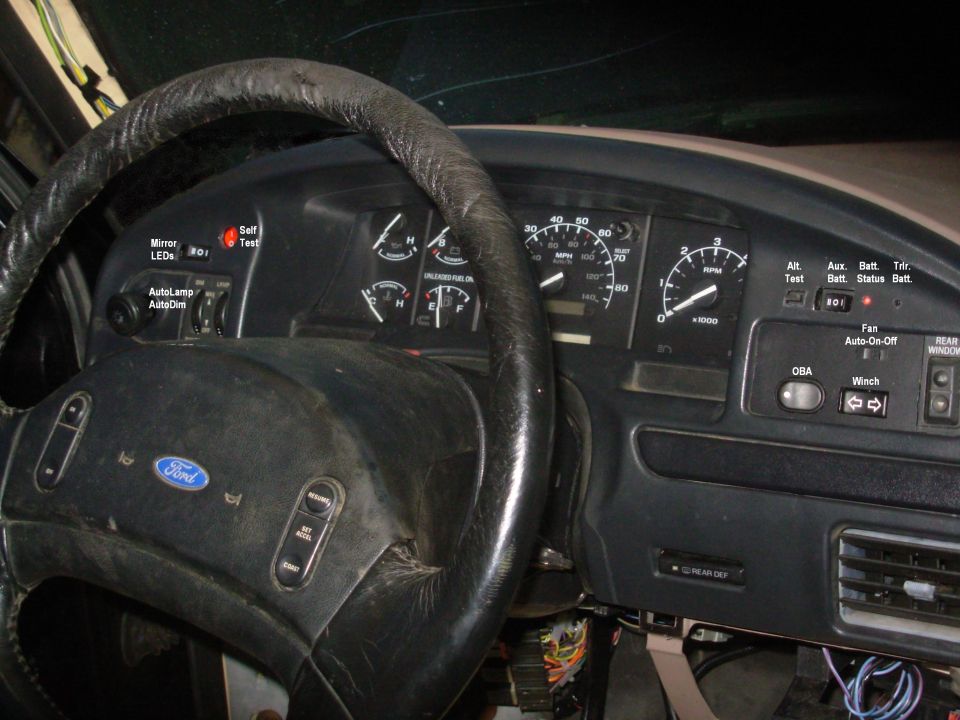

This is the majority of the new switches. They're intentionally DIFFERENT shapes, sizes, & orientations so they're NOT easily confused, even in the dark. I'll make permanent labels for them later...
.
.
The steering wheel is getting swapped!
The 2-color battery status LED is RadioShack 276-0012 (2.8V 30mA) with resistor 271-012 (330 Ohm 1/8W).
The winch switch is a polarity-reversing switch intended for power window, but I'm using it as an SPDT rocker because I like the embossed & painted arrows.
