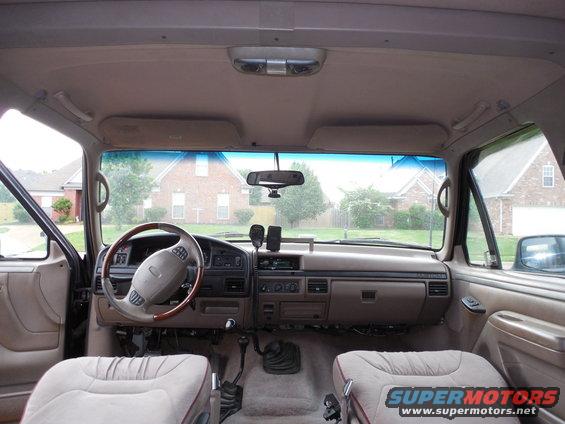

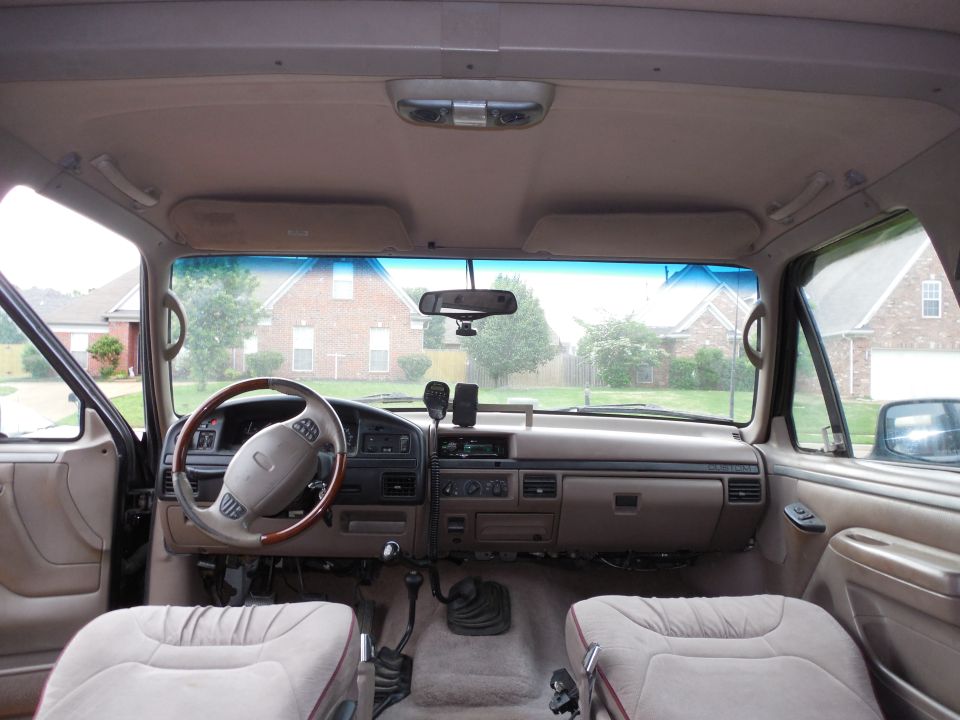

48interior2.jpg RV mirror is wired up; radio & CB are working; carpet & trim are done; hands-free mic is above the mirror; phone caddy works great; so do the grab handles.  I just gotta add USB power, buy & install the steering wheel interface...
IF THE IMAGE IS TOO SMALL, click it.

See also:
[url=https://www.supermotors.net/registry/media/512221][img]https://www.supermotors.net/getfile/512221/thumbnail/radiopinout.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1007142][img]https://www.supermotors.net/getfile/1007142/thumbnail/strwhwiring.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/988712][img]http://www.supermotors.net/getfile/988712/thumbnail/38clusterr.jpg[/img][/url]

Features visible in this pic include (from top left to right, working down):
GM eyeball dome lamp
4 grab handles
Side hooks for sun visors
Quad sun visors
Hands-free mic
Powdercoated [url=https://www.amazon.com/dp/B0001EX6OM]12068 Vent Shades[/url] (tape-in 12688, black 32068, wide black 52068, smoke plastic 92068, in-channel 192068 )
Autodimming compass thermometer RV mirror with AutoBright sensor
Ranger black antenna
Dash [url=https://www.supermotors.net/registry/media/992118]caddy for phone/CB/GPS/etc.[/url]
[url=https://www.amazon.com/dp/B00005N5WW/]Cobra 75WXST CB[/url]
Heated power side mirrors with turn signals & memory (not yet active)
Undermirror LED cornering/off-road light switch above headlight knob
AutoLamp & AutoBright control beside the headlight knob
Lincoln Navigator steering wheel with backlit buttons & [url=http://www.amazon.com/dp/B004HKBY8G/]PAC SWI-RC[/url]
Alternator full-field switch, battery isolation switch & LEDs above Right dash switches
Power inverter switch
E-fan switch
Rear window switch moved to Right dash
OBA switch
Winch [url=https://www.amazon.com/dp/B001TQUARM/]switch[/url]
[url=https://www.amazon.com/dp/B00I8S6B86/]Kenwood KDC-X997[/url]
[url=https://www.amazon.com/dp/B005FE44TO/]Switched[/url] in-dash USB power sockets (Battery-Off-Key)
[url=https://www.amazon.com/dp/B001TQMU5C/]Switches[/url] for PowerPoint & cigar lighter (Battery-Off-Key)
Auxilliary relay block mounted to steering column support under dash
Wiring for clutch-start switch
[url=https://www.supermotors.net/registry/media/665548]Pull-pull[/url] revised temperature blend cables
Powdercoated NP435 shifter
E150 Club Wagon 4-way power plus manual recline captain's chairs with aftermarket heaters
