What fuses power the engine management circuits in this diagram?

Maxi Fuse I 30A (hot at all times), Maxi Fuse U 20A (hot in run or start), Maxi Fuse O 20A (hot at all times), and Fuse E 15A (hot in run).

What wire colors go to the fuel pump relay and fuel pumps?

The fuel pump relay is fed YEL (from Maxi Fuse O 20A) with LT BLU/ORG and RED wires; the fuel pumps are fed RED OR BRN/WHT and BRN/WHT, with ORG wires and BLK grounds.

Which module does this diagram show, PCM or EEC?

Both: the main connector is labeled Powertrain Control Module (1993-95) and Electronic Engine Control Module (1992); a separate Powertrain Control Module connector handles transmission control wires on pins 52, 42, 19, 38, 53, 41, 32 and 55.

What ignition module is used on the 1992 models?

The 1992 models use the TFI Ignition Module, while 1993 models use the Ignition Control Module, both shown in the same box on the diagram.

Home/ Registry/ Ford/ F-150/ 1992-1996/ 1992 Ford F-150/ Photo supermotors.net/registry/media/1005556

1992-95 Ford F-Series & Bronco 5.0L/5.8L Engine Wiring Diagram - PCM/EEC Pinout

Scanned manual page with engine wiring diagram for 1992-94 F-Series and Bronco showing PCM and color-coded circuits

‹ ›

Reference · 1992-1996 F-150All 11 wiring diagrams

1992-95 Ford F-Series & Bronco 5.0L/5.8L Engine Wiring Diagram - PCM/EEC Pinout

Headlight relay wiring diagram with low and high beam relays and 16 GA fusible links to battery

1986-95 Speed Density V8 Truck EEC wiring diagram with ECT, ACT, TPS, MAP, HEGO and VSS sensors

Ignition System 21-2 wiring diagram for 5.0L and 5.8L with EEC module, TFI module and coil

Gray remote mounted TFI ignition module wiring diagram with distributor connector and EEC pins

Ford Mass Air EEC wiring diagram with ECT, ACT, TPS, HEGO, MAF and VSS sensors and eight injectors

Typical Turn Signal System Wiring Diagram - Flasher & Stop Light Switch Circuit

Turn Signal & Stop Light Switch Wiring Diagram - Flasher Circuit Schematic

Ford truck computer pin out chart continued, pins 29-60 with E4OD and 4R70W additions

FordFuelInjection.com truck computer pin outs, pins 1-28, 300, 302/351 and 460 engines

Engine-Driven Welder Generator Wiring Diagram Decal - Schematic Photo

11wiring diagrams1992-1996 Ford F-150 More reference

Dealer window sticker listing MSRP $57,495.00, $25,000.00 dealer markup and $82,894.00 total

Brochure

'94 Ford F-150 certification label with GVWR, GAWR, P235/75R15XL tire data and VIN 1FTEX14N5RKB87945

Spec plate

Wheel Rate Leverage Ratio Diagram - Spring Position vs Wheel (Figure A.1)

Manual page

Marzocchi fork tuning tip for oiling the foam ring under the dust seal, with 2013 update

Service procedure

Exploded parts

Hand-drawn serpentine belt routing with Alt, Idler, Tension, Smog, Fan, Crank, A/C and P/S pulleys

Schematic

1993 Ford F-150 Emissions Vacuum Hose Routing Diagram - Under-Hood Decal

Vacuum routing

Engine wiring diagram from a service manual chassis-electrical chapter with PCM, sensors and color-coded wiring.

Part of 1992-1996 Ford F-150 Wiring Diagrams

AI caption December 2013 · Photo 454 of 713

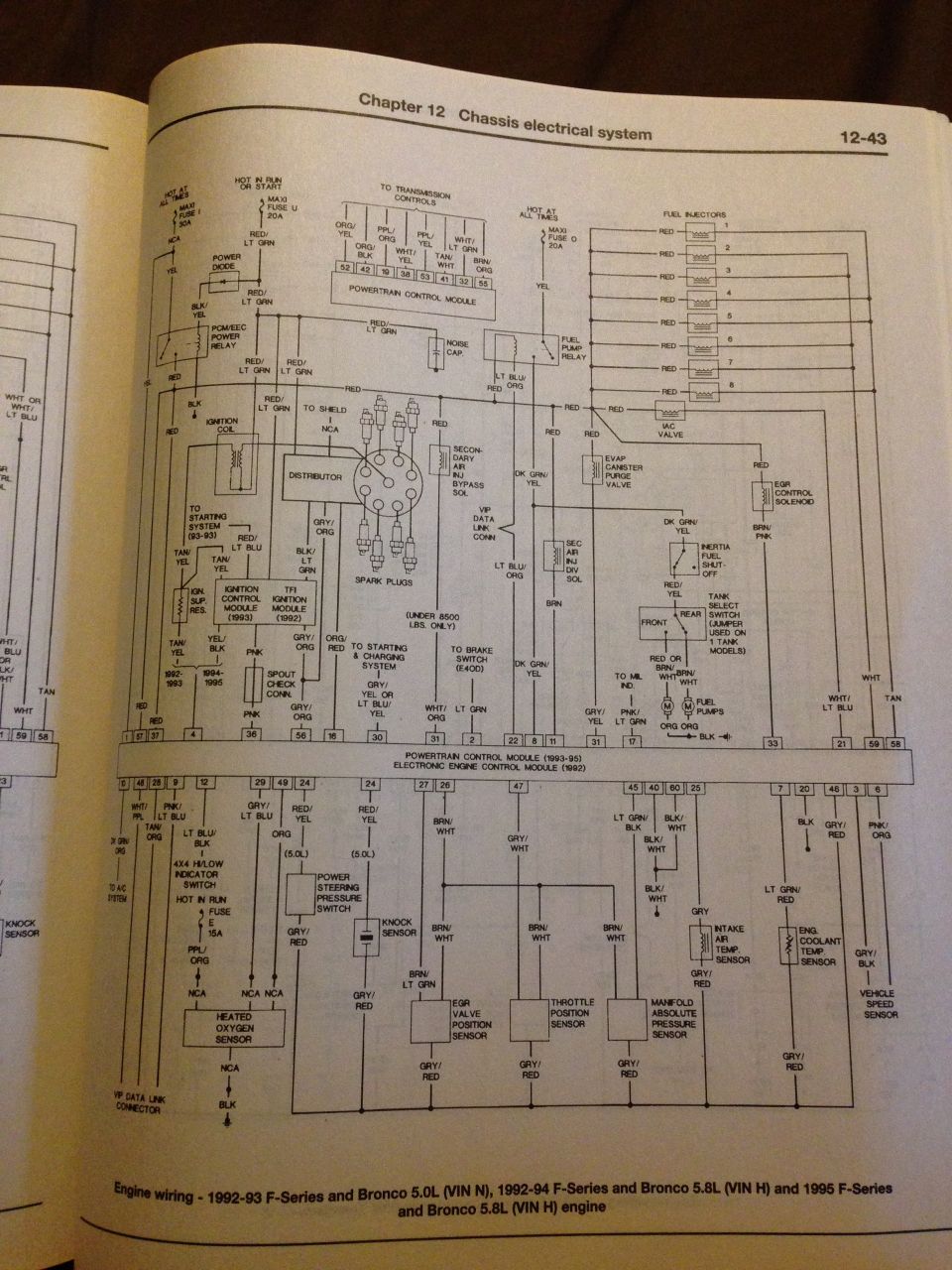

This is page 12-43 from Chapter 12 (Chassis electrical system) of a repair manual, showing the engine wiring diagram for 1992-93 Ford F-Series and Bronco 5.0L (VIN N), 1992-94 F-Series and Bronco 5.8L (VIN H), and 1995 F-Series and Bronco 5.8L (VIN H) engines. The diagram is centered on the Powertrain Control Module (1993-95) / Electronic Engine Control Module (1992) and shows numbered connector pins with wire color codes for all engine management circuits. Components depicted include the PCM/EEC power relay, fuel pump relay, ignition coil, distributor, TFI ignition module (1992) / ignition control module (1993), spark plugs, eight fuel injectors, IAC valve, EVAP canister purge valve, EGR control solenoid, secondary air injection bypass and diverter solenoids, inertia fuel shut-off switch, tank select switch, dual fuel pumps, knock sensor, power steering pressure switch, EGR valve position sensor, throttle position sensor, MAP sensor, intake air temp sensor, engine coolant temp sensor, vehicle speed sensor, heated oxygen sensor, and the VIP data link connector. Power feeds are identified: Maxi Fuse I 30A and Maxi Fuse O 20A (hot at all times), Maxi Fuse U 20A (hot in run or start), and Fuse E 15A (hot in run). A reader can trace any engine sensor or actuator wire by color and PCM pin number.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicles does this engine wiring diagram cover?: 1992-93 F-Series and Bronco 5.0L (VIN N), 1992-94 F-Series and Bronco 5.8L (VIN H), and 1995 F-Series and Bronco 5.8L (VIN H) engines, per the diagram caption.
What fuses power the engine management circuits in this diagram?: Maxi Fuse I 30A (hot at all times), Maxi Fuse U 20A (hot in run or start), Maxi Fuse O 20A (hot at all times), and Fuse E 15A (hot in run).
What wire colors go to the fuel pump relay and fuel pumps?: The fuel pump relay is fed YEL (from Maxi Fuse O 20A) with LT BLU/ORG and RED wires; the fuel pumps are fed RED OR BRN/WHT and BRN/WHT, with ORG wires and BLK grounds.
Which module does this diagram show, PCM or EEC?: Both: the main connector is labeled Powertrain Control Module (1993-95) and Electronic Engine Control Module (1992); a separate Powertrain Control Module connector handles transmission control wires on pins 52, 42, 19, 38, 53, 41, 32 and 55.
What ignition module is used on the 1992 models?: The 1992 models use the TFI Ignition Module, while 1993 models use the Ignition Control Module, both shown in the same box on the diagram.
