What does code 87 mean?

Code 87 indicates a fuel pump primary circuit failure. It is listed three times with different Quick Test Modes (O/C, O/C/R, and O) depending on the application.

What does it mean if no codes are output during self-test?

The chart states 'No Codes: Cannot begin self-test or cannot transmit codes.' Codes not listed do not apply to the vehicle being tested.

What engines does this diagnostic code chart cover?

The columns cover the 2.5L FLC CFI, 3.0L EFI, 3.0L SHO SEFI, and 3.8L AXOD SEFI engine/fuel system combinations.

What does code 99 mean?

Code 99 (engine running test) means the EEC has not learned to control idle; ignore codes 12 & 13.

What do the circled numbers next to the HEGO codes 91 and 92 indicate?

They identify which oxygen sensor is involved: ① Front HEGO, ② Right HEGO, ③ Left HEGO, ④ Rear HEGO.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “The DUDE”/ Photo supermotors.net/registry/media/103633

Ford Taurus/Sable EEC-IV Diagnostic Trouble Codes 53-99 Chart - 2.5L 3.0L 3.8L

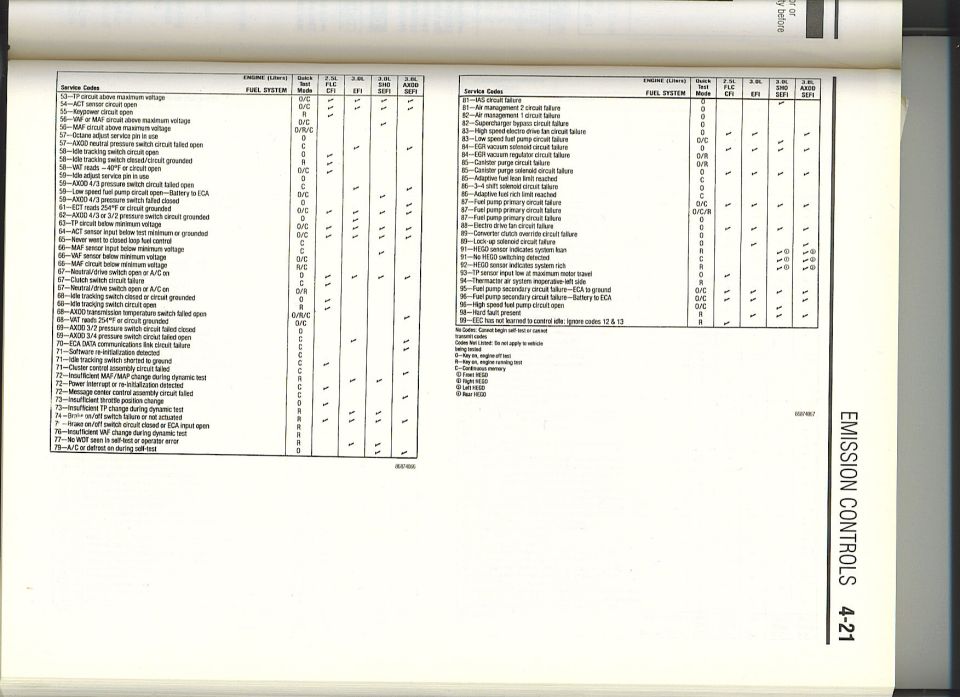

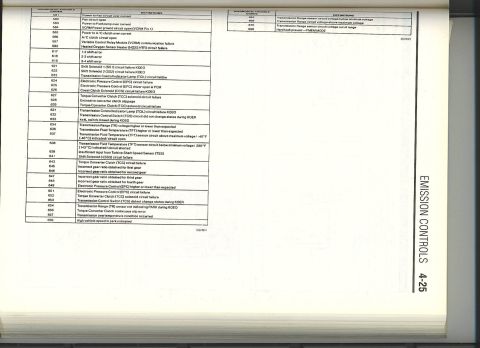

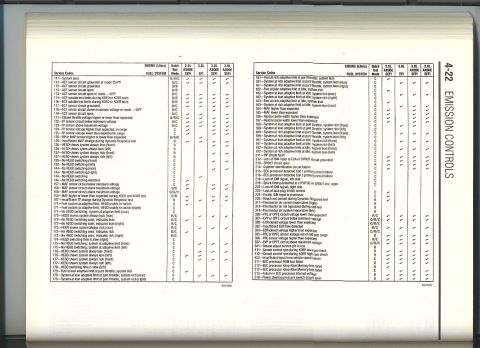

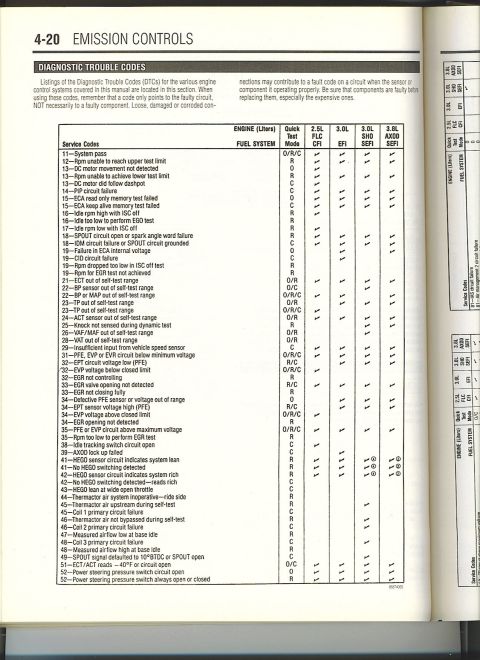

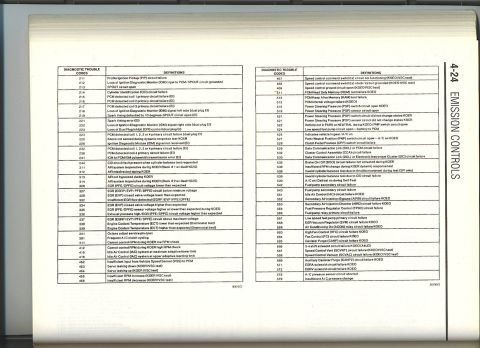

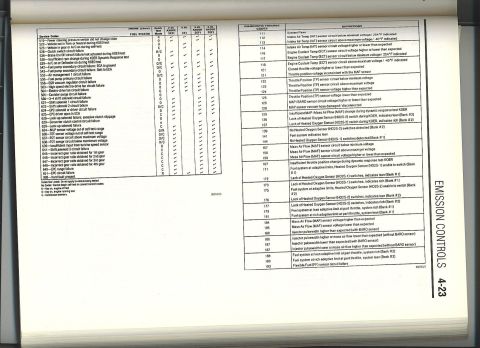

Ford EEC service-code diagnostic chart (Emission Controls 4-2x) listing fault codes by fuel system

‹ ›
