What are the first steps to remove the shift control cable?

Remove the console, disconnect the cable and remove the shifter assembly as outlined, pull back the carpeting, then remove the cable bracket to dash panel retaining screw.

What is the part number of the shift control cable assembly?

The shift control cable assembly is labeled 7E395 in the illustration.

How many bracket retaining screws are required and what is their part number?

Two bracket retaining screws are required, part number N610936-S2.

How do you disengage the rubber grommet from the floorpan?

Push the grommet toward the passenger compartment to disengage it from the floorpan.

What is the part number of the cable retaining bracket at the dash panel?

The cable retaining bracket is part number 7K403.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “SHOZILLA”/ Photo supermotors.net/registry/media/678741

Ford Taurus SHO Shift Control Cable Removal - Service Manual Steps & Parts

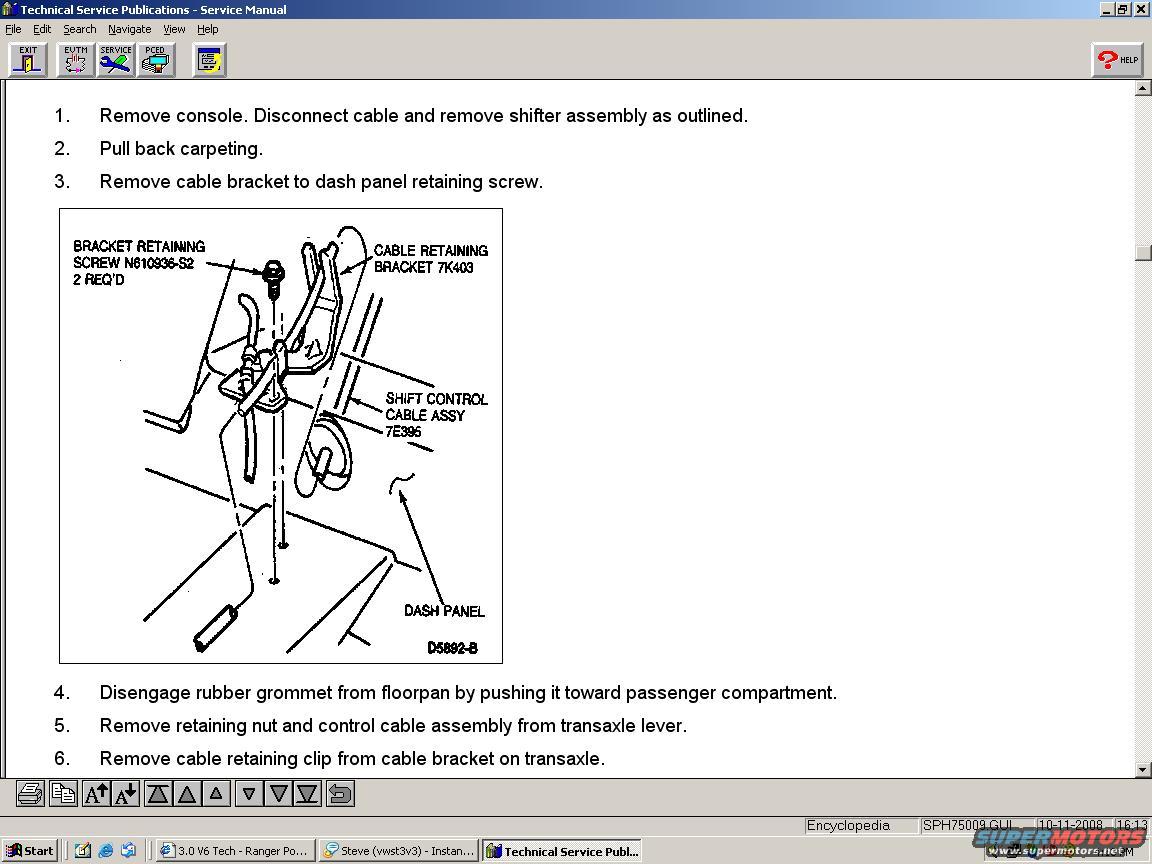

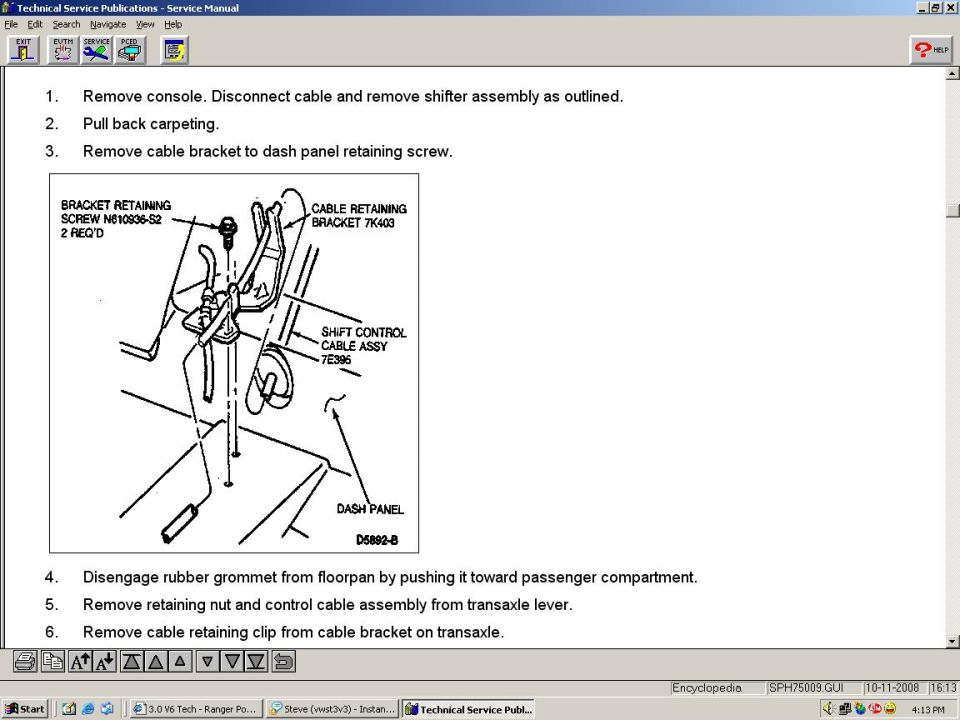

Service manual page with numbered steps and a figure for removing shift control cable assembly

‹ ›

Service manual procedure with numbered steps and a labeled figure for disconnecting and removing the shift control cable bracket and assembly.

AI caption October 2008 · Photo 81 of 83

This document is a screenshot of a page from a Ford Technical Service Publications electronic service manual (file SPH75009.GUI) showing part of a shift control cable removal procedure for a vehicle with a transaxle. Six numbered steps are visible: removing the console and shifter assembly, pulling back the carpeting, removing the cable bracket-to-dash panel retaining screw, disengaging the rubber grommet from the floorpan by pushing it toward the passenger compartment, removing the retaining nut and control cable assembly from the transaxle lever, and removing the cable retaining clip from the cable bracket on the transaxle. A line-art illustration (figure D5892-B) shows the cable installation at the dash panel with labeled components: bracket retaining screws N610936-S2 (2 required), cable retaining bracket 7K403, shift control cable assembly 7E395, and the dash panel. The page gives readers the disassembly sequence and the Ford base part numbers for the shift cable and its retaining hardware. It was uploaded as page one of a two-part set ("sho cable.jpg" and "sho cable2.jpg") associated with a 1993 Ford Taurus SHO shift cable replacement.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the first steps to remove the shift control cable?: Remove the console, disconnect the cable and remove the shifter assembly as outlined, pull back the carpeting, then remove the cable bracket to dash panel retaining screw.
What is the part number of the shift control cable assembly?: The shift control cable assembly is labeled 7E395 in the illustration.
How many bracket retaining screws are required and what is their part number?: Two bracket retaining screws are required, part number N610936-S2.
How do you disengage the rubber grommet from the floorpan?: Push the grommet toward the passenger compartment to disengage it from the floorpan.
What is the part number of the cable retaining bracket at the dash panel?: The cable retaining bracket is part number 7K403.
