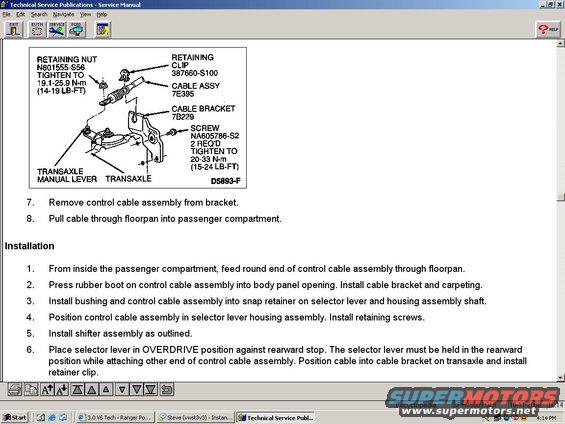

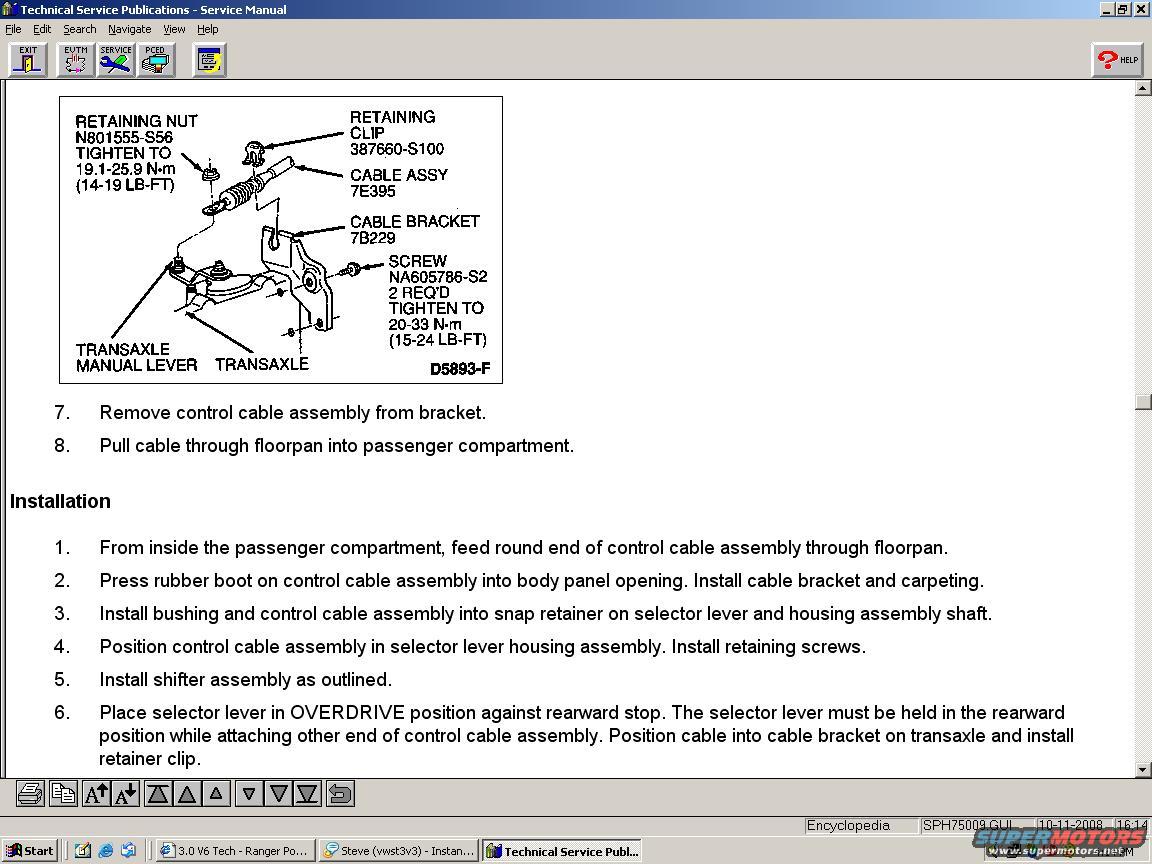

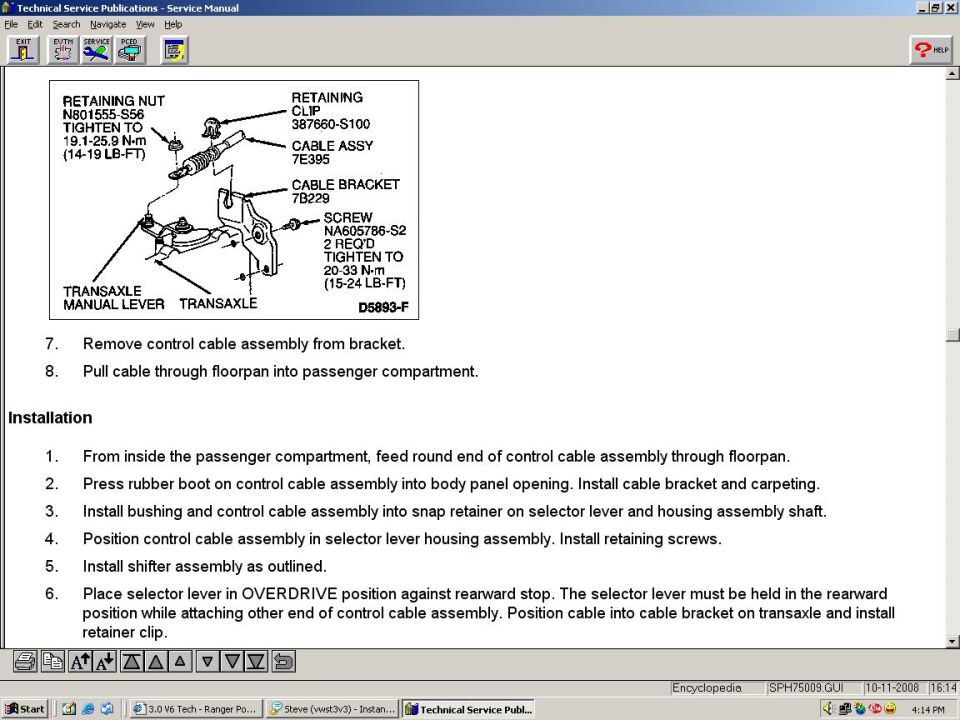

=IQILI Elle m :2an Navigate Mew new i] wlxlql E " :J RETAINING NUT RETAINING #gigrsg , 3/ 387660-3100 19.1-25.9 N~m CABLE ASSV (14-19 LE-Fr) . 72395 /| CABLE BRACKET * 75229 SCREW Q 33' NA605735-SZ xv 2 HEQD TIGHTEN TO .. 20733 N-m THANSMLE (15-24 LB-FT) MANUAL LEVEFI TRANSAXLE 9539: _l 7. Remove control cable assembly from bracket. 8. Pull cable through oorpan into passenger compartment. Installation From inside the passenger compartment, feed round end of control cable assembly through oorpan. Press rubber boot on control cable assembly into body panel opening. Install cable bracket and carpeting. Install bushing and control cable assembly into snap retainer on selector lever and housing assembly shalt. Position control cable assembly in selector lever housing assembly. Install retaining screws. Install shilter assembly as outlined. PPFPNT Place selector lever in OVERDRIVE position against rearward stop. The selector lever must be held in the rearward position while attaching other end of control cable assembly. Position cable into cable bracket on transaxle and install retainer clip. DAMx IA A v VIE 35.... II 3} p a; II aauvmemtanw @stev.(vwsma).xnstan Hummustuh... IEmJ/clupedla Ispwannacul Imr 72m new
