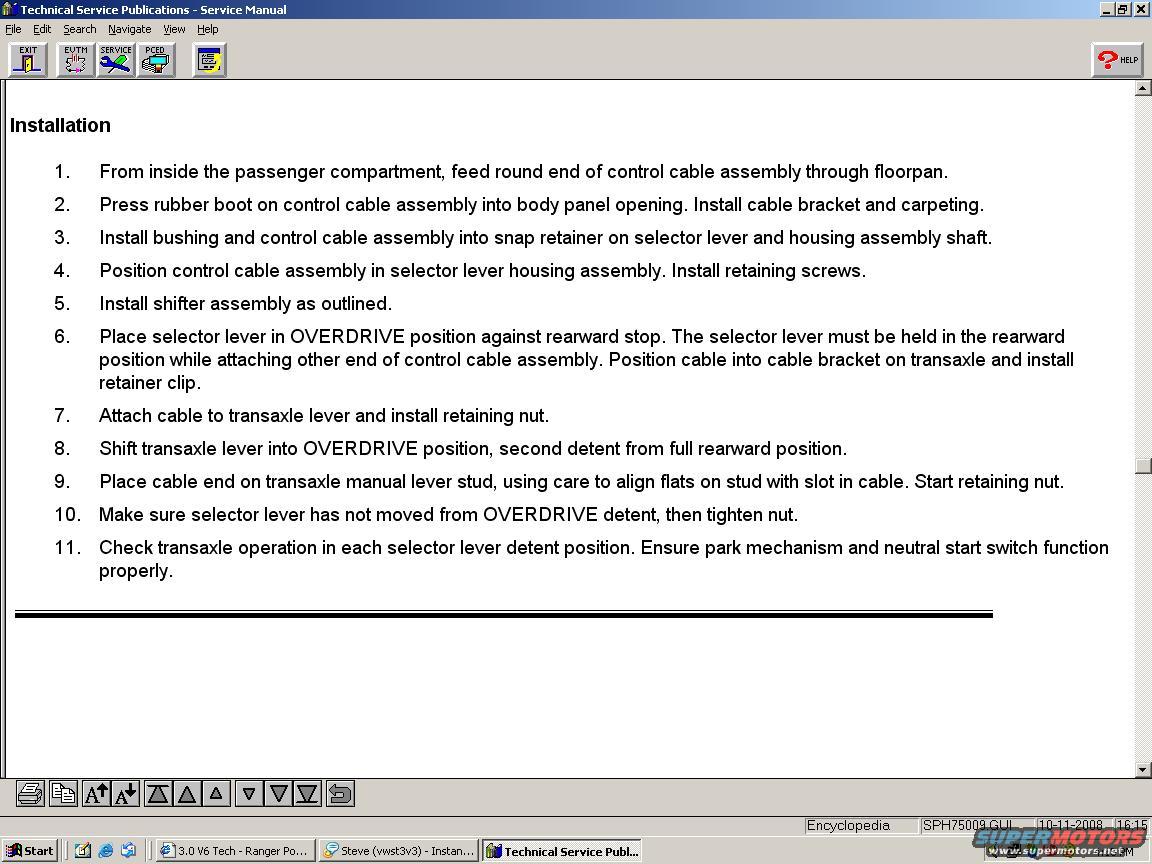

Service manual steps for installing the automatic transaxle shif…

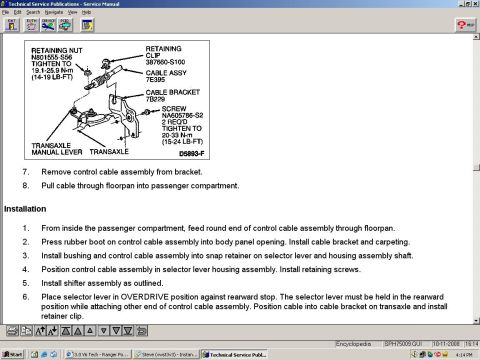

a... Buy m. s:r Mam. gem Elle m :2an Navigate Mew new i] wlxlql E " :J Installation 1. From inside the passenger compartment, feed round end of control cable assembly through oorpan. 2. Press rubber boot on control cable assembly into body panel opening. Install cable bracket and carpeting. 3. Install bushing and control cable assembly into snap retainer on selector lever and housing assembly shalt. 4. Position control cable assembly in selector lever housing assembly. Install retaining screws. 5. Install shier assembly as outlined. 6. Place selector lever in OVERDRIVE position against rearward stop. The selector lever must be held in the rearward position while attaching other end of control cable assembly. Position cable into cable bracket on transaxle and install retainer clip. 7. Attach cable to transaxle lever and install retaining nut. 8. Shitransaxle lever into OVERDRIVE position, second detent from full rearward position. 9. Place cable end on transaxle manual lever stud, using care to align ats on stud with slot in cable. Start retaining nut. J 10. Make sure selector lever has not moved from OVERDRIVE detent, then tighten nut. 11. Check transaxle operation in each selector lever detent position. Ensure park mechanism and neutral start switch function properly. Ll MIAA v VIE] 35....me HaauvsiechrRanqevPa @steve(vwsma).xnstan man...a.5mm..h.... iEnIJ/clopedia ISPH75UUBGUI nuriirznna news
