1994 Ford Bronco Negative Battery Cable Diagram - Ground Cable Lengths

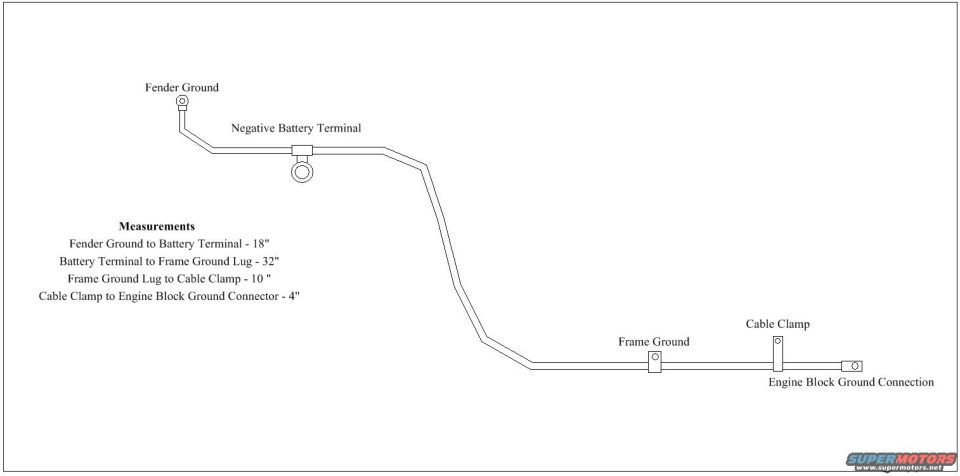

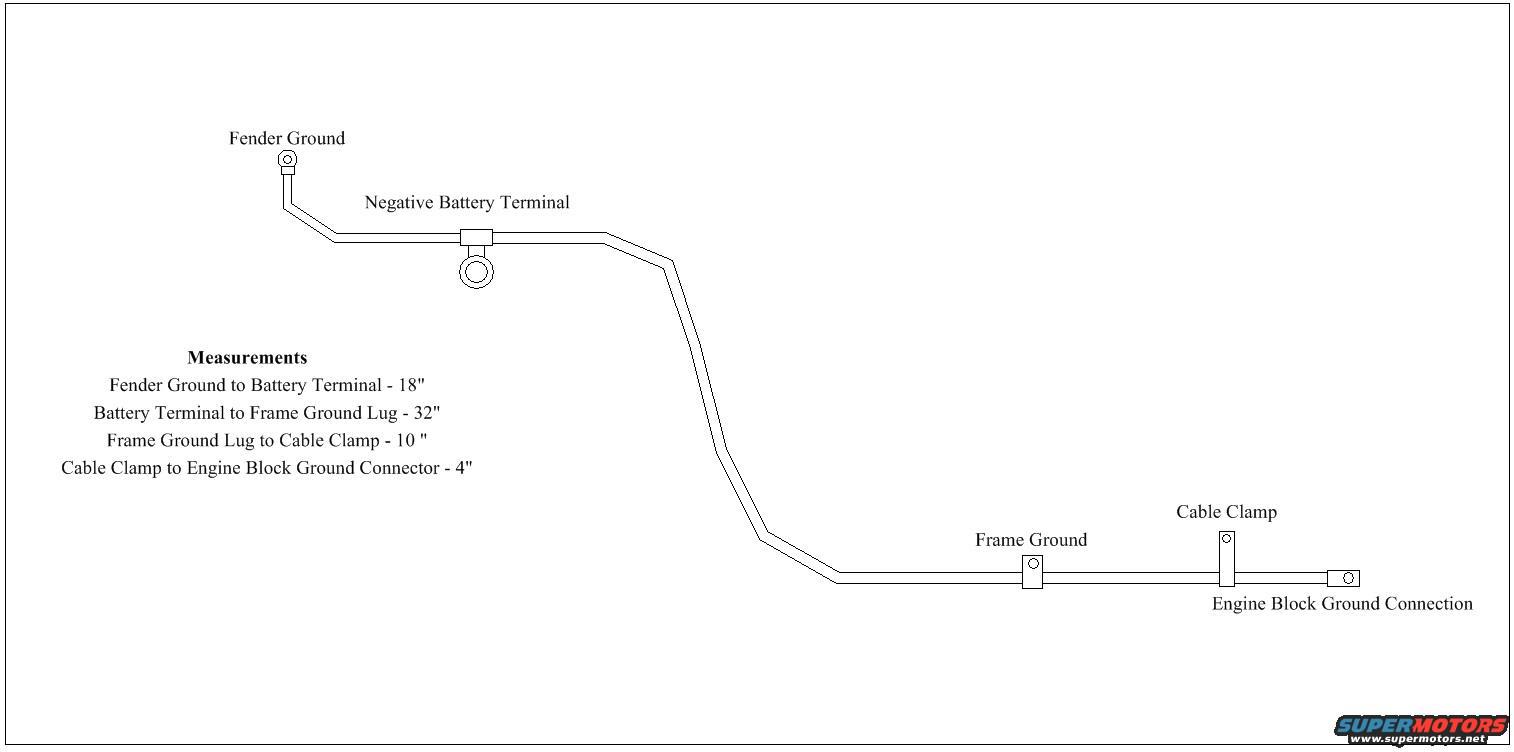

This document is a simple line-drawing schematic of a negative battery cable assembly, showing the full routing and connection points of the cable from one end to the other. Labeled points along the cable, in order, are: Fender Ground (a small ring terminal at one end), Negative Battery Terminal (a round clamp-style terminal), Frame Ground (a lug attached mid-run), Cable Clamp (a strap-style clamp near the far end), and Engine Block Ground Connection (the terminal at the opposite end). A "Measurements" list gives the cable segment lengths: Fender Ground to Battery Terminal is 18 inches, Battery Terminal to Frame Ground Lug is 32 inches, Frame Ground Lug to Cable Clamp is 10 inches, and Cable Clamp to Engine Block Ground Connector is 4 inches. A reader can use this diagram to fabricate or replace a negative battery cable with correct segment lengths and terminal placements, ensuring proper grounding to the fender, frame, and engine block. The document itself carries no year, make, model, or part number information; it was uploaded to a 1994 Ford Bronco gallery on SuperMotors.net, whose watermark appears in the lower right corner.
