1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

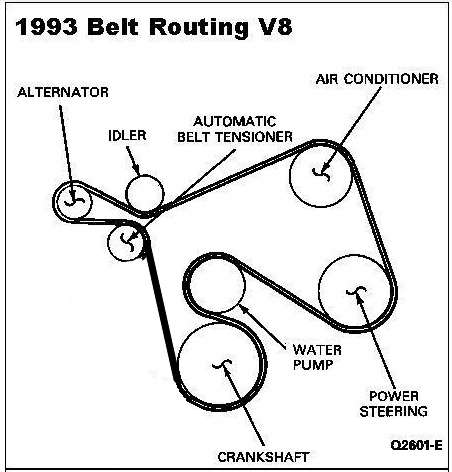

This document is a single-page serpentine (accessory drive) belt routing schematic titled "1993 Belt Routing V8." It shows a line drawing of the front of a V8 engine with the serpentine belt path traced around seven labeled pulleys: the alternator (upper left), an idler pulley, the automatic belt tensioner, the air conditioner compressor (upper right), the water pump (center), the power steering pump (right side), and the crankshaft pulley (bottom). Arrows connect each text label to its corresponding pulley in the diagram. The belt is drawn as a thick double line, allowing the reader to see which side of the belt (ribbed or smooth) contacts each pulley and the exact path the belt must follow when being installed or replaced. A figure identification code, Q2601-E, appears in the bottom-right corner, consistent with factory service literature illustration numbering. A reader can use this diagram to correctly route a new serpentine belt on a 1993 V8 engine, identify the location of the automatic tensioner used to relieve belt tension, and confirm the positions of all accessory drive components. No part numbers, torque specifications, or belt length data are included — the document is purely a routing/layout illustration.
