What oil viscosities are recommended for Ford gasoline engines by temperature?

The gasoline engine chart lists SAE 30, 20W-20, 20W-40, 20W-50, 10W-30, 10W-40, 10W, 5W-30, and 5W-20, each matched to the temperature range you expect before the next oil change (from about −20°F/−30°C up to 100°F/30°C).

What oil grades does the chart show for diesel engines?

The diesel engine chart shows SAE 30 for warmer temperatures and SAE 10W-30 for colder temperatures, across a range of roughly −20°F to 100°F (−30°C to 40°C).

What API service classification of oil should be used?

The document states that only oils designated for Service SG heavy duty detergent use should be used in the truck.

Can non-detergent or straight mineral oils be used?

No. The caution box states that non-detergent motor oils or straight mineral oils should not be used in your Ford gasoline engine.

What does the 'W' in 10W-40 mean and how does multigrade oil behave?

The W stands for winter. A 10W-40 oil acts like a 10 weight oil when the engine is cold, allowing easier cranking and quicker lubrication, and like a 40 weight oil at operating temperature, providing heavier lubrication with less foaming.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1978 Ford Bronco/ Photo supermotors.net/registry/media/1115772

Ford Truck Engine Oil Viscosity Chart - SAE Grades for Gas & Diesel (Fig. 90)

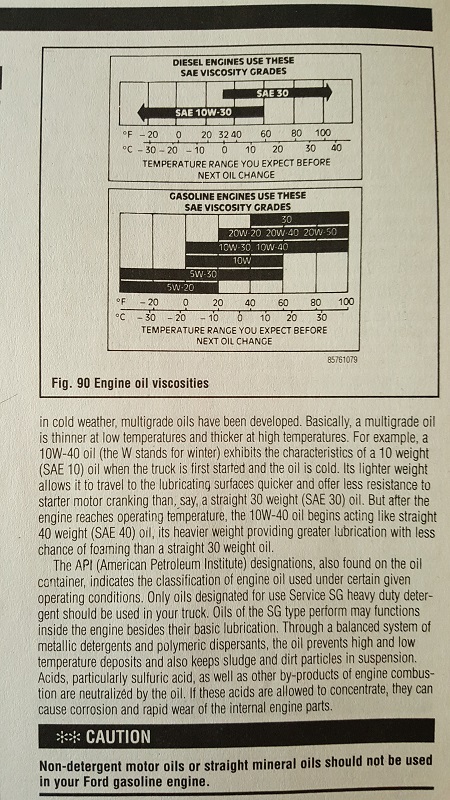

Service manual page on engine oil viscosities with SAE viscosity-grade temperature chart Fig. 90

‹ ›

Reference · 1978-1979 BroncoAll 51 manual pages

Ford Bronco Manual: Engine Compartment Service Points & Engine Oil Recommendations

Ford Truck Engine Oil Viscosity Chart - SAE Grades for Gas & Diesel (Fig. 90)

1979 Ford truck troubleshooting manual introduction, how-to-use, symbols/color codes and contents page

1979 Ford F-100-F-350 & Bronco Wiring Manual - Intro, Wire Color Codes, Contents

1979 Ford Bronco & F100-F350 Electrical & Vacuum Troubleshooting Manual Cover

Ford Bronco F-100-F-350 Cruise Control Tests - Servo, Amplifier & Road Test 37-01-8

'79 F-Series 4WD powertrain availability tables for F-250 and F-350 4x4 cabs, axles and ratios

'79 F-Series 4WD powertrain availability tables for F-250 and F-350 4x4 engines, axles and ratios

DuPont Ford paint chip chart for '76-'77 colors with Centari, Dulux and Lucite codes

1979 Ford F-Series 4WD color and trim chart of tu-tone combinations, interior trim and tape stripes

1978 Ford Truck Ball Joint Installation - Torque Specs & Tools (Shop Manual)

1978 Ford Truck Dana 44-9F Front Axle Ball Joint Installation - Shop Manual

51manual pages1978-1979 Ford Bronco More reference

Wiring diagram

Distributor vacuum advance and breaker plate diagram, Figure 1, with clockwise rotation label in English and S

Schematic

Brochure

Exploded parts

Early Ford Bronco VIN data plate with U150 model code, stamped on a faded maroon door edge

Spec plate

Battle Born Brakes Hydroboost Install Pg 4 - Bench Bleeding & Hose Routing Diagram

Service procedure

1978 Ford Bronco Custom Bumper Build - SolidWorks CAD Assembly Screenshot

Blueprint

1979 Ford Bronco & F100-F350 Vacuum Distribution Diagram - Hose Routing

Vacuum routing

Fuse chart

Torque spec

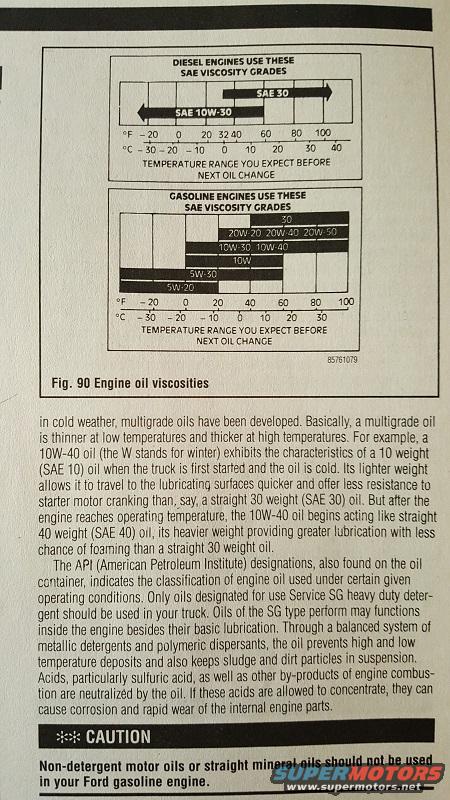

Scanned service manual page covering engine oil viscosities, with an SAE viscosity-grade versus temperature chart and prose on multigrade oils.

Part of 1978-1979 Ford Bronco Manual Pages

AI caption July 2017 · Photo 180 of 200

This scanned repair-manual page (labeled Fig. 90, "Engine oil viscosities") presents two temperature-based SAE viscosity grade charts for Ford trucks, one for diesel engines and one for gasoline engines. The diesel chart recommends SAE 30 for warmer temperatures and SAE 10W-30 for colder ranges, keyed to ambient temperature scales in both °F (−20 to 100) and °C (−30 to 40). The gasoline chart lists SAE 30, 20W-20, 20W-40, 20W-50, 10W-30, 10W-40, 10W, 5W-30, and 5W-20 grades matched to the temperature range expected before the next oil change. The accompanying text explains how multigrade oils work, behaving like a light (e.g., 10 weight) oil when cold for easier starting and quicker lubrication, then like a heavier (e.g., 40 weight) oil at operating temperature. It also explains API service designations, stating that only Service SG heavy-duty detergent oils should be used, describing how SG oils use metallic detergents and polymeric dispersants to prevent deposits, suspend sludge and dirt, and neutralize combustion acids such as sulfuric acid. A caution box warns that non-detergent motor oils or straight mineral oils must not be used in Ford gasoline engines. A reference number, 85761079, appears beneath the charts.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What oil viscosities are recommended for Ford gasoline engines by temperature?: The gasoline engine chart lists SAE 30, 20W-20, 20W-40, 20W-50, 10W-30, 10W-40, 10W, 5W-30, and 5W-20, each matched to the temperature range you expect before the next oil change (from about −20°F/−30°C up to 100°F/30°C).
What oil grades does the chart show for diesel engines?: The diesel engine chart shows SAE 30 for warmer temperatures and SAE 10W-30 for colder temperatures, across a range of roughly −20°F to 100°F (−30°C to 40°C).
What API service classification of oil should be used?: The document states that only oils designated for Service SG heavy duty detergent use should be used in the truck.
Can non-detergent or straight mineral oils be used?: No. The caution box states that non-detergent motor oils or straight mineral oils should not be used in your Ford gasoline engine.
What does the 'W' in 10W-40 mean and how does multigrade oil behave?: The W stands for winter. A 10W-40 oil acts like a 10 weight oil when the engine is cold, allowing easier cranking and quicker lubrication, and like a 40 weight oil at operating temperature, providing heavier lubrication with less foaming.
