Ford Bronco Clutch Lever Control Arm Blueprint - Hole Sizes & Dimensions

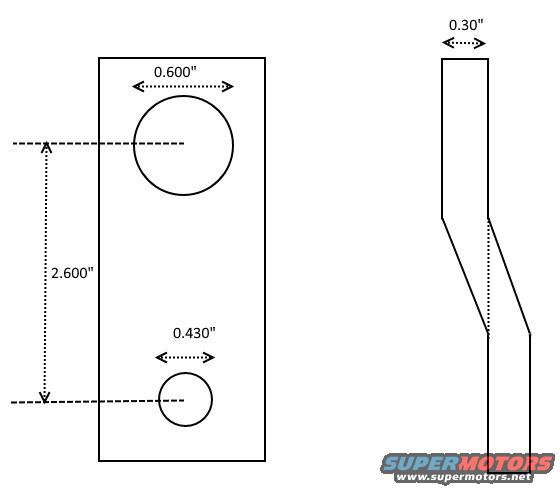

This document is a simple dimensioned blueprint/sketch of a small flat metal bracket, uploaded and labeled as a "Clutch Lever Control Arm" for a 1985 Ford Bronco. It shows two views. The front (face) view depicts a rectangular plate with two round holes: a larger hole at the top with a 0.600-inch diameter and a smaller hole near the bottom with a 0.430-inch diameter. The vertical center-to-center distance between the two holes is dimensioned at 2.600 inches. The side (edge) view shows the part is 0.30 inches thick and includes an angled offset or jog in the middle, meaning the upper and lower portions of the arm sit on different planes (a Z-offset), rather than the part being perfectly flat. No part numbers, material specifications, tolerances, year/model applicability, or textual notes appear on the drawing itself. A reader can use this document to fabricate or verify a replacement lever/arm: drill sizes for the two holes, hole spacing, stock thickness, and the fact that an offset bend is required. Applicability to the 1985 Ford Bronco is based solely on the uploader's filing, not on any markings in the drawing.
