Where is the fuse panel connector shown on this 1994 Bronco/F-Series diagram?

The fuse panel is identified as connector C207, located behind the instrument panel on the driver's side area of the illustration, near the hazard flasher and turn flasher.

What connector number is the cigar lighter on a 1994 Bronco/F-Series?

The cigar lighter is labeled C294, C295 in this behind-instrument-panel component location view.

Which components on this diagram are Bronco-only or F-Series-only?

C274 master tailgate window switch is marked (Bronco only), and C268 fuel tank selector switch is marked (F-Series only).

What is connector C232 on the 1994 Bronco/F-Series?

C232 is the Enable PSOM Programming Connector, shown behind the instrument panel.

Where are the hazard flasher and turn flasher located?

They are shown behind the instrument panel near the fuse panel (C207) on the right/driver side of the illustration.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1052731

1994 Ford Bronco/F-150 EVTM 151-15 Component Location Views - Behind Dash

1994 Bronco/F-Series component location view behind instrument panel 151-15 (2 of 2)

‹ ›

Ford 1994 Bronco/F-Series component location view (page 151-15) showing behind-instrument-panel harness connectors C205-C219, blower motor, premium sound amp, shift-lock actuator, fuse panel and multi-function switch.

AI caption March 2015 · Photo 244 of 413

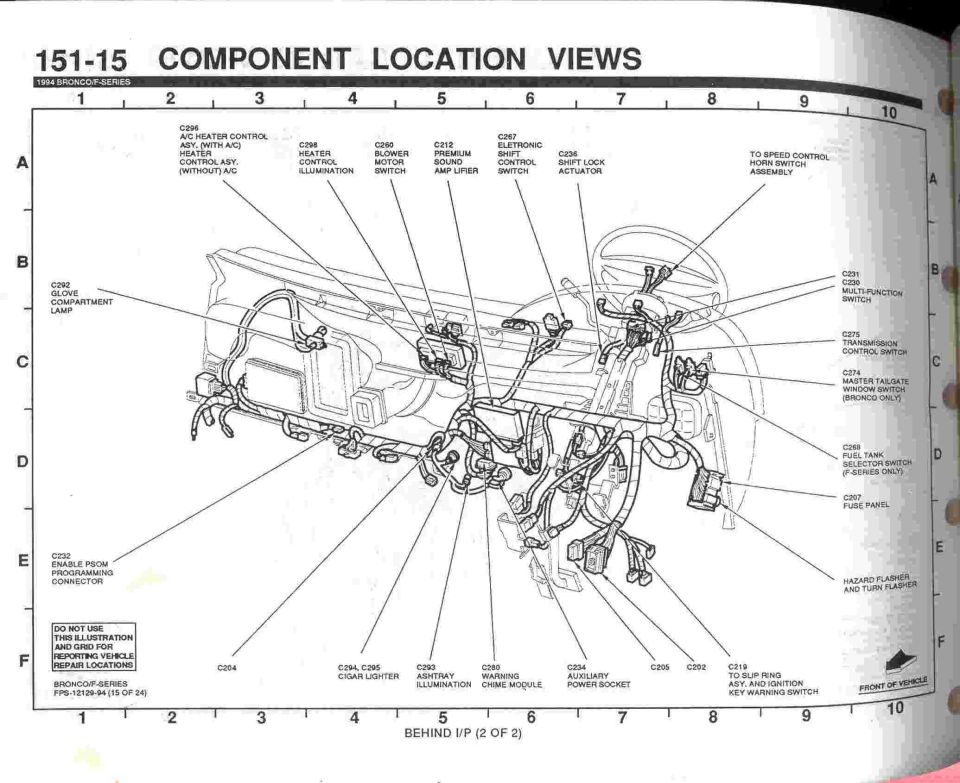

This is page 151-15, "Component Location Views," from the 1994 Ford Bronco/F-Series Electrical and Vacuum Troubleshooting Manual (EVTM), publication FPS-12129-94 (sheet 15 of 24). The illustration, titled "Behind I/P (2 of 2)," shows the second of two views of electrical components and connectors located behind the instrument panel (dash), laid out on an A–F / 1–10 grid. Labeled connectors and components include: C296 A/C heater control assembly (with and without A/C), C298 heater control illumination, C260 blower motor switch, C212 premium sound amplifier, C267 electronic shift control switch, C236 shift lock actuator, the speed control/horn switch assembly, C292 glove compartment lamp, C231/C230 multi-function switch, C275 transmission control switch, C274 master tailgate window switch (Bronco only), C268 fuel tank selector switch (F-Series only), C207 fuse panel, hazard flasher and turn flasher, C232 PSOM programming enable connector, C204, C294/C295 cigar lighter, C293 ashtray illumination, C280 warning chime module, C234 auxiliary power socket, C205, C202, and C219 (to slip ring assembly and ignition key warning switch). A note warns not to use the illustration and grid for reporting vehicle repair locations. Useful for locating dash-area connectors and modules during diagnosis.
