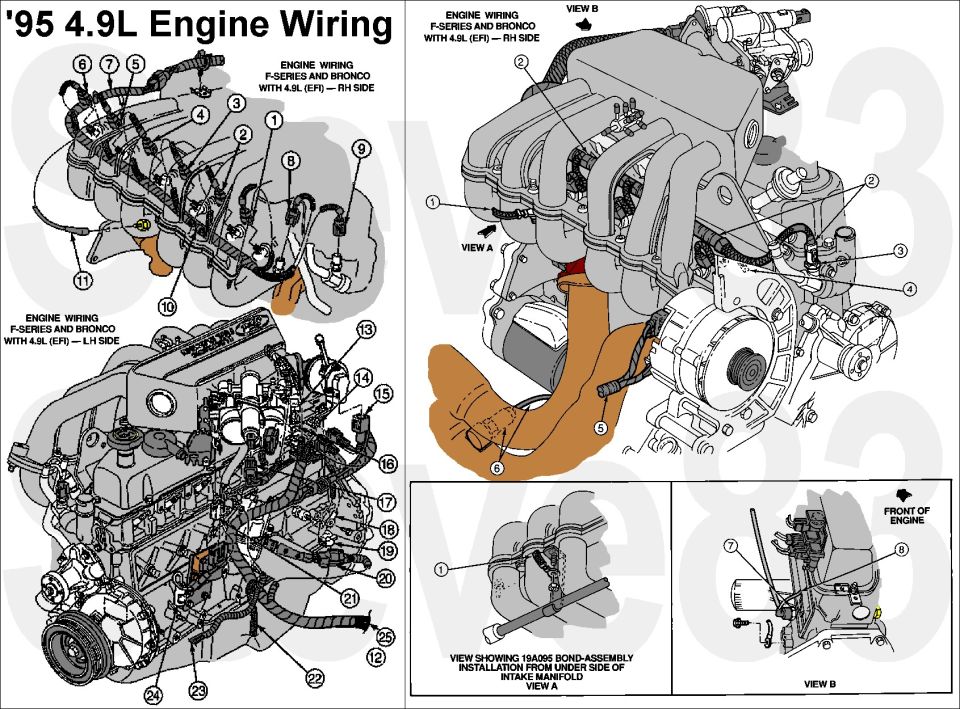

1995 4.9L engine wiring diagram for Ford F-Series and Bronco

'95 4.9L Engine Wiring
IF THE IMAGE IS TOO SMALL, click it.

1 Bond Assembly 19A095
2 Wiring Harness 9D930
3 -- To Engine Coolant Temperature Sensor (Part of 9D930)
4 -- To Intake Air Temperature Sensor (Part of 9D930)
5 Wiring Harness 14350
6 Hego Sensor 9F472
7 Oil Pressure Switch 9278
8 Wiring Harness 14289
________________________________
1 -- To Fuel Injector No. 1 (Part of 9D930)
2 -- To Fuel Injector No. 2 (Part of 9D930)
3 -- To Fuel Injector No. 3 (Part of 9D930)
4 -- To Fuel Injector No. 4 (Part of 9D930)
5 -- To Fuel Injector No. 5 (Part of 9D930)
6 -- To Fuel Injector No. 6 (Part of 9D930)
7 Wiring Assembly 9D930
8 -- To Intake Air Temperature Sensor (Part of 9D930)
9 -- To Engine Coolant Temperature Sensor (Part of 9D930)
10 -- To Canister Purge (Part of 9D930)
11 -- To Water Temperature Sensor (Part of 9D930)
12 Wiring Assembly 14289
13 -- To TPS (Part of 14289)
14 -- To TAB (Part of 14289)
15 -- To EGR Control (Part of 14289)
16 -- To TAD (Part of 14289)
17 -- To Idle Speed Control (Part of 14289)
18 -- To Ground (Part of 14289)
19 -- To Oil Pressure Sender (Part of 14289)
20 -- To Distributor Pigtail (Part of 14289)
21 -- To E Coil (Part of 14289)
22 -- To Knock Sensor (Part of 14289)
23 -- To A/C Clutch (Part of 14289)
24 -- To Radio Capacitor (Part of 14289)
25 -- To 12A581 Wiring Assembly (Part of 9D930)
