![HVAC Wiring '92-96 gasoline
IF THE IMAGE IS TOO SMALL, click it.
'93-back trucks use CFC12 (R12); '94-21 use HFC134a (R134a).
The (Wide-open throttle A/C; WAC) compressor clutch control relay (CA '95 & all '96 4.9L) is used to improve idle smoothness after engine start-up and to improve acceleration performance. The A/C is interrupted for approximately 5 seconds just after the engine is started.
Low-pressure switch [url=https://www.clipsandfasteners.com/Ford-Air-Conditioning-Harness-Connector-p/a17598.htm]pigtail[/url]](https://www.supermotors.net/getfile/1167220/fullsize/hvacwiring-9296.jpg)

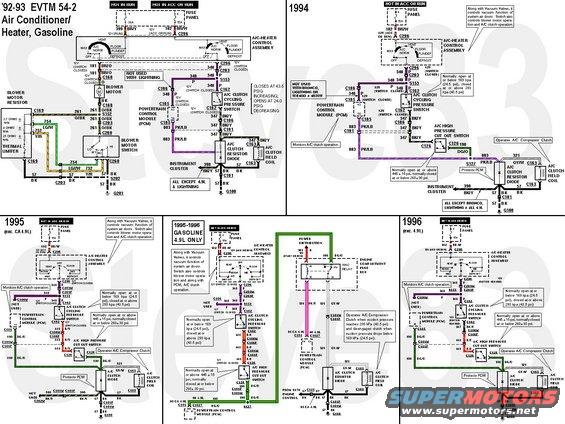

HVAC Wiring '92-96 gasoline
IF THE IMAGE IS TOO SMALL, click it.
'93-back trucks use CFC12 (R12); '94-21 use HFC134a (R134a).
The (Wide-open throttle A/C; WAC) compressor clutch control relay (CA '95 & all '96 4.9L) is used to improve idle smoothness after engine start-up and to improve acceleration performance. The A/C is interrupted for approximately 5 seconds just after the engine is started.
Low-pressure switch pigtail
