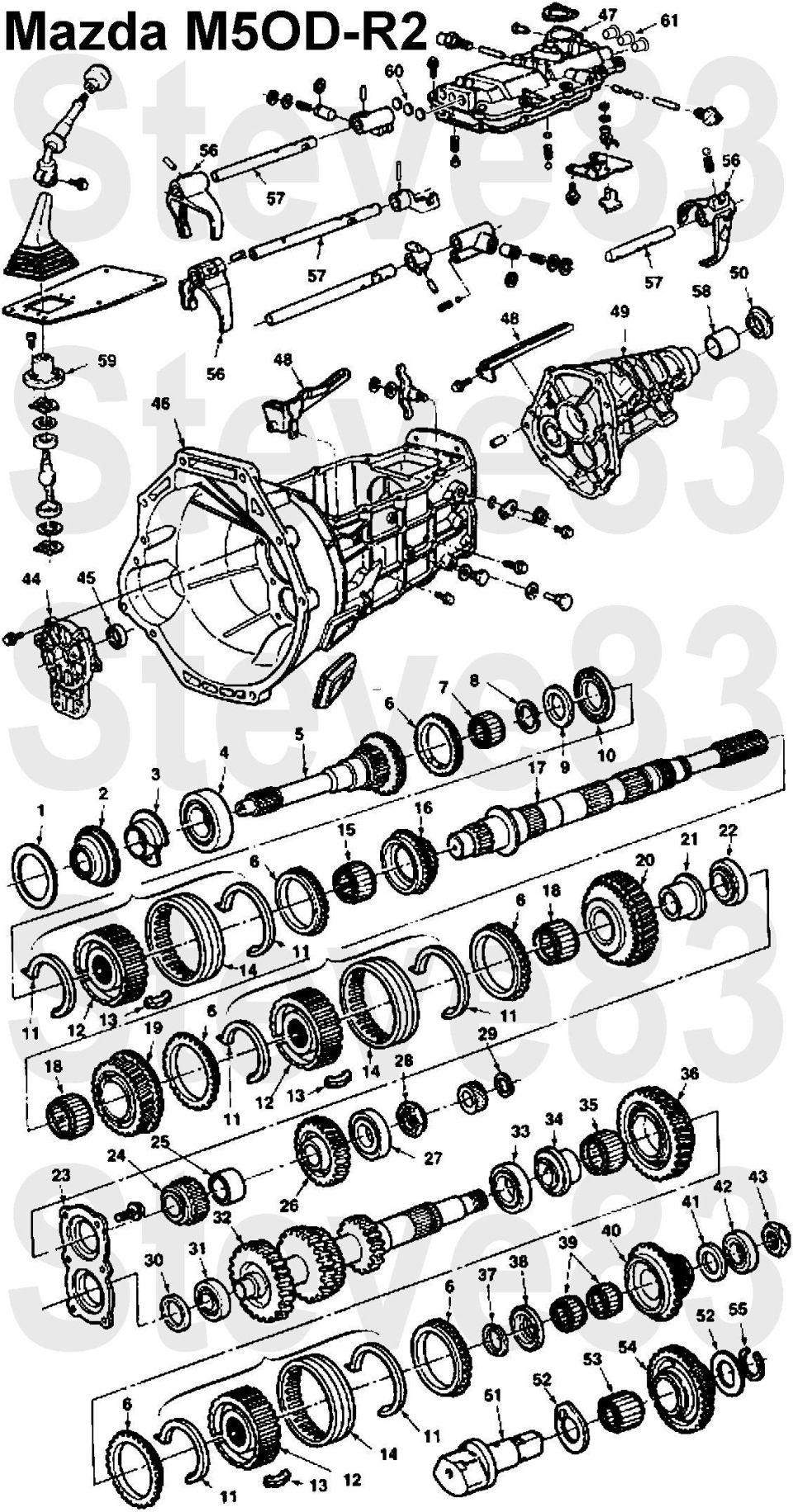

Mazda M5OD-R2 Exploded
IF THE IMAGE IS TOO SMALL, click it.
M5OD-R2 TRANSMISSION GEAR RATIOS (according to
this page):
1 - 3.90 : 1
2 - 2.25 : 1
3 - 1.49 : 1
4 - 1.00 : 1
5 - 0.80 : 1
R - 3.39 : 1
TRANS code: M
.
.
.
.
Known problems include:
leaks from shift rail plugs #60 & 61
sensitivity to fluid level & quality
weak shifter susceptible to wear
To remove the shifter, remove the 17mm nut from the passenger side of the stud, and install it on the driver's side. Tighten it until it loosens, then push the stud out to the driver's side. Remove the shifter.
http://bbscomp.com/george/manual.pdf
