Carling-Style Rocker Switch Wiring Diagram - Generator & House Battery Pinouts

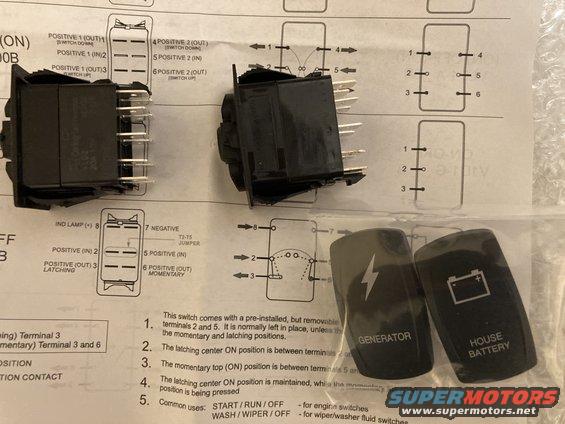

This document is an instruction/wiring sheet for Carling-style rocker (Contura-type) switches, photographed with two physical switch bodies and two laser-etched rocker actuator covers labeled "GENERATOR" (lightning bolt icon) and "HOUSE BATTERY" (battery icon). The sheet shows terminal pinout diagrams for a double-pole ON/(ON) switch: terminals 1–3 for pole 1 (Positive 1 OUT switch down, IN, OUT switch up) and terminals 4–6 for pole 2 (Positive 2 OUT switch down, IN, OUT switch up). A second diagram covers an illuminated momentary/latching variant: terminal 8 indicator lamp (+), terminal 7 negative, terminal 2 positive in, terminal 3 positive out (latching), terminal 5 positive in (via a T2-T5 jumper), and terminal 6 positive out (momentary). Numbered notes explain that the switch ships with a pre-installed removable jumper between terminals 2 and 5, that the latching center ON position is between terminals 2 and (cut off), the momentary top ON is between terminals 5 and (cut off), and that the latching ON is maintained while the momentary position is pressed. Common uses listed are START/RUN/OFF for engine switches and WASH/WIPER/OFF for wiper/washer fluid switches. The document is generic to the switches, not specific to any vehicle.
